owners manual Seat Altea

owners manual Seat Altea - year of production: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 - Seat Altea owners manual EN

Document: pdf (4.4 MB) 302 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Seat Altea, year of production 2004 - 2015:

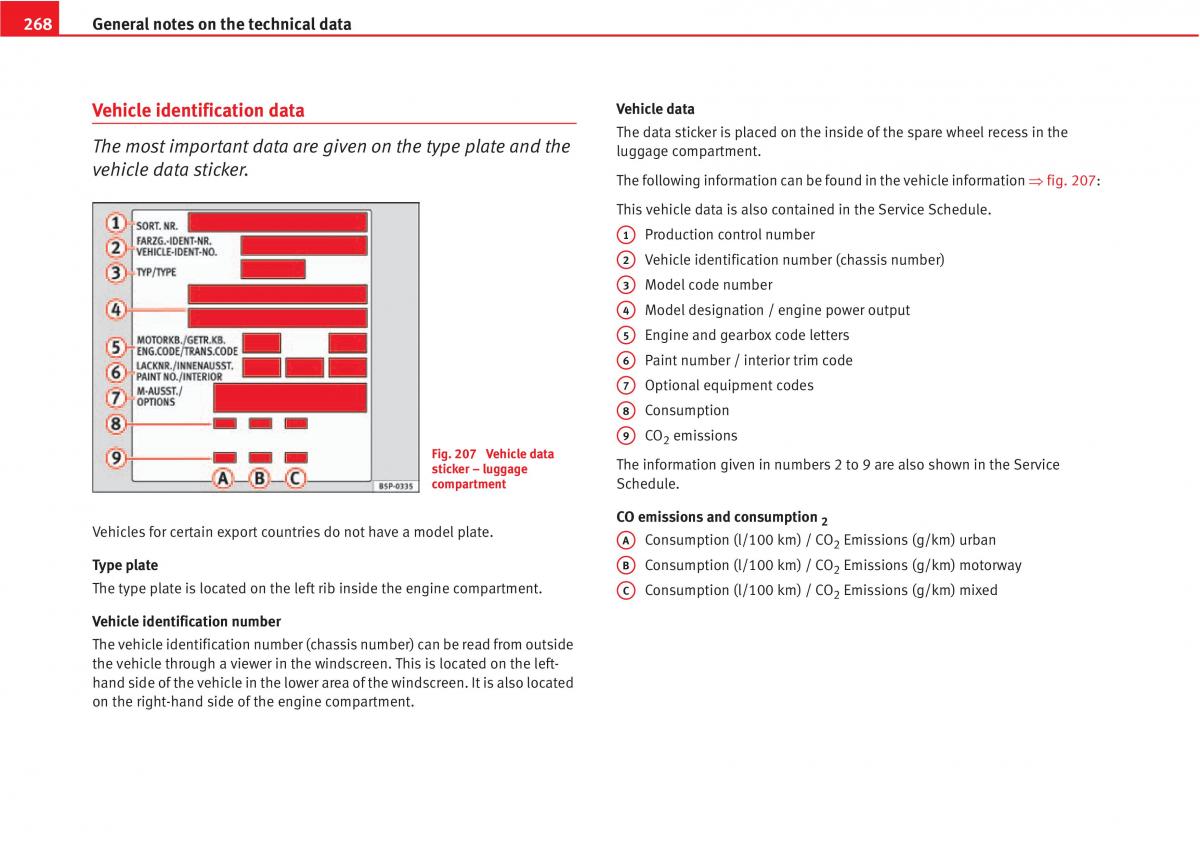

268 General notes on the technical data Vehicle identification data Vehicle data The most important data are given on the type plate and the The data sticker is placed on the inside of the spare wheel recess in the luggage compartment. vehicle data sticker. The following information can be found in the vehicle information fig. 207: This vehicle data is also contained in the Service Schedule. 1 Production control number A 2 Vehicle identification number (chassis number) A 3 AModel code number 4 Model designation / engine power output A 5 Engine and gearbox code letters A 6 APaint number / interior trim code 7 Optional equipment codes A 8 Consumption A 9 ACO emissions 2 Fig. 207 Vehicle data The information given in numbers 2 to 9 are also shown in the Service sticker – luggage compartment Schedule. CO emissions and consumption 2 Vehicles for certain export countries do not have a model plate. A Consumption (l/100 km) / CO Emissions (g/km) urban A 2 B Type plate AConsumption (l/100 km) / CO Emissions (g/km) motorway 2 The type plate is located on the left rib inside the engine compartment. C Consumption (l/100 km) / CO Emissions (g/km) mixed A 2 Vehicle identification number The vehicle identification number (chassis number) can be read from outside the vehicle through a viewer in the windscreen. This is located on the left- hand side of the vehicle in the lower area of the windscreen. It is also located on the right-hand side of the engine compartment.

Download PDF

Click here to download a pdf file with an instruction manual for Seat Altea
year of production from: 2004

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Seat Altea owners manual
pages 267 - 273

Seat Altea owners manual
page 270 / 302
