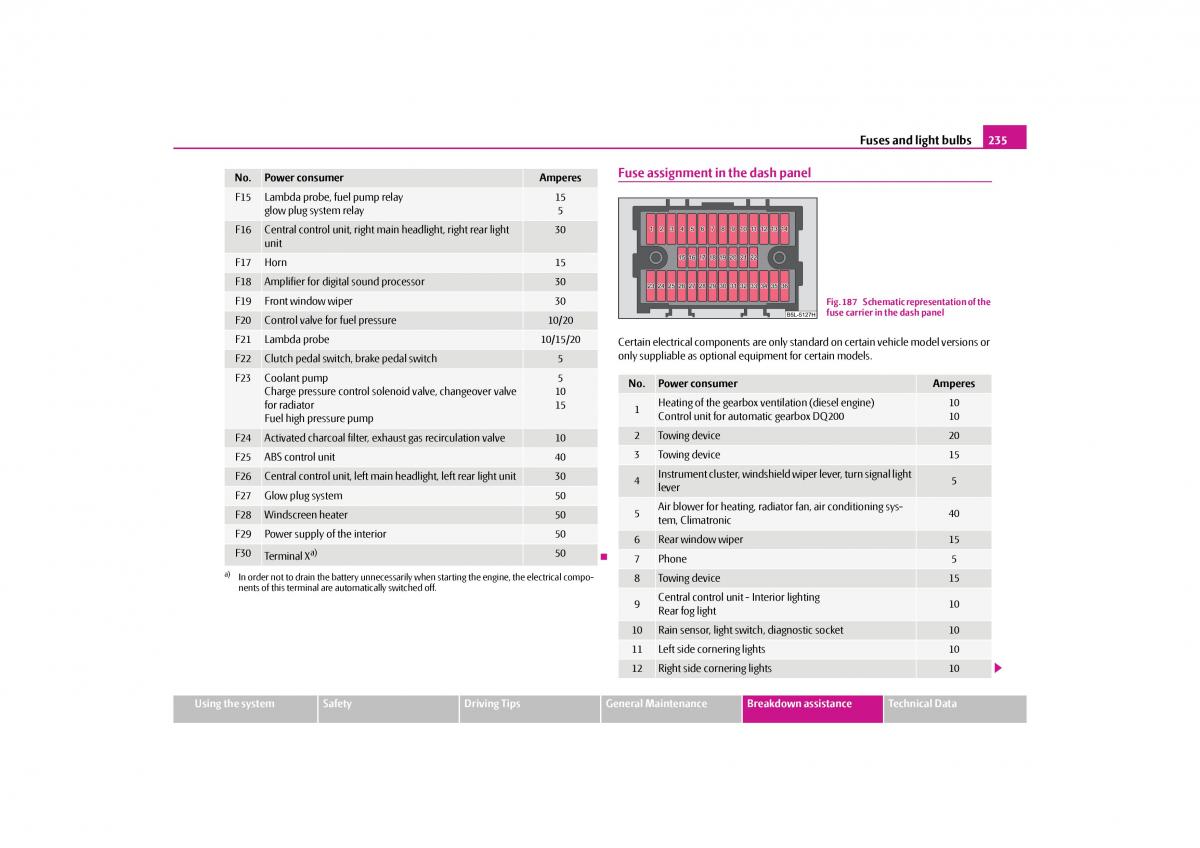

s2ug.6.book Page 235 Friday, April 9, 2010 2:24 PM
Fuses and light bulbs 235
No. Power consumer Amperes Fuse assignment in the dash panel
F15 Lambda probe, fuel pump relay 15
glow plug system relay 5
F16 Central control unit, right main headlight, right rear light 30
unit
F17 Horn 15
F18 Amplifier for digital sound processor 30
F19 Front window wiper 30 Fig. 187 Schematic representation of the
F20 Control valve for fuel pressure 10/20 fuse carrier in the dash panel
F21 Lambda probe 10/15/20 Certain electrical components are only stan dard on certain vehicle model versions or
F22 Clutch pedal switch, brake pedal switch 5 only suppliable as optional equipment for certain models.
F23 Coolant pump 5 No. Power consumer Amperes
Charge pressure control solenoid valve, changeover valve 10
for radiator 15 1 Heating of the gearbox ventilation (diesel engine) 10
Fuel high pressure pump Control unit for automatic gearbox DQ200 10
F24 Activated charcoal filter, exhaust gas recirculation valve10 2 Towing device 20
F25 ABS control unit 40 3 Towing device 15
F26 Central control unit, left main headlight, left rear light unit30 4 Instrument cluster, windshield wiper lever, turn signal light 5
F27 Glow plug system 50 lever
F28 Windscreen heater 50 5 Air blower for heating, radiator fan, air conditioning sys-40
tem, Climatronic
F29 Power supply of the interior 50 6 Rear window wiper 15
F30 Terminal Xa) 50 7 Phone 5
a)In order not to drain the battery unnecessarily when starting the engine, the electrical compo-8Towing device 15
nents of this terminal are automatically switched off.
9 Central control unit - Interior lighting 10
Rear fog light
10 Rain sensor, light switch, diagnostic socket 10
11 Left side cornering lights 10
12 Right side cornering lights 10
