text version of content this owner's manual page from owners manual to the vehicle Skoda Yeti, year of production 2009:

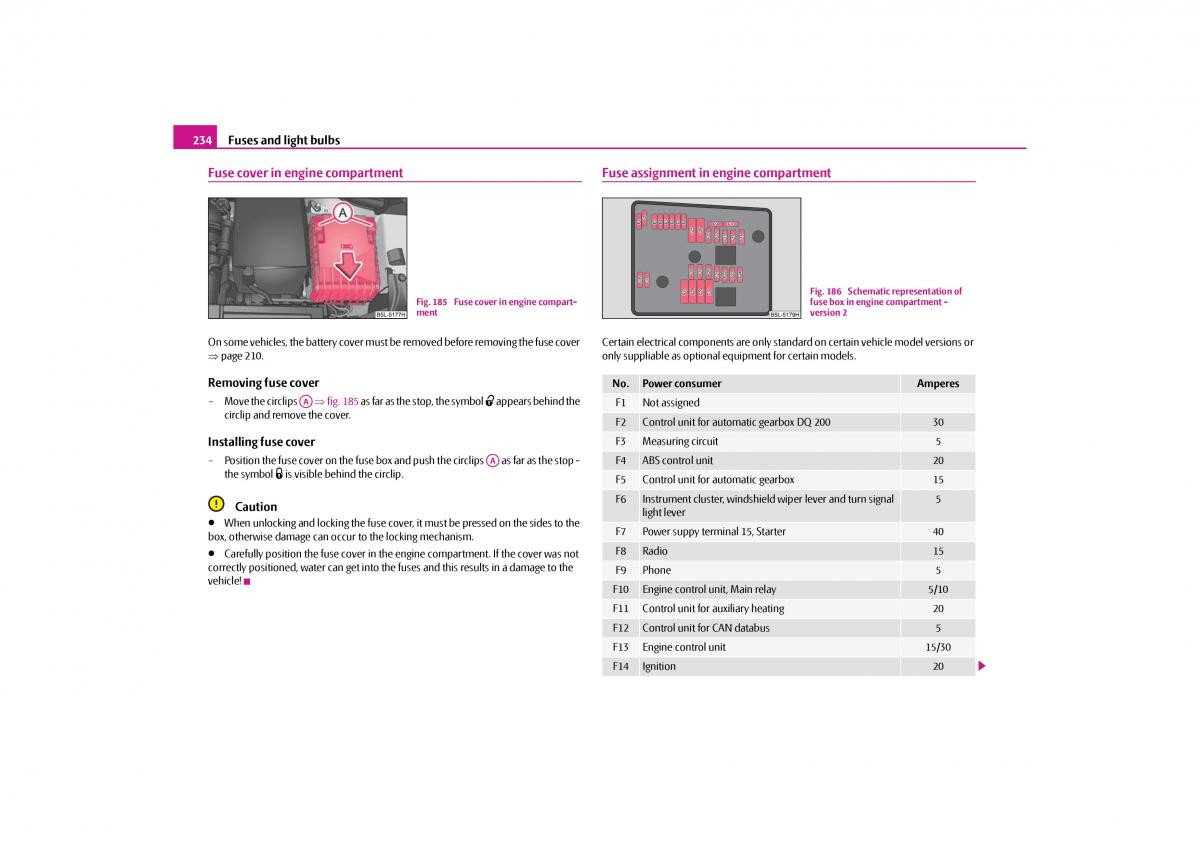

s2ug.6.book Page 234 Friday, April 9, 2010 2:24 PM 234 Fuses and light bulbs Fuse cover in engine compartment Fuse assignment in engine compartment Fig. 186 Schematic representation of Fig. 185 Fuse cover in engine compart- fuse box in engine compartment - ment version 2 On some vehicles, the battery cover must be removed before removing the fuse cover Certain electrical components are only stan dard on certain vehicle model versions or page210. only suppliable as optional equipment for certain models. Removing fuse cover No.Power consumer Amperes – Move the circlips A A  fig. 185 as far as the stop, the symbol  appears behind the F1Not assigned circlip and remove the cover. F2 Control unit for automatic gearbox DQ 20030 Installing fuse cover F3 Measuring circuit 5 – Position the fuse cover on the fuse box and push the circlips A A as far as the stop - F4ABS control unit20 the symbol  is visible behind the circlip.F5Control unit for automatic gearbox15 Caution F6 Instrument cluster, windshield wiper lever and turn signal 5  When unlocking and locking the fuse cover, it must be pressed on the sides to the light lever box, otherwise damage can occur to the locking mechanism.F7Power suppy terminal 15, Starter40  Carefully position the fuse cover in the engine compartment. If the cover was not F8Radio15 correctly positioned, water can get into the fuses and this results in a damage to the F9Phone5 vehicle! F10Engine control unit, Main relay5/10 F11Control unit for auxiliary heating20 F12Control unit for CAN databus 5 F13Engine control unit 15/30 F14Ignition 20
