text version of content this owner's manual page from owners manual to the vehicle Skoda Yeti, year of production 2009:

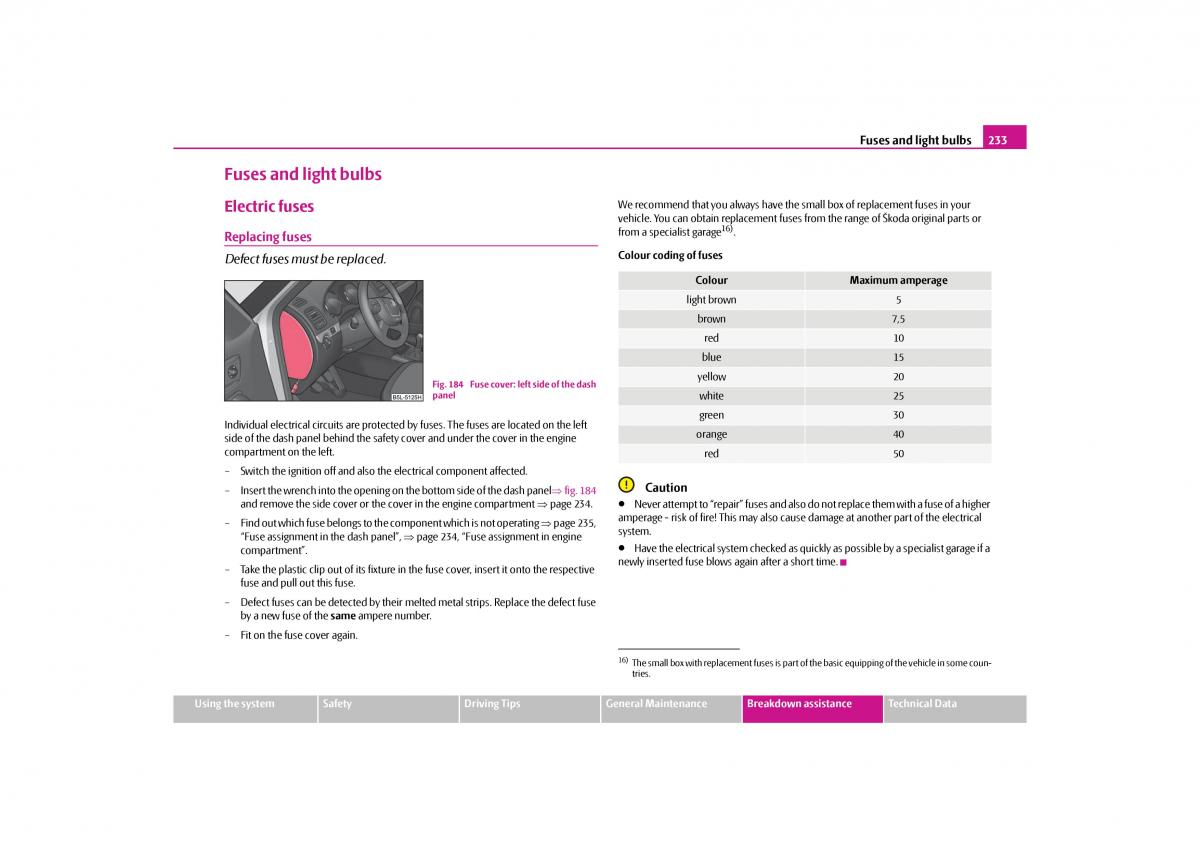

s2ug.6.book Page 233 Friday, April 9, 2010 2:24 PM Fuses and light bulbs 233 Fuses and light bulbs Electric fuses We recommend that you always have the small box of replacement fuses in your vehicle. You can obtain replacement fuses from the range of Škoda original parts or 16). Replacing fuses from a specialist garage Defect fuses must be replaced. Colour coding of fuses Colour Maximum amperage light brown 5 brown 7,5 red 10 blue 15 Fig. 184 Fuse cover: left side of the dash yellow 20 panel white 25 green 30 Individual electrical circuits are protected by fuses. The fuses are located on the left side of the dash panel behind the safety cover and under the cover in the engine orange 40 compartment on the left. red 50 – Switch the ignition off and also the electrical component affected. – Insert the wrench into the opening on the bottom side of the dash panelfig.184 Caution and remove the side cover or the cover in the engine compartment  page234. Never attempt to “repair” fuses and also do not replace them with a fuse of a higher – Find out which fuse belongs to th e component which is not operating  page 235, amperage - risk of fire! This may also cause damage at another part of the electrical “Fuse assignment in the dash panel”, page 234, “Fuse assignment in engine system. compartment”.  Have the electrical system checked as quickly as possible by a specialist garage if a – Take the plastic clip out of its fixture in the fuse cover, insert it onto the respective newly inserted fuse blows again after a short time. fuse and pull out this fuse. – Defect fuses can be detected by their melted metal strips. Replace the defect fuse by a new fuse of the same ampere number. – Fit on the fuse cover again. 16) The small box with replacement fuses is part of the basic equipping of the vehicle in some coun- tries. Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
