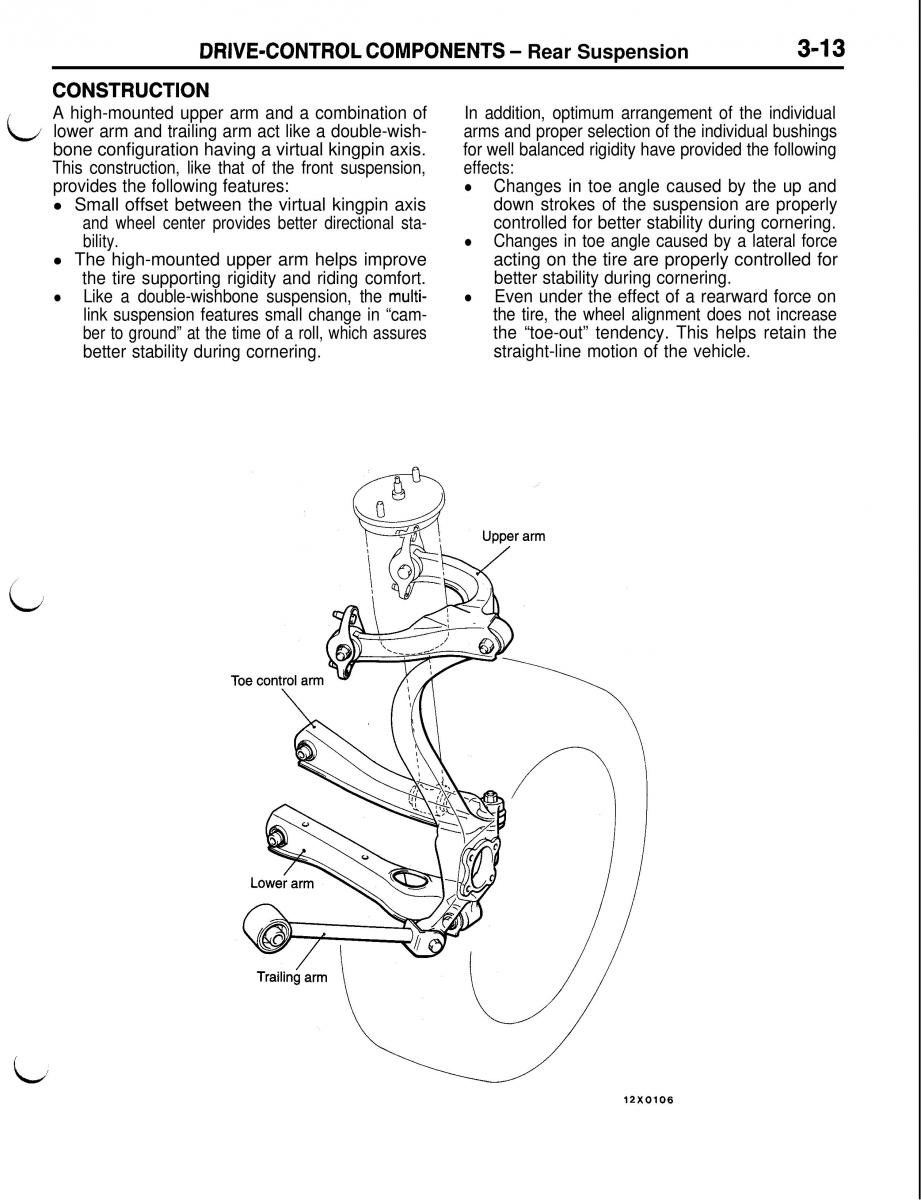

DRIVE-CONTROL COMPONENTS - Rear Suspension 343 CONSTRUCTION A high-mounted upper arm and a combination ofIn addition, optimum arrangement of the individual ’ lower arm and trailing arm act like a double-wish-arms and proper selection of the individual bushings ibone configuration having a virtual kingpin axis. for well balanced rigidity have provided the following This construction, like that of the front suspension,effects: provides the following features: l Changes in toe angle caused by the up and down strokes of the suspension are properly l Small offset between the virtual kingpin axis controlled for better stability during cornering. and wheel center provides better directional sta- bility. l Changes in toe angle caused by a lateral force l The high-mounted upper arm helps improveacting on the tire are properly controlled for better stability during cornering. the tire supporting rigidity and riding comfort. l Like a double-wishbone suspension, themulti- l Even under the effect of a rearward force on the tire, the wheel alignment does not increase link suspension features small change in “cam- the “toe-out” tendency. This helps retain the ber to ground” at the time of a roll, which assures better stability during cornering. straight-line motion of the vehicle. 12X0106
