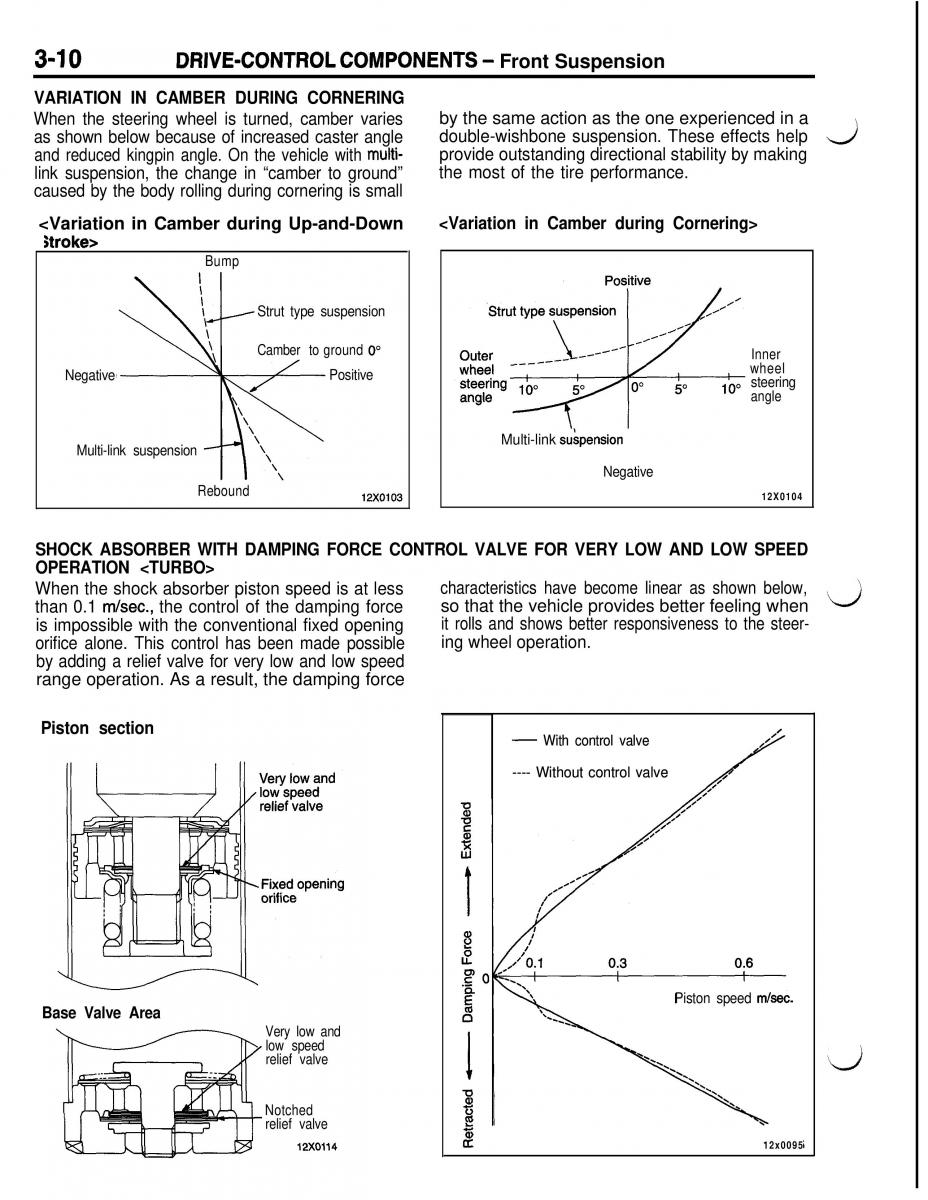

DRIVE-CONTROL COMPONENTS - Front Suspension 340 VARIATION IN CAMBER DURING CORNERING by the same action as the one experienced in a When the steering wheel is turned, camber varies double-wishbone suspension. These effects help as shown below because of increased caster angle provide outstanding directional stability by making and reduced kingpin angle. On the vehicle withmulti- the most of the tire performance. link suspension, the change in “camber to ground” caused by the body rolling during cornering is small Bump Strut type suspension Camber toground0” Inner Negative Positive wheel steering angle Multi-link suspension - Multi-link subpension Negative Rebound 12x0103 12X0104 SHOCK ABSORBER WITH DAMPING FORCE CONTROL VALVE FOR VERY LOW AND LOW SPEED OPERATION characteristics have become linear as shown below, When the shock absorber piston speed is at less so that the vehicle provides better feeling when than 0.1 m/set., the control of the damping force it rolls and shows better responsiveness to the steer- is impossible with the conventional fixed opening ing wheel operation. orifice alone. This control has been made possible by adding a relief valve for very low and low speed range operation. As a result, the damping force Piston section -- With control valve With control valve ---- Without control valve---- Without control valve I Base Valve Area Piston speed m/set. Very low and low speed relief valve Notched relief valve 2 12X0114 8 12x0095
