text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander PHEV, year of production 2012:

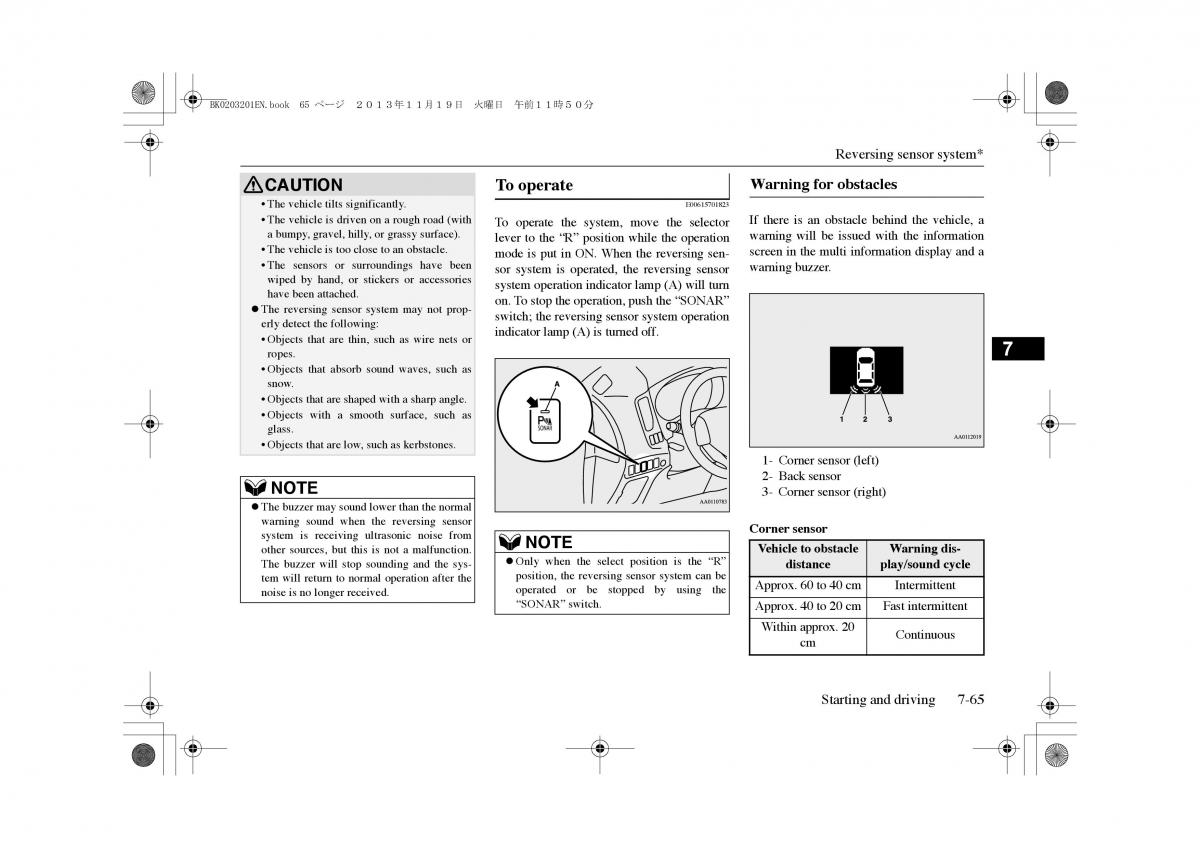

B０0203201E３.book 65 ページ㸰㸮㸯㸱年㸯㸯月㸯９日　火曜日　午前㸯㸯時５㸮分 Reversing sensor system* CAUTION To operate Warning for obstacles • The vehicle tilts significantly. E00615701823 •The vehicle is driven on a rough road (with To operate the system, move the selector If there is an obstacle behind the vehicle, a a bumpy, gravel, hilly, or grassy surface). lever to the “R” position while the operation warning will be issued with the information •The vehicle is too close to an obstacle. mode is put in ON. When the reversing sen- screen in the multi information display and a •The sensors or surroundings have been sor system is operated, the reversing sensor warning buzzer. wiped by hand, or stickers or accessories system operation indicator lamp (A) will turn have been attached. on. To stop the operation, push the “SONAR” zThe reversing sensor system may not prop- switch; the reversing sensor system operation erly detect the following: indicator lamp (A) is turned off. •Objects that are thin, such as wire nets or 7 ropes. •Objects that absorb sound waves, such as snow. •Objects that are shaped with a sharp angle. •Objects with a smooth surface, such as glass. •Objects that are low, such as kerbstones. 1- Corner sensor (left) NOTE 2- Back sensor 3- Corner sensor (right) zThe buzzer may sound lower than the normal warning sound when the reversing sensor Corner sensor system is receiving ultrasonic noise from NOTE Vehicle to obstacle Warning dis- other sources, but this is not a malfunction. zOnly when the select position is the “R” The buzzer will stop sounding and the sys- position, the reversing sensor system can be distance play/sound cycle tem will return to normal operation after the operated or be stopped by using the Approx. 60 to 40 cm Intermittent noise is no longer received. “SONAR” switch. Approx. 40 to 20 cm Fast intermittent Within approx. 20 Continuous cm Starting and driving 7-65
