text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander PHEV, year of production 2012:

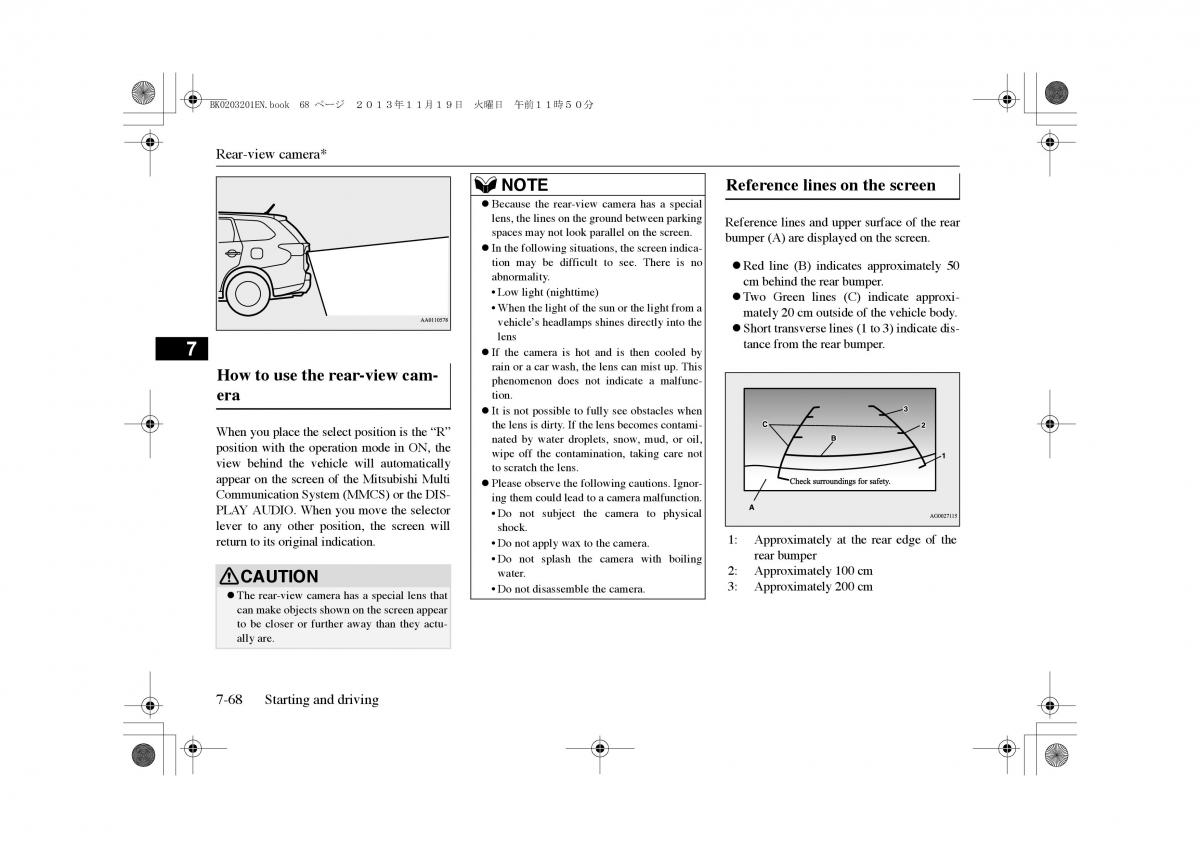

B０0203201E３.book 68 ページ㸰㸮㸯㸱年㸯㸯月㸯９日　火曜日　午前㸯㸯時５㸮分 Rear-view camera* NOTE Reference lines on the screen zBecause the rear-view camera has a special lens, the lines on the ground between parkingReference lines and upper surface of the rear spaces may not look parallel on the screen.bumper (A) are displayed on the screen. zIn the following situations, the screen indica- tion may be difficult to see. There is nozRed line (B) indicates approximately 50 abnormality. cm behind the rear bumper. •Low light (nighttime) zTwo Green lines (C) indicate approxi- •When the light of the sun or the light from amately 20 cm outside of the vehicle body. vehicle’s headlamps shines directly into thezShort transverse lines (1 to 3) indicate dis- 7 lens tance from the rear bumper. zIf the camera is hot and is then cooled by How to use the rear-view cam- rain or a car wash, the lens can mist up. This phenomenon does not ndii cate a malfunc- era tion. zIt is not possible to fully see obstacles when When you place the select position is the “R”the lens is dirty. If the lens becomes contami- position with the operation mode in ON, thenated by water droplets, snow, mud, or oil, view behind the vehicle will automaticallywipe off the contamination, taking care not appear on the screen of the Mitsubishi Multito scratch the lens. Communication System (MMCS) or the DIS-zPlease observe the following cautions. Ignor- PLAY AUDIO. When you move the selectoring them could lead to a camera malfunction. lever to any other position, the screen will•Do not subject the camera to physical return to its original indication. shock. 1: Approximately at the rear edge of the •Do not apply wax to the camera. rear bumper •Do not splash the camera with boiling2:Approximately 100 cm CAUTION water. 3: Approximately 200 cm zThe rear-view camera has a special lens that•Do not disassemble the camera. can make objects shown on the screen appear to be closer or further away than they actu- ally are. 7-68 Starting and driving
