text version of content this owner's manual page from owners manual to the vehicle Subaru Outback, year of production 2014:

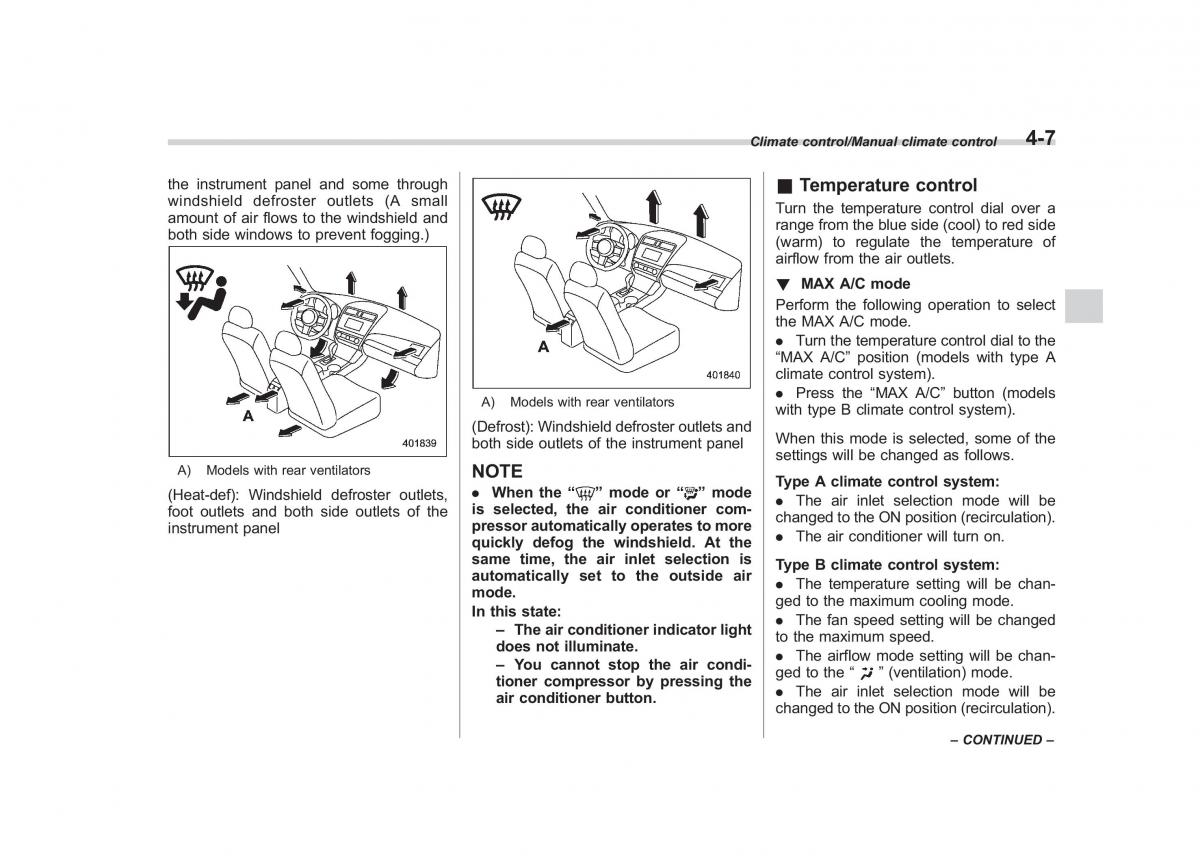

Climate control/Manual climate control4-7 the instrument panel and some through &Temperature control windshield defroster outlets (A small Turn the temperature control dial over a amount of air flows to the windshield and range from the blue side (cool) to red side both side windows to prevent fogging.) (warm) to regulate the temperature of airflow from the air outlets. ! MAXA/Cmode Perform the following operation to select the MAX A/C mode. . Turn the temperature control dial to the “MAX A/C” position (models with type A climate control system). A) Models with rear ventilators. Press the “MAX A/C” button (models with type B climate control system). (Defrost): Windshield defroster outlets and both side outlets of the instrument panelWhen this mode is selected, some of the settings will be changed as follows. A) Models with rear ventilatorsNOTE Type A climate control system: (Heat-def): Windshield defroster outlets,. When the “” mode or “ ” mode. The air inlet selection mode will be foot outlets and both side outlets of theis selected, the air conditioner com-changedtotheONposition(recirculation). instrument panel pressorautomatically operates to more. The air conditioner will turn on. quickly defog the windshield. At the same time, the air inlet selection isType B climate control system: automatically set to the outside air. The temperature setting will be chan- mode. ged to the maximum cooling mode. In this state: . The fan speed setting will be changed – Theairconditioner indicator lightto the maximum speed. does not illuminate. . The airflow mode setting will be chan- – You cannot stop the air condi-ged to the “” (ventilation) mode. tioner compressor by pressing the. The air inlet selection mode will be air conditioner button. changedtotheONposition(recirculation). – CONTINUED –
