text version of content this owner's manual page from owners manual to the vehicle Subaru Outback, year of production 2014:

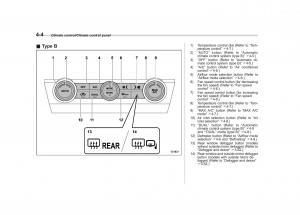

4-4 Climate control/Climate control panel &TypeB 1)Temperature control dial (Refer to “Tem- perature control” F4-7.) 2)“AUTO” button (Refer to“Automatic climate control system (type B)” F4-5.) 3)“OFF” button (Refer to “Automatic cli- mate control system (type B)” F4-5.) 4)“A/C” button (Refer to “Air conditioner control” F4-8.) 5)Airflow mode selection button (Refer to “Airflow mode selection” F4-6.) 6)Fan speed control button (for decreasing the fan speed) (Refer to “Fan speed control” F4-8.) 7)Fan speed control button (for increasing the fan speed) (Refer to “Fan speed control” F4-8.) 8)Temperature control dial (Refer to “Tem- perature control” F4-7.) 9)“MAX A/C” button (Refer to “MAX A/C mode” F4-7.) 10) Air inlet selection button (Refer to “Air inlet selection” F4-8.) 11)“DUAL” button (Refer to“Automatic climate control system (type B)” F4-5 and ““DUAL” mode (type B)” F4-8.) 12) Defroster button (Refer to “Airflow mode selection” F4-6 and “Defrosting” F4-9.) 13) Rear window defogger button (models without outside mirror defogger) (Refer to “Defogger and deicer” F3-52.) 14) Rearwindowandoutsidemirrordefogger button (models with outside mirror de- fogger) (Refer to “Defogger and deicer” F3-52.)
