text version of content this owner's manual page from owners manual to the vehicle Mazda CX-5, year of production 2012 - 2017:

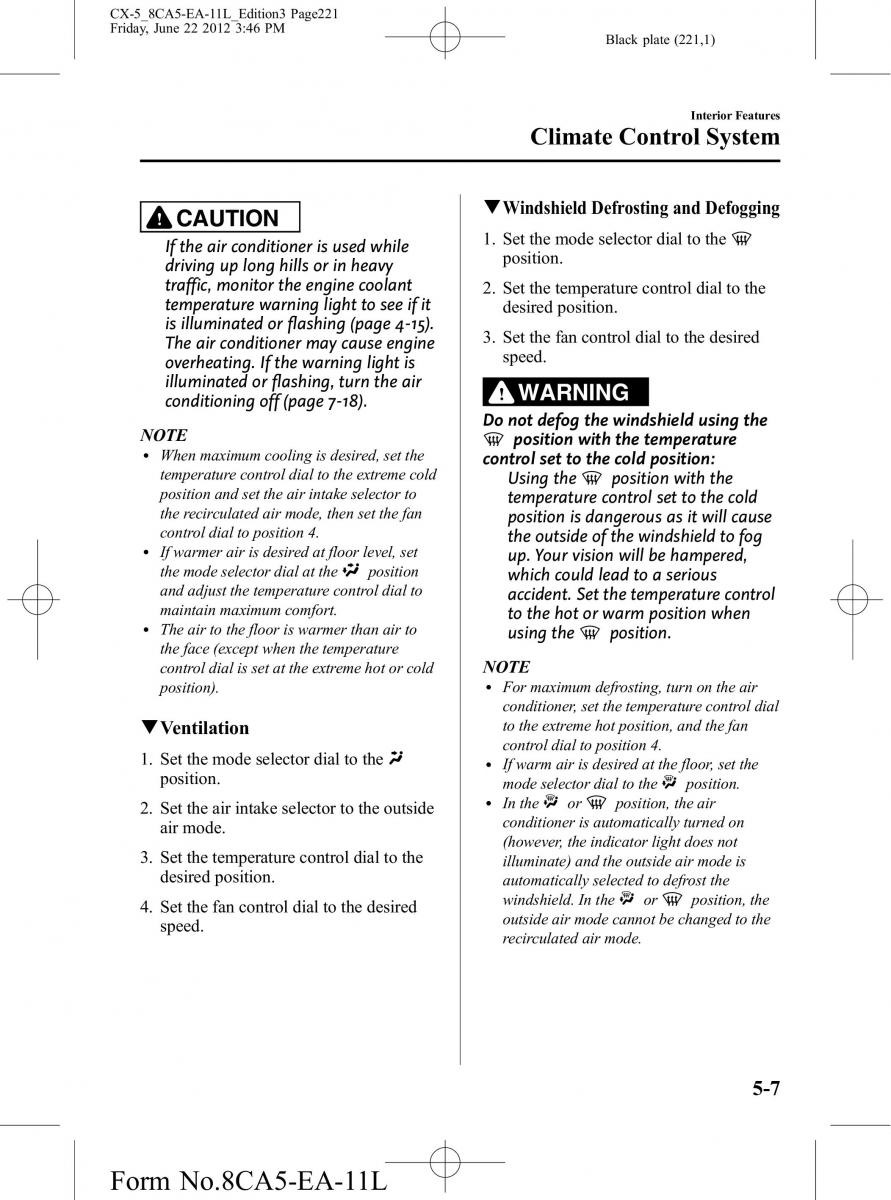

CX-5_8CA5-EA-11L_Edition3 Page221 Friday, June 22 2012 3:46 PM Black plate (221,1) Interior Features Climate Control System CAUTION qWindshieldDefrostingandDefogging If the air conditioner is used while 1. Set the mode selector dial to the driving up long hills or in heavy position. traffic, monitor the engine coolant 2. Set the temperature control dial to the temperature warning light to see if it desired position. is illuminated or flashing (page 4-15). 3. Set the fan control dial to the desired The air conditioner may cause engine speed. overheating. If the warning light is illuminated or flashing, turn the air WARNING conditioning off (page 7-18). Donotdefogthewindshieldusingthe NOTE position with the temperature l Whenmaximumcoolingisdesired,set the control set to the cold position: temperature control dial to the extreme cold Using the position with the position and set the air intake selector to temperature control set to the cold the recirculated air mode, then set the fan position is dangerous as it will cause control dial to position 4. the outside of the windshield to fog l If warmer air is desired at floor level, set up. Your vision will be hampered, the mode selector dial at the position which could lead to a serious and adjust the temperature control dial to accident. Set the temperature control maintain maximum comfort. to the hot or warm position when l Theair to the floor is warmer than air to using the position. the face (except when the temperature control dial is set at the extreme hot or cold NOTE position). l Formaximumdefrosting, turn on the air conditioner, set the temperature control dial qVentilation to the extreme hot position, and the fan control dial to position 4. 1. Set the mode selector dial to the l If warm air is desired at the floor, set the position. modeselectordial to the position. 2. Set the air intake selector to the outside l In the or position, the air air mode. conditioner is automatically turned on (however, the indicator light does not 3. Set the temperature control dial to the illuminate) and the outside air mode is desired position. automatically selected to defrost the 4. Set the fan control dial to the desired windshield. In the or position, the speed. outside air mode cannot be changed to the recirculated air mode. 5-7 Form No.8CA5-EA-11L
