text version of content this owner's manual page from owners manual to the vehicle Mazda CX-5, year of production 2012 - 2017:

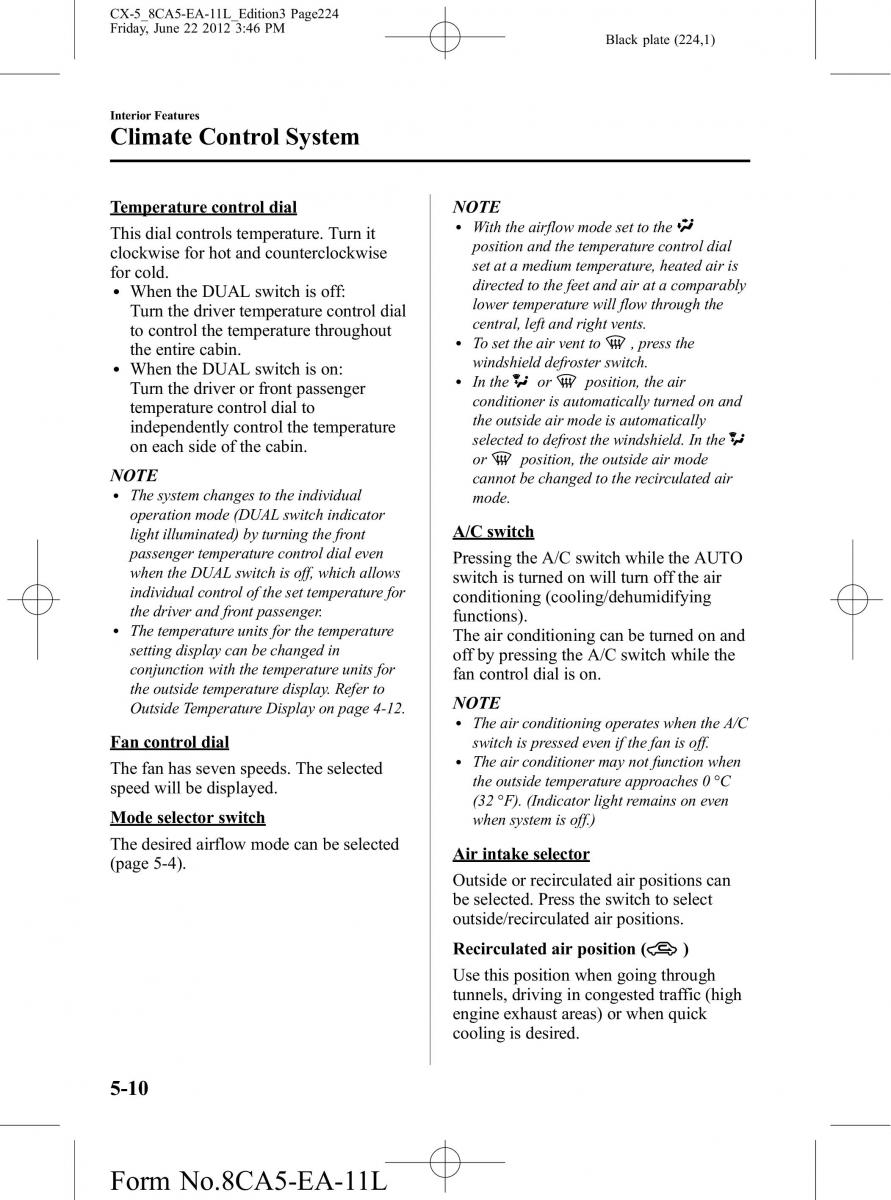

CX-5_8CA5-EA-11L_Edition3 Page224 Friday, June 22 2012 3:46 PM Black plate (224,1) Interior Features Climate Control System Temperaturecontrol dial NOTE This dial controls temperature. Turn it l With the airflow mode set to the clockwise for hot and counterclockwise position and the temperature control dial for cold. set at a medium temperature, heated air is l WhentheDUALswitchisoff: directed to the feet and air at a comparably Turn the driver temperature control dial lower temperature will flow through the to control the temperature throughout central, left and right vents. the entire cabin. l Toset the air vent to , press the l WhentheDUALswitchison: windshield defroster switch. Turn the driver or front passenger l In the or position, the air temperature control dial to conditioner is automatically turned on and independently control the temperature the outside air mode is automatically on each side of the cabin. selected to defrost the windshield. In the or position, the outside air mode NOTE cannot be changed to the recirculated air l Thesystem changes to the individual mode. operation mode (DUAL switch indicator light illuminated) by turning the front A/Cswitch passenger temperature control dial even Pressing the A/C switch while the AUTO whentheDUALswitchisoff,whichallows switch is turned on will turn off the air individual control of the set temperature for conditioning (cooling/dehumidifying the driver and front passenger. functions). l Thetemperature units for the temperature Theair conditioning can be turned on and setting display can be changed in off by pressing the A/C switch while the conjunction with the temperature units for fan control dial is on. the outside temperature display. Refer to Outside Temperature Display on page 4-12. NOTE l Theairconditioning operates when the A/C Fancontrol dial switch is pressed even if the fan is off. Thefan has seven speeds. The selected l Theairconditioner may not function when speed will be displayed. the outside temperature approaches 0 °C (32 °F). (Indicator light remains on even Modeselector switch whensystem is off.) Thedesired airflow mode can be selected Air intake selector (page 5-4). Outside or recirculated air positions can be selected. Press the switch to select outside/recirculated air positions. Recirculated air position ( ) Usethis position when going through tunnels, driving in congested traffic (high engine exhaust areas) or when quick cooling is desired. 5-10 Form No.8CA5-EA-11L
