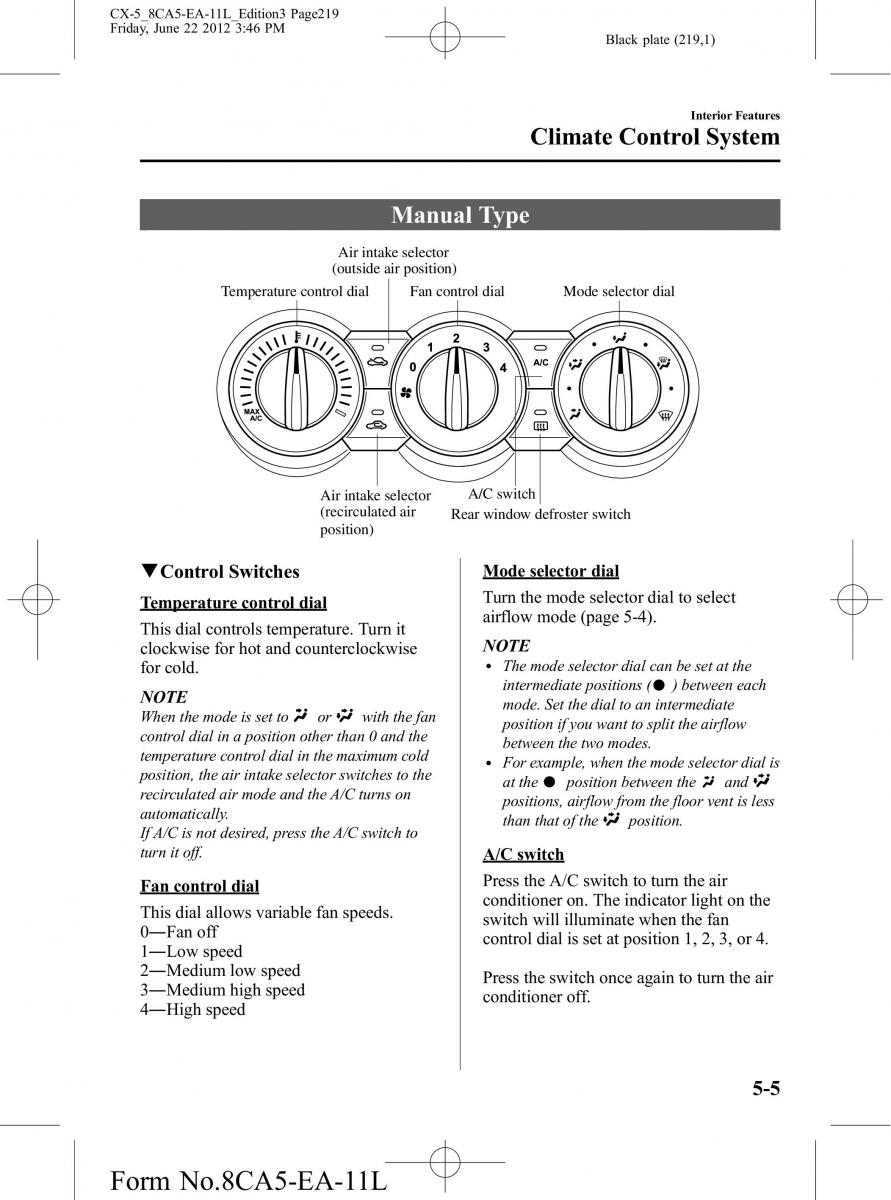

CX-5_8CA5-EA-11L_Edition3 Page219
Friday, June 22 2012 3:46 PM
Black plate (219,1)
Interior Features
Climate Control System
ManualType
Air intake selector
(outside air position)
Temperature control dial Fan control dial Mode selector dial
Air intake selector A/C switch
(recirculated air Rear window defroster switch
position)
qControlSwitches Modeselector dial
Temperaturecontrol dial Turn the mode selector dial to select
This dial controls temperature. Turn it airflow mode (page 5-4).
clockwise for hot and counterclockwise NOTE
for cold. l Themodeselectordial can be set at the
NOTE intermediate positions ( ) between each
Whenthemodeissetto or with the fan mode. Set the dial to an intermediate
control dial in a position other than 0 and the position if you want to split the airflow
temperature control dial in the maximum cold between the two modes.
l Forexample, when the mode selectordial is
position, the air intake selector switches to the at the position between the and
recirculated air mode and the A/C turns on positions, airflow from the floor vent is less
automatically. than that of the position.
If A/C is not desired, press the A/C switch to
turn it off. A/Cswitch
Fancontrol dial Press the A/C switch to turn the air
This dial allows variable fan speeds. conditioner on. The indicator light on the
0―Fanoff switch will illuminate when the fan
1―Lowspeed control dial is set at position 1, 2, 3, or 4.
2―Mediumlowspeed Press the switch once again to turn the air
3―Mediumhighspeed conditioner off.
4―Highspeed
5-5
Form No.8CA5-EA-11L
