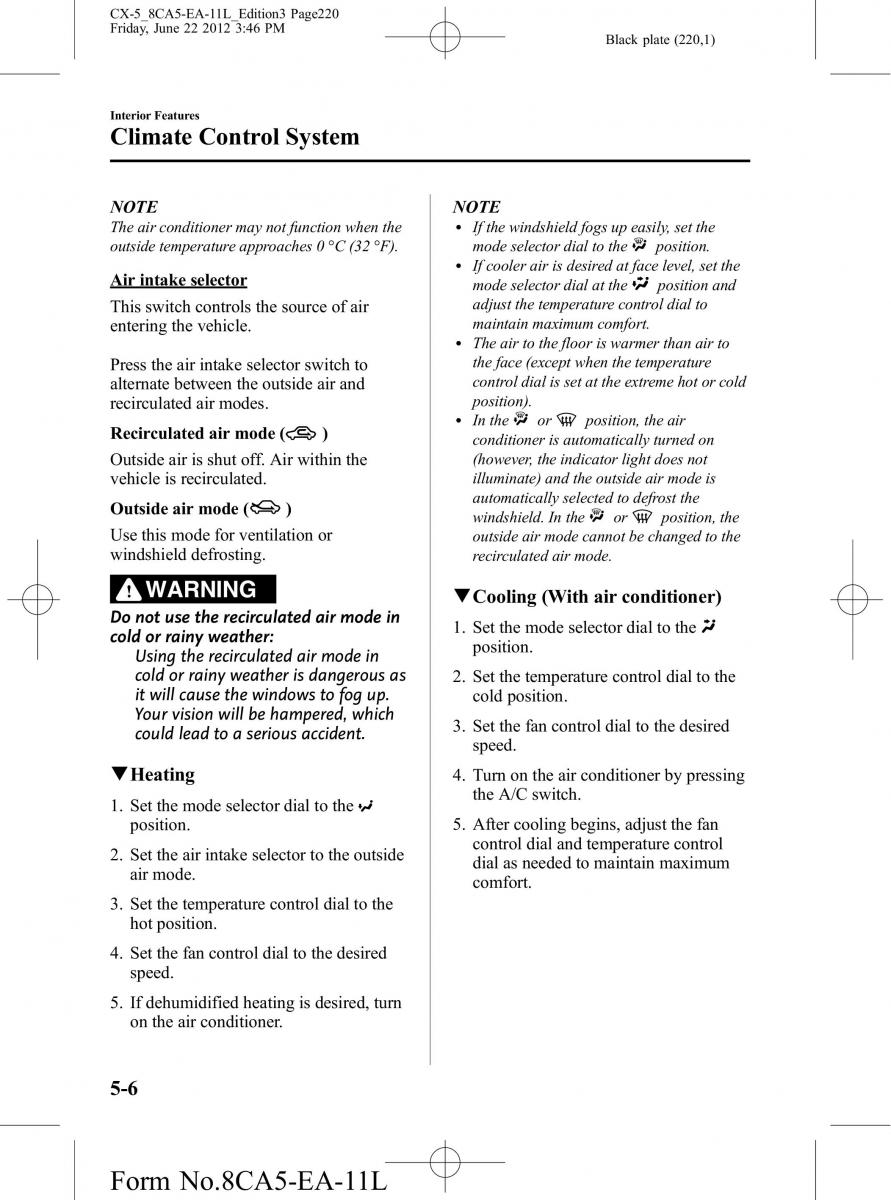

text version of content this owner's manual page from owners manual to the vehicle Mazda CX-5, year of production 2012 - 2017:

CX-5_8CA5-EA-11L_Edition3 Page220 Friday, June 22 2012 3:46 PM Black plate (220,1) Interior Features Climate Control System NOTE NOTE The air conditioner may not function when the l If the windshield fogs up easily, set the outside temperature approaches 0 °C (32 °F). modeselectordial to the position. l If cooler air is desired at face level, set the Air intake selector modeselectordial at the position and This switch controls the source of air adjust the temperature control dial to entering the vehicle. maintain maximum comfort. l Theair to the floor is warmer than air to Press the air intake selector switch to the face (except when the temperature alternate between the outside air and control dial is set at the extreme hot or cold recirculated air modes. position). l In the or position, the air Recirculated air mode ( ) conditioner is automatically turned on Outside air is shut off. Air within the (however, the indicator light does not vehicle is recirculated. illuminate) and the outside air mode is Outside air mode ( ) automatically selected to defrost the windshield. In the or position, the Usethis mode for ventilation or outside air mode cannot be changed to the windshield defrosting. recirculated air mode. WARNING qCooling(Withairconditioner) Donotusetherecirculated air mode in 1. Set the mode selector dial to the cold or rainy weather: position. Using the recirculated air mode in cold or rainy weather is dangerous as 2. Set the temperature control dial to the it will cause the windows to fog up. cold position. Your vision will be hampered, which 3. Set the fan control dial to the desired could lead to a serious accident. speed. qHeating 4. Turn on the air conditioner by pressing 1. Set the mode selector dial to the the A/C switch. position. 5. After cooling begins, adjust the fan 2. Set the air intake selector to the outside control dial and temperature control air mode. dial as needed to maintain maximum comfort. 3. Set the temperature control dial to the hot position. 4. Set the fan control dial to the desired speed. 5. If dehumidified heating is desired, turn on the air conditioner. 5-6 Form No.8CA5-EA-11L
