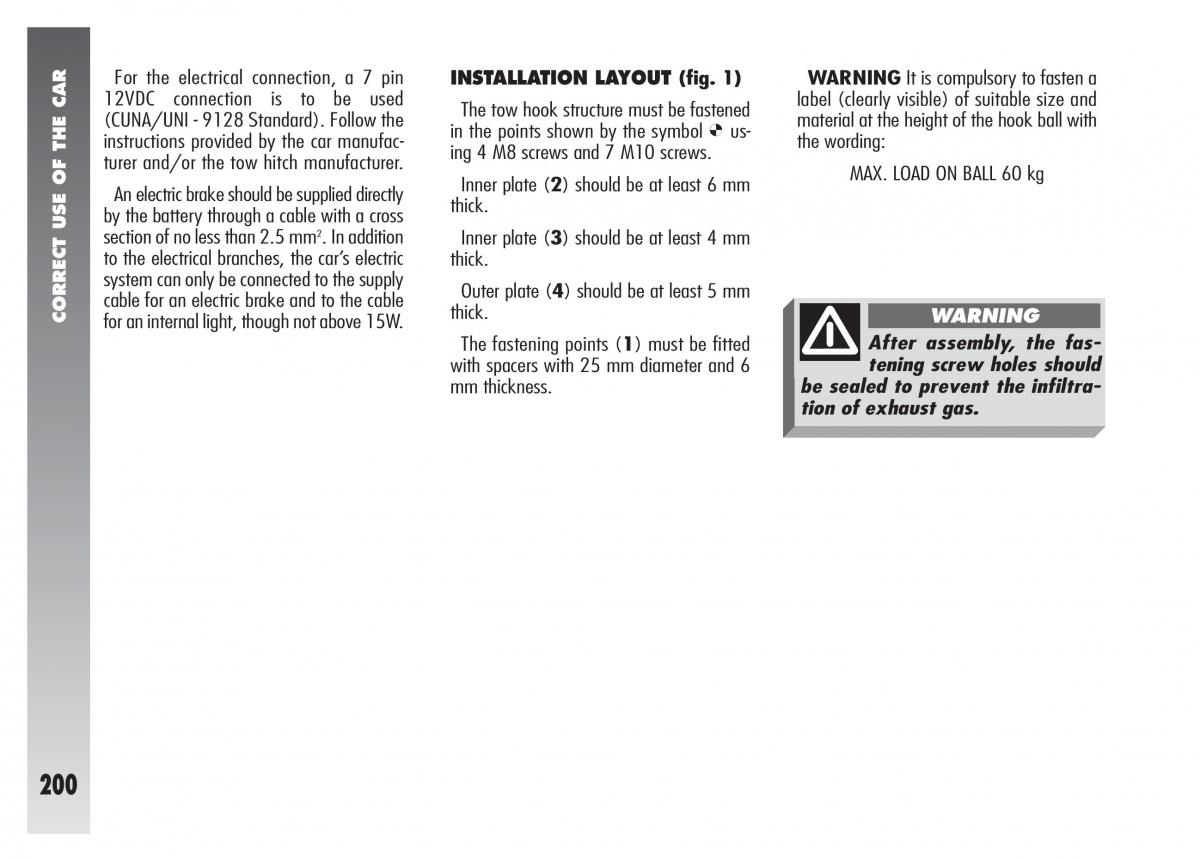

For the electrical connection, a 7 pin INSTALLATION LAYOUT (fig. 1) WARNING It is compulsory to fasten a 12VDC connection is to be used The tow hook structure must be fastened label (clearly visible) of suitable size and (CUNA/UNI - 9128 Standard). Follow the material at the height of the hook ball with in the points shown by the symbol Ø us- instructions provided by the car manufac- the wording: ing 4 M8 screws and 7 M10 screws. turer and/or the tow hitch manufacturer. MAX. LOAD ON BALL 60 kg An electric brake should be supplied directly Inner plate ( 2) should be at least 6 mm by the battery through a cable with a cross thick. 2 section of no less than 2.5 mm. In addition Inner plate ( 3) should be at least 4 mm to the electrical branches, the car’s electric thick. system can only be connected to the supply Outer plate ( 4) should be at least 5 mm cable for an electric brake and to the cable thick. WARNING CORRECT USE OF THE CARfor an internal light, though not above 15W. The fastening points (1) must be fitted After assembly, the fas- with spacers with 25 mm diameter and 6 tening screw holes should mm thickness. be sealed to prevent the infiltra- tion of exhaust gas. 200
