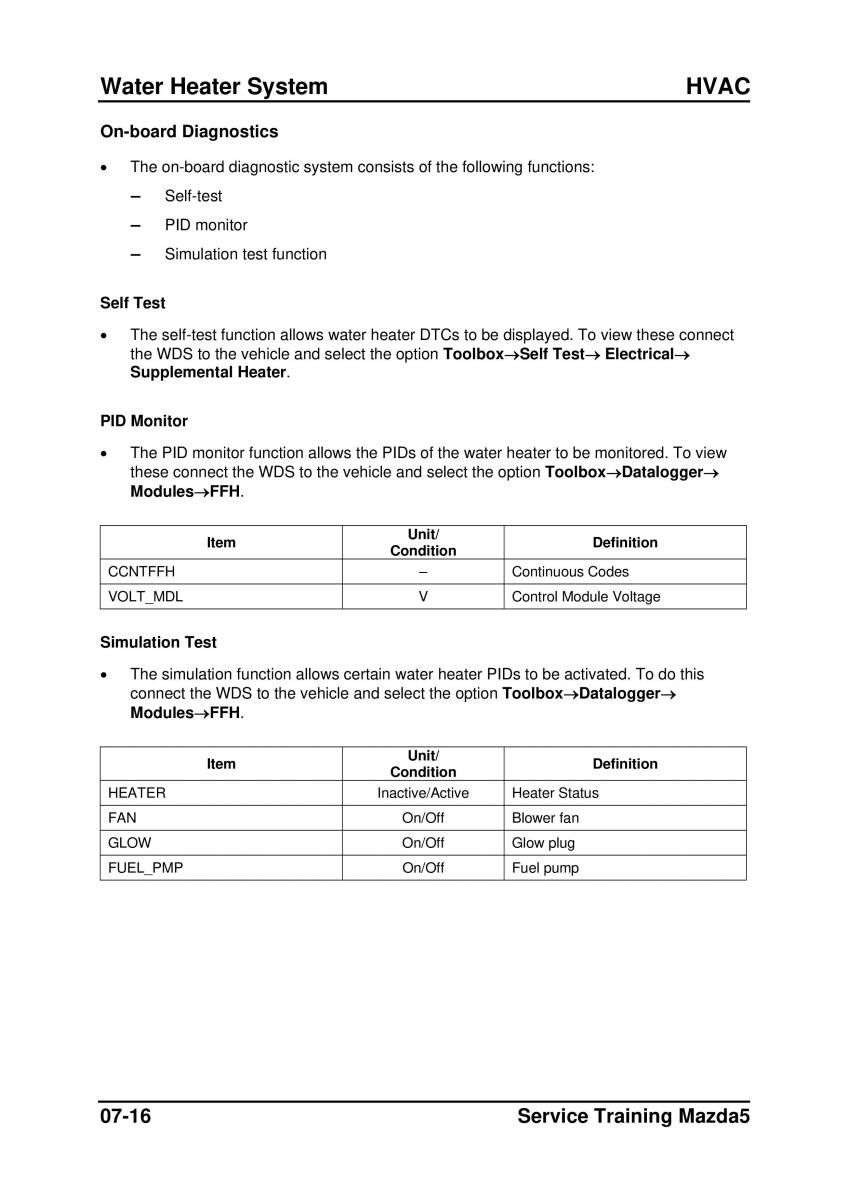

Water Heater System HVAC
On-board Diagnostics
• The on-board diagnostic system consists of the following functions:
– Self-test
– PID monitor
– Simulation test function
Self Test
• The self-test function allows water heater DTCs to be displayed. To view these connect
the WDS to the vehicle and select the option Toolbox→Self Test→ Electrical→
Supplemental Heater.
PID Monitor
• The PID monitor function allows the PIDs of the water heater to be monitored. To view
these connect the WDS to the vehicle and select the option Toolbox→Datalogger→
Modules→FFH.
Item Unit/ Definition
Condition
CCNTFFH – Continuous Codes
VOLT_MDL V Control Module Voltage
Simulation Test
• The simulation function allows certain water heater PIDs to be activated. To do this
connect the WDS to the vehicle and select the option Toolbox→Datalogger→
Modules→FFH.
Item Unit/ Definition
Condition
HEATER Inactive/Active Heater Status
FAN On/Off Blower fan
GLOW On/Off Glow plug
FUEL_PMP On/Off Fuel pump
07-16 Service Training Mazda5
