text version of content this owner's manual page from owners manual to the vehicle Mazda 5, year of production 2005 - 2010:

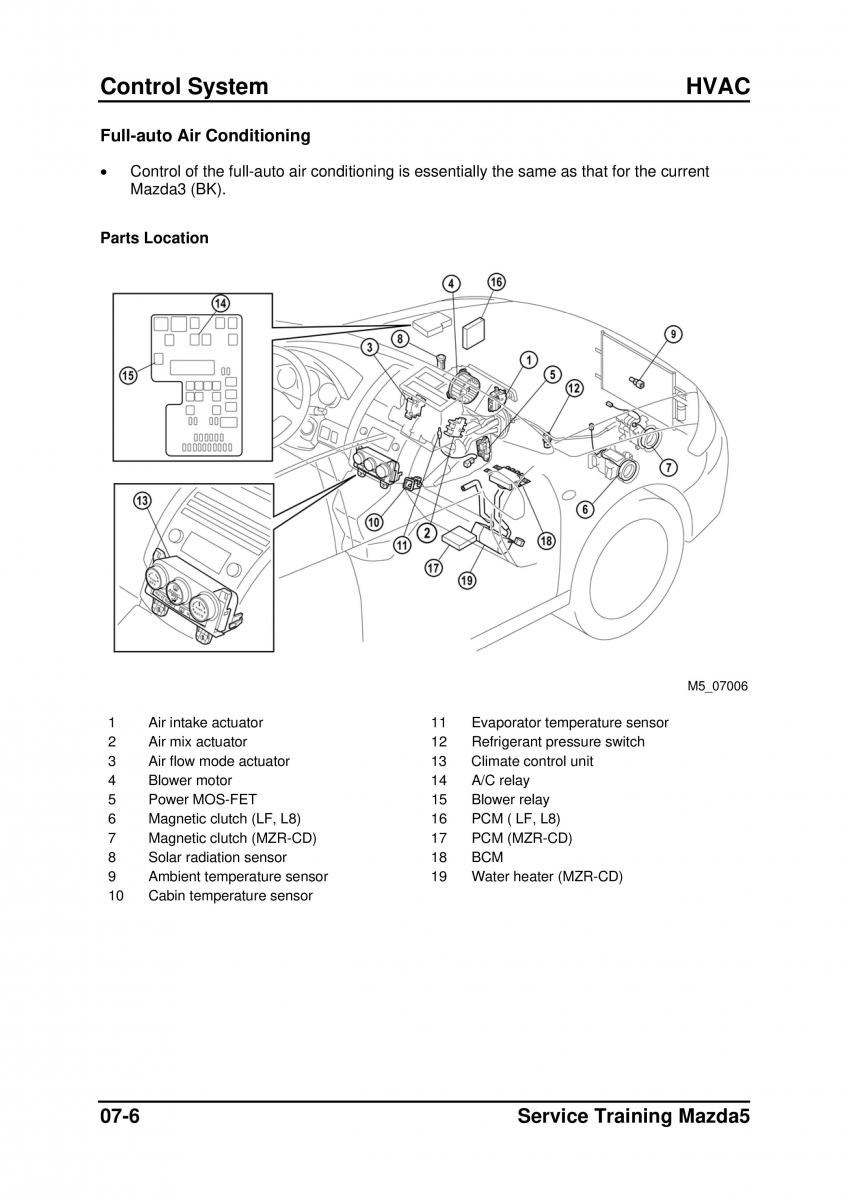

Control System HVAC Full-auto Air Conditioning • Control of the full-auto air conditioning is essentially the same as that for the current Mazda3 (BK). Parts Location M5_07006 1 Air intake actuator 11 Evaporator temperature sensor 2 Air mix actuator 12 Refrigerant pressure switch 3 Air flow mode actuator 13 Climate control unit 4 Blower motor 14 A/C relay 5 Power MOS-FET 15 Blower relay 6 Magnetic clutch (LF, L8) 16 PCM ( LF, L8) 7 Magnetic clutch (MZR-CD) 17 PCM (MZR-CD) 8 Solar radiation sensor 18 BCM 9 Ambient temperature sensor 19 Water heater (MZR-CD) 10 Cabin temperature sensor 07-6 Service Training Mazda5
