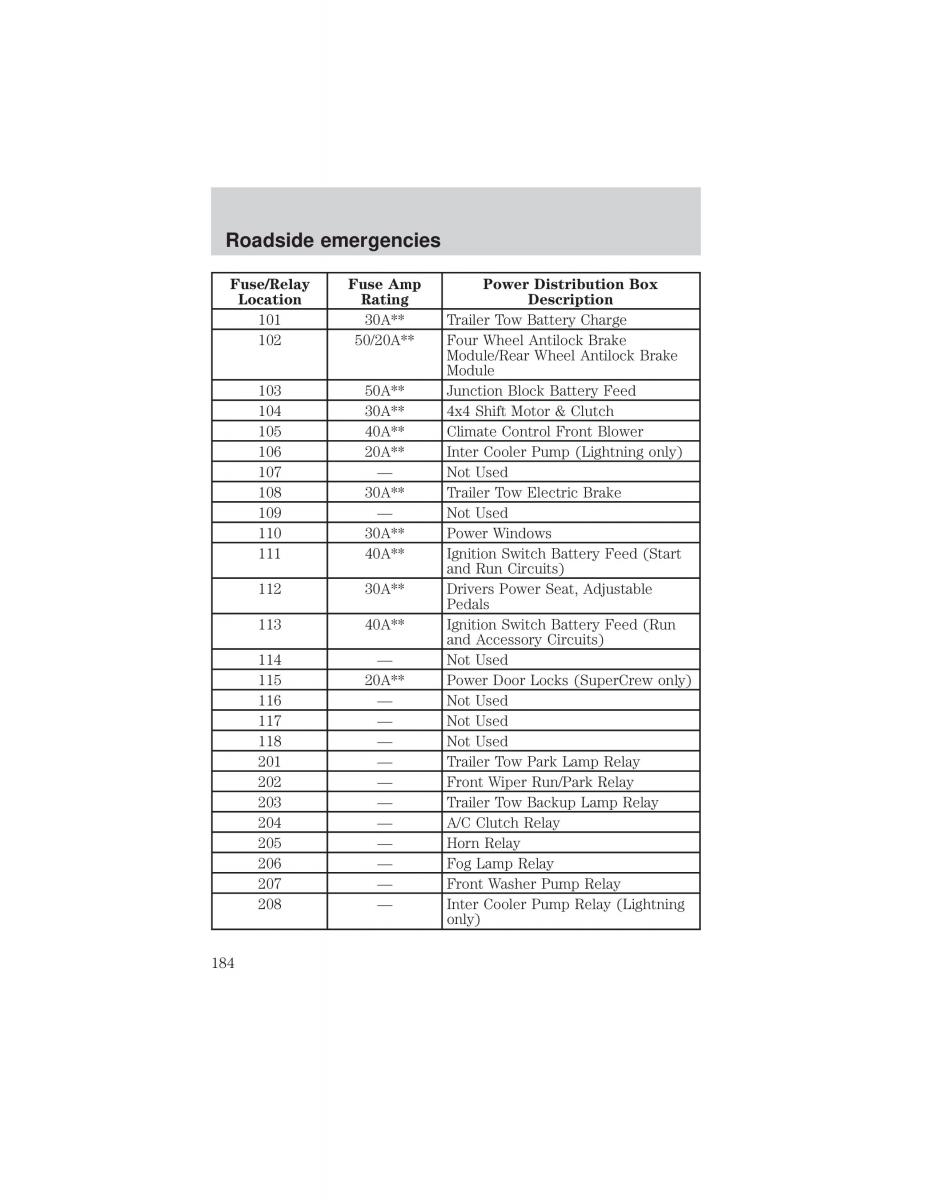

Roadside emergencies
Fuse/RelayFuse AmpPower Distribution Box
Location Rating Description
101 30A**Trailer Tow Battery Charge
102 50/20A**Four Wheel Antilock Brake
Module/Rear Wheel Antilock Brake
Module
103 50A**Junction Block Battery Feed
104 30A**4x4 Shift Motor & Clutch
105 40A**Climate Control Front Blower
106 20A**Inter Cooler Pump (Lightning only)
107 — Not Used
108 30A**Trailer Tow Electric Brake
109 — Not Used
110 30A**Power Windows
111 40A**Ignition Switch Battery Feed (Start
and Run Circuits)
112 30A**Drivers Power Seat, Adjustable
Pedals
113 40A**Ignition Switch Battery Feed (Run
and Accessory Circuits)
114 — Not Used
115 20A**Power Door Locks (SuperCrew only)
116 — Not Used
117 — Not Used
118 — Not Used
201 — Trailer Tow Park Lamp Relay
202 — Front Wiper Run/Park Relay
203 — Trailer Tow Backup Lamp Relay
204 — A/C Clutch Relay
205 — Horn Relay
206 — Fog Lamp Relay
207 — Front Washer Pump Relay
208 — Inter Cooler Pump Relay (Lightning
only)
184
