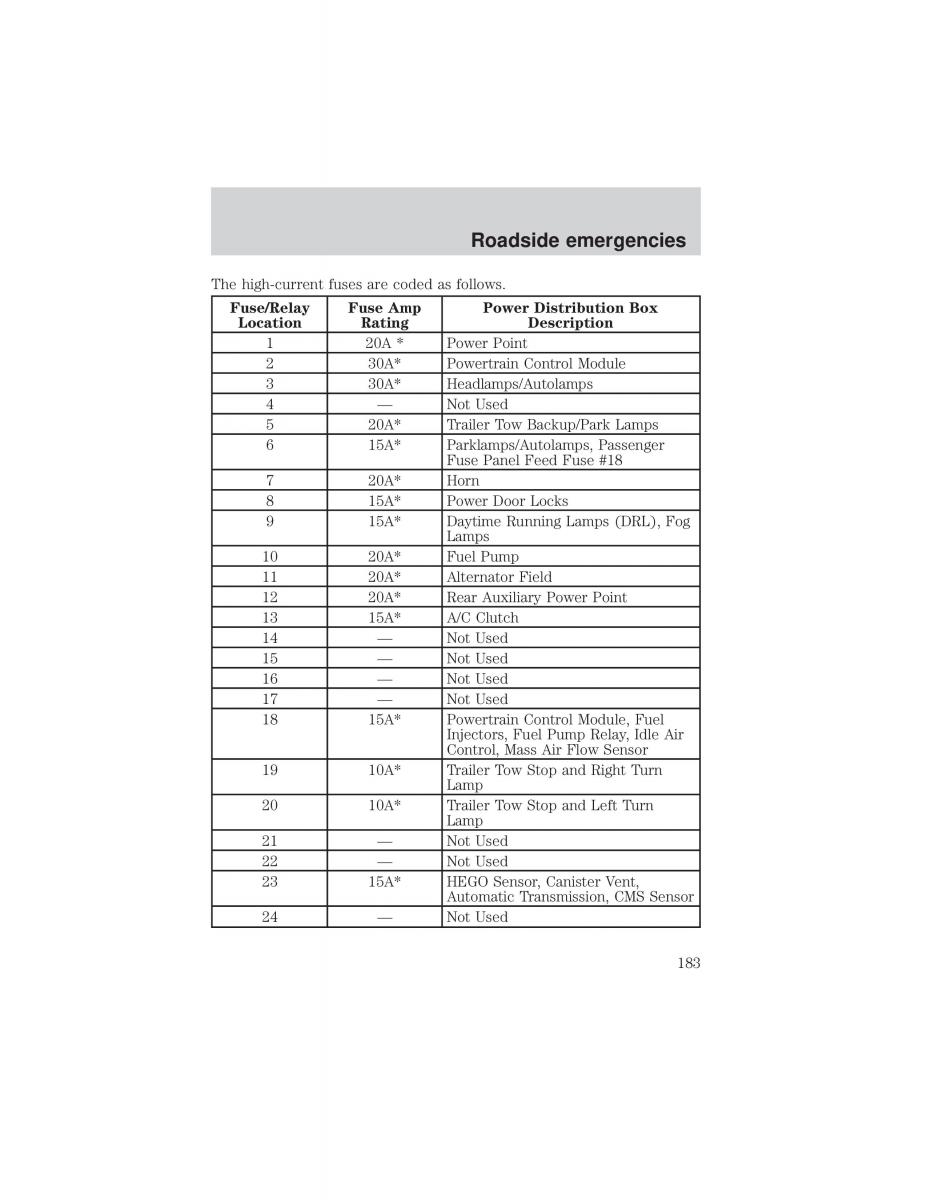

Roadside emergencies
The high-current fuses are coded as follows.
Fuse/RelayFuse AmpPower Distribution Box
Location Rating Description
1 20A *Power Point
2 30A* Powertrain Control Module
3 30A* Headlamps/Autolamps
4 — Not Used
5 20A* Trailer Tow Backup/Park Lamps
6 15A* Parklamps/Autolamps, Passenger
Fuse Panel Feed Fuse #18
7 20A* Horn
8 15A* Power Door Locks
9 15A* Daytime Running Lamps (DRL), Fog
Lamps
10 20A* Fuel Pump
11 20A* Alternator Field
12 20A* Rear Auxiliary Power Point
13 15A* A/C Clutch
14 — Not Used
15 — Not Used
16 — Not Used
17 — Not Used
18 15A* Powertrain Control Module, Fuel
Injectors, Fuel Pump Relay, Idle Air
Control, Mass Air Flow Sensor
19 10A* Trailer Tow Stop and Right Turn
Lamp
20 10A* Trailer Tow Stop and Left Turn
Lamp
21 — Not Used
22 — Not Used
23 15A* HEGOSensor, Canister Vent,
Automatic Transmission, CMS Sensor
24 — Not Used
183
