text version of content this owner's manual page from owners manual to the vehicle Ford F-150, year of production 1995 - 2003:

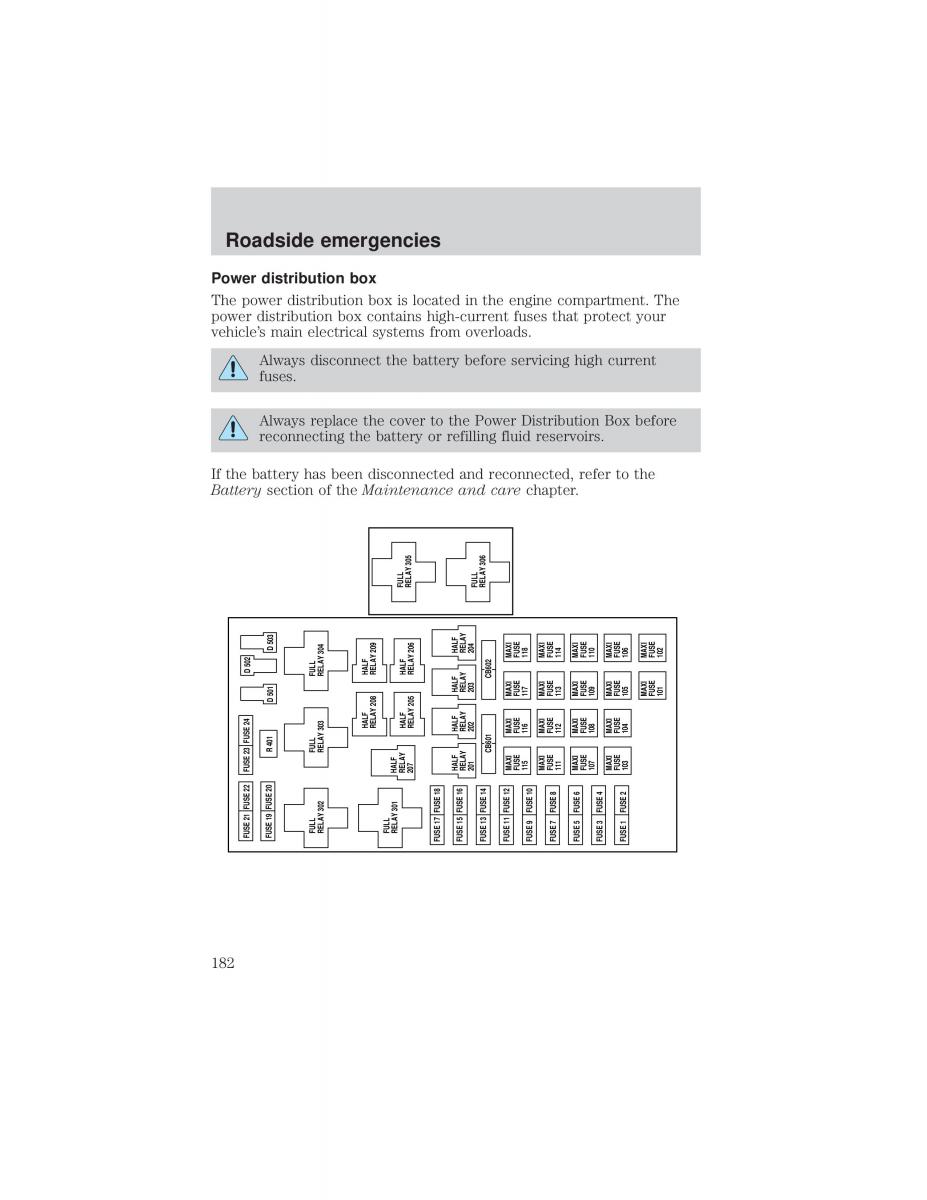

Roadside emergencies Power distribution box The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads. Always disconnect the battery before servicing high current fuses. Always replace the cover to the Power Distribution Box before reconnecting the battery or refilling fluid reservoirs. If the battery has been disconnected and reconnected, refer to the Battery section of the Maintenance and care chapter. FULLRELAY 305FULLRELAY 306 D 503 HALFRELAY204 MAXIFUSE118MAXIFUSE114MAXIFUSE110MAXIFUSE106MAXIFUSE102 D 502 FULLRELAY 304HALFRELAY 209HALFRELAY 206CB602 HALFRELAY203MAXIFUSE117MAXIFUSE113MAXIFUSE109MAXIFUSE105MAXIFUSE101 D 501 HALFRELAY 208HALFRELAY 205HALFRELAY202MAXIFUSE116MAXIFUSE112MAXIFUSE108MAXIFUSE104 FUSE 24 R 401 FULLRELAY 303 CB601 FUSE 23 HALFRELAY207HALFRELAY201MAXIFUSE115MAXIFUSE111MAXIFUSE107MAXIFUSE103 FUSE 22FUSE 20 FUSE 18FUSE 16FUSE 14FUSE 12FUSE 10FUSE 8FUSE 6FUSE 4FUSE 2 FUSE 21FUSE 19FULLRELAY 302FULLRELAY 301 FUSE 17FUSE 15FUSE 13FUSE 11FUSE 9FUSE 7FUSE 5FUSE 3FUSE 1 182
