text version of content this owner's manual page from owners manual to the vehicle Ford F-150, year of production 1995 - 2003:

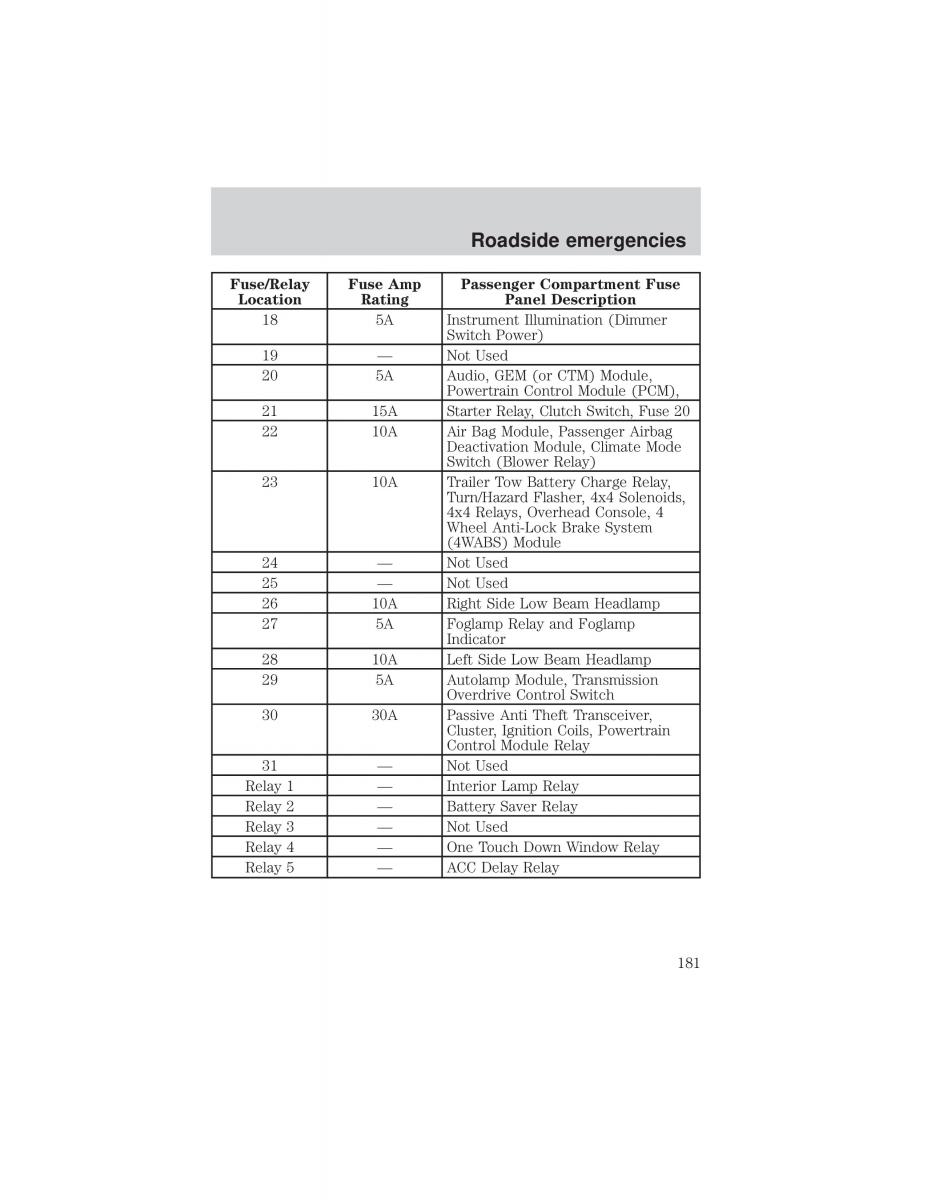

Roadside emergencies Fuse/RelayFuse AmpPassenger Compartment Fuse Location Rating Panel Description 18 5A Instrument Illumination (Dimmer Switch Power) 19 — Not Used 20 5A Audio, GEM (or CTM) Module, Powertrain Control Module (PCM), 21 15A Starter Relay, Clutch Switch, Fuse 20 22 10A Air Bag Module, Passenger Airbag Deactivation Module, Climate Mode Switch (Blower Relay) 23 10A Trailer Tow Battery Charge Relay, Turn/Hazard Flasher, 4x4 Solenoids, 4x4 Relays, Overhead Console, 4 Wheel Anti-Lock Brake System (4WABS) Module 24 — Not Used 25 — Not Used 26 10A Right Side Low Beam Headlamp 27 5A Foglamp Relay and Foglamp Indicator 28 10A Left Side Low Beam Headlamp 29 5A Autolamp Module, Transmission Overdrive Control Switch 30 30A Passive Anti Theft Transceiver, Cluster, Ignition Coils, Powertrain Control Module Relay 31 — Not Used Relay 1 — Interior Lamp Relay Relay 2 — Battery Saver Relay Relay 3 — Not Used Relay 4 — One Touch Down Window Relay Relay 5 — ACC Delay Relay 181
