text version of content this owner's manual page from owners manual to the vehicle Mazda 5, year of production 2005 - 2010:

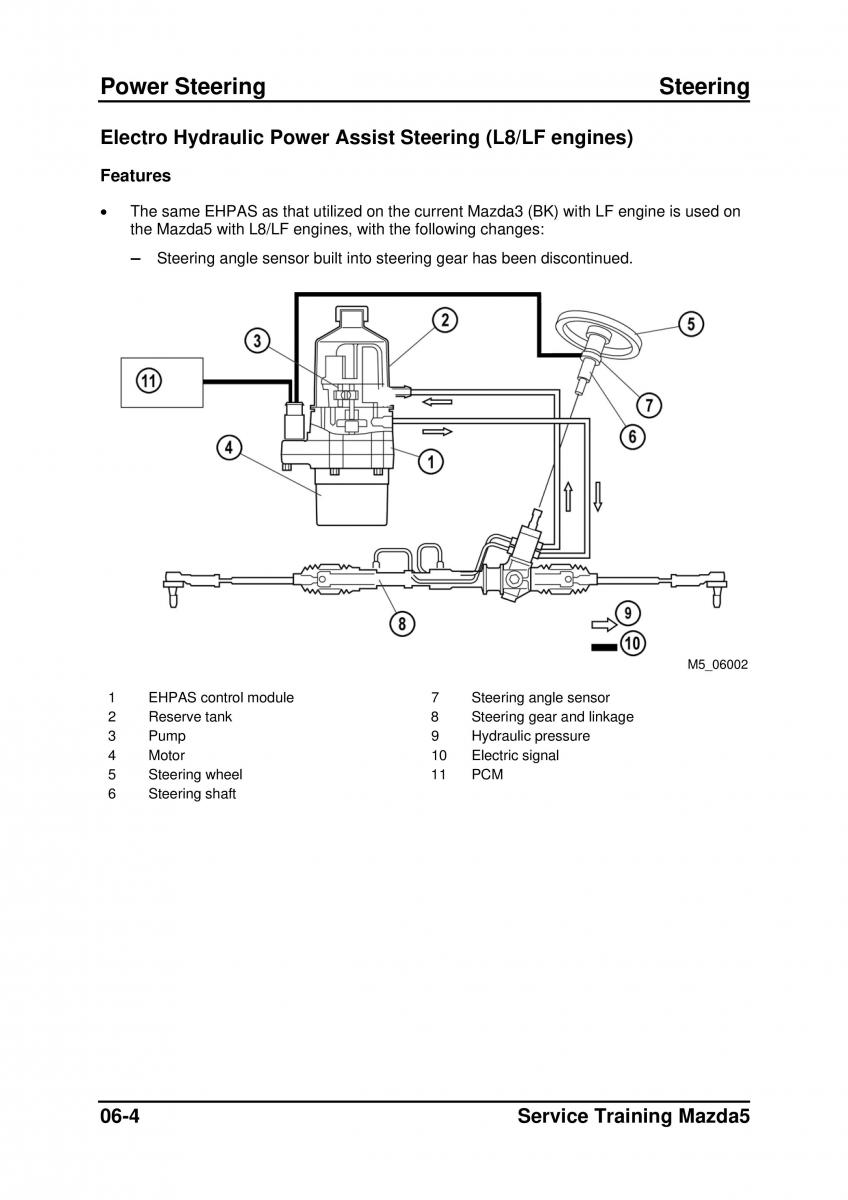

Power Steering Steering Electro Hydraulic Power Assist Steering (L8/LF engines) Features • The same EHPAS as that utilized on the current Mazda3 (BK) with LF engine is used on the Mazda5 with L8/LF engines, with the following changes: – Steering angle sensor built into steering gear has been discontinued. M5_06002 1 EHPAS control module 7 Steering angle sensor 2 Reserve tank 8 Steering gear and linkage 3 Pump 9 Hydraulic pressure 4 Motor 10 Electric signal 5 Steering wheel 11 PCM 6 Steering shaft 06-4 Service Training Mazda5
