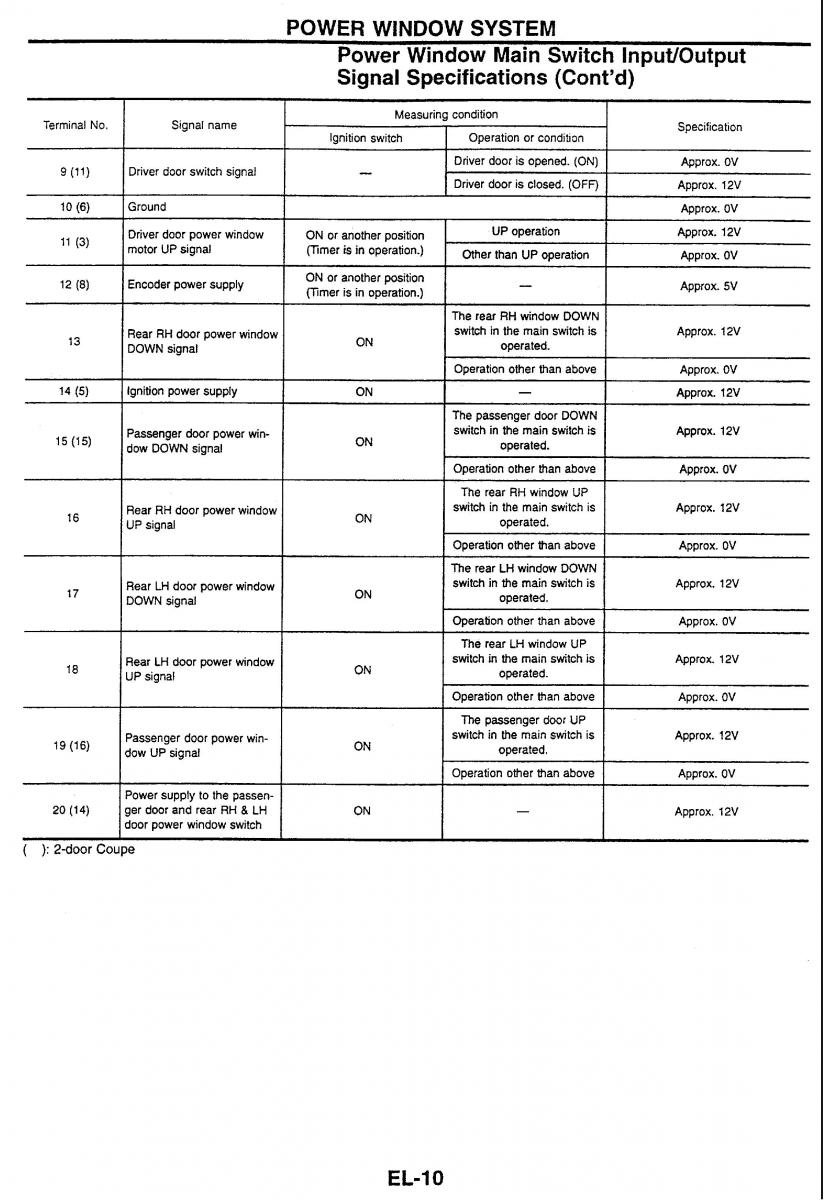

POWER WINDOW SYSTEM Power Window Main Switch Input/Output Signal Specifications (Cont'd) - Terminal No. Signal name Measuring condition Specification Ignition switch Operation or condition Driver door is opened. (ON) Approx. OV Driver door switch signal - - Driver door is closed. (OFF) Approx. 12V Ground Approx. OV Driver door power window ON or another position UP operation Approx. 12V motor UP signal (Timer is in operation.) -- -- Other than UP operation Appro~. OV Encoder power supply ON or another position - Approx. 5V (Tmer is in operation.) The rear RH window DOWN Rear RH door power window switch in the main switch is Approx. 12V DOWN signal operated. Operation other than above Approx. OV Ignition power supply ON - Approx. 12V The passenger door DOWN Passenger door power win- switch in the main switch is Approx. 12V dow DOWN signal operated. Operation other than above Approx. OV -- The rear RH window UP Rear RH door power window switch in the main switch is Appro~. 12V UP signal operated. Operation other than above Approx. OV The rear LH window DOWN Rear LH door power window switch in the main switch is Approx. 12V DOWN signal operated. Operation other than above Approx. OV The rear LH window UP Rear LH door power window switch in the main switch is Approx. 12V UP signal operated. -- - Operation other than above Approx. OV The passenger door UP Passenger door power win- switch in the main switch is Approx. 12V 3ow UP signal operated. - - Operation other than above Approx. OV Power supply to the passen- - jer door and rear RH 8 LH Approx. 12V joor power window switch I
