text version of content this owner's manual page from owners manual to the vehicle Mazda 5, year of production 2005 - 2010:

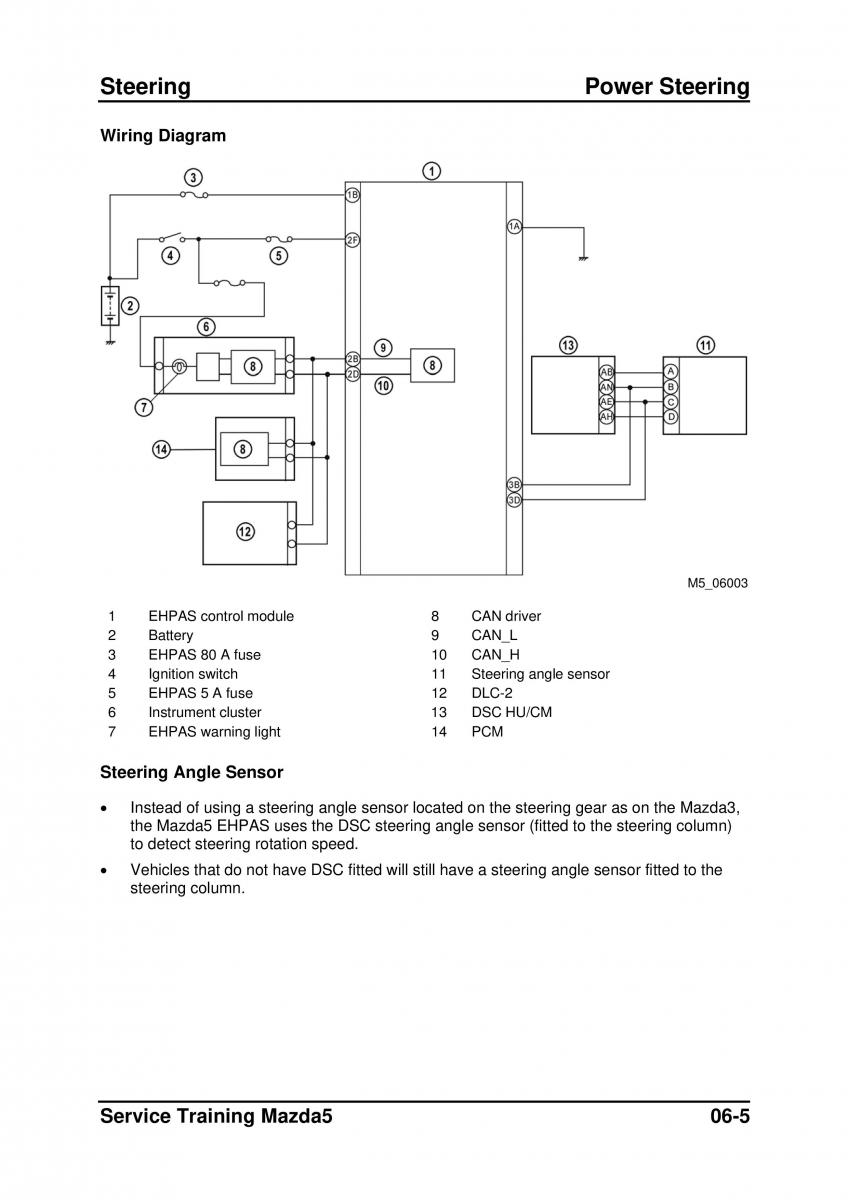

Steering Power Steering Wiring Diagram M5_06003 1 EHPAS control module 8 CAN driver 2 Battery 9 CAN_L 3 EHPAS 80 A fuse 10 CAN_H 4 Ignition switch 11 Steering angle sensor 5 EHPAS 5 A fuse 12 DLC-2 6 Instrument cluster 13 DSC HU/CM 7 EHPAS warning light 14 PCM Steering Angle Sensor • Instead of using a steering angle sensor located on the steering gear as on the Mazda3, the Mazda5 EHPAS uses the DSC steering angle sensor (fitted to the steering column) to detect steering rotation speed. • Vehicles that do not have DSC fitted will still have a steering angle sensor fitted to the steering column. Service Training Mazda5 06-5
