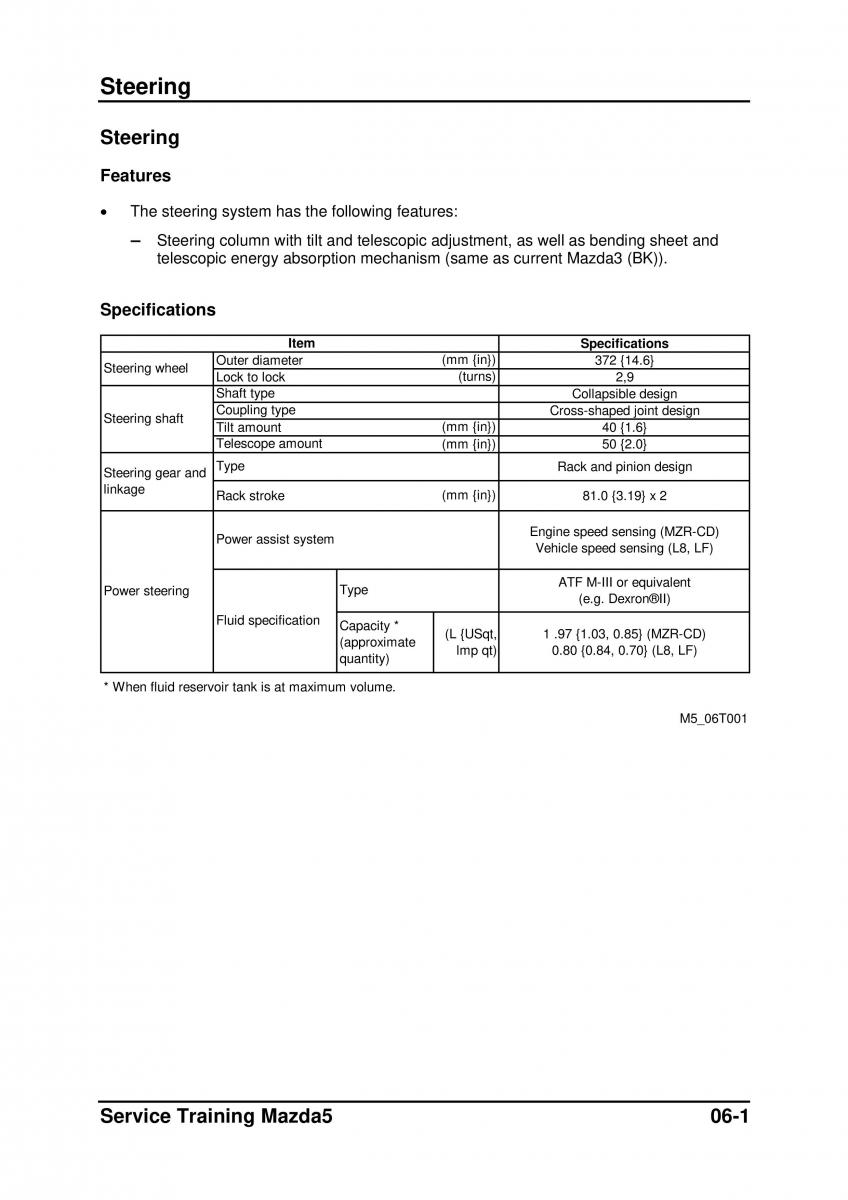

Steering
Steering
Features
• The steering system has the following features:
– Steering column with tilt and telescopic adjustment, as well as bending sheet and
telescopic energy absorption mechanism (same as current Mazda3 (BK)).
Specifications
Item Specifications
Steering wheelOuter diameter (mm {in}) 372 {14.6}
Lock to lock (turns) 2,9
Shaft type Collapsible design
Steering shaftCoupling type Cross-shaped joint design
Tilt amount (mm {in}) 40 {1.6}
Telescope amount (mm {in}) 50 {2.0}
Steering gear and Type Rack and pinion design
linkage Rack stroke (mm {in}) 81.0 {3.19} x 2
Power assist system Engine speed sensing (MZR-CD)
Vehicle speed sensing (L8, LF)
Power steering Type ATF M-III or equivalent
(e.g. Dexron®II)
Fluid specificationCapacity *
(approximate(L {USqt,1 .97 {1.03, 0.85} (MZR-CD)
quantity) lmp qt)0.80 {0.84, 0.70} (L8, LF)
* When fluid reservoir tank is at maximum volume.
M5_06T001
Service Training Mazda5 06-1
