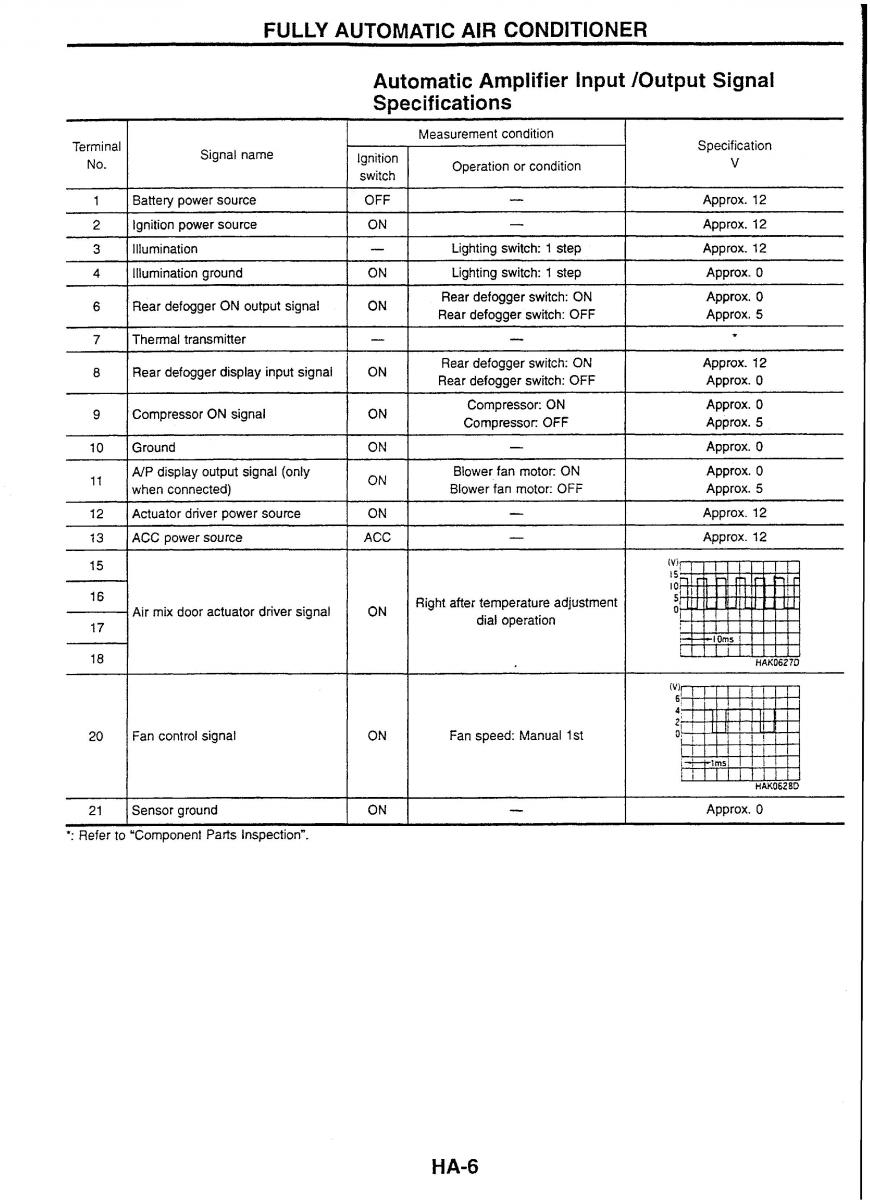

FULLY AUTOMATIC AIR CONDITIONER Automatic Amplifier Input /Output Signal Specifications Terminal I Measurement condition Specification No. Signal name Ignition Operation or condition v switch I Battery power source OFF I - I Approx. 12 Ignition power source ON I - I Approx. 12 lllumination - I Lighting switch: 1 step 1 Approx. 12 ON r Lighting switch: 1 step I Approx. o 6 1 Rear defogger ON output signal Rear defogger switch: ON Approx. 0 Rear defogger switch: OFF 1 Approx. 5 7 Thermal transmitter 8 1 Rear defogger display input signal Rear defogger switch: ON Approx. 12 Rear defogger switch: OFF 1 Approx. 0 Compressor ON signal Compressor: ON Approx. 0 Compressor: OFF Approx. 5 10 1 Ground - ON -I-- - - I Approx. 0 AfP display output signal (only Blower fan motor: ON Approx. 0 when connected) Blower fan motor: OFF Approx. 5 12 1 Actuator driver power source ON I - 1 Approx. 12 1 3 1 ACC power source ACC I - I Approx. 12 Air mix door actuator driver signal Right after temperature adjustment dial operation Fan control signal Fan speed: Manual 1st 21 Sensor ground ON I - I Approx. 0 ': Refer to "Component Parts Inspectionn.
