text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

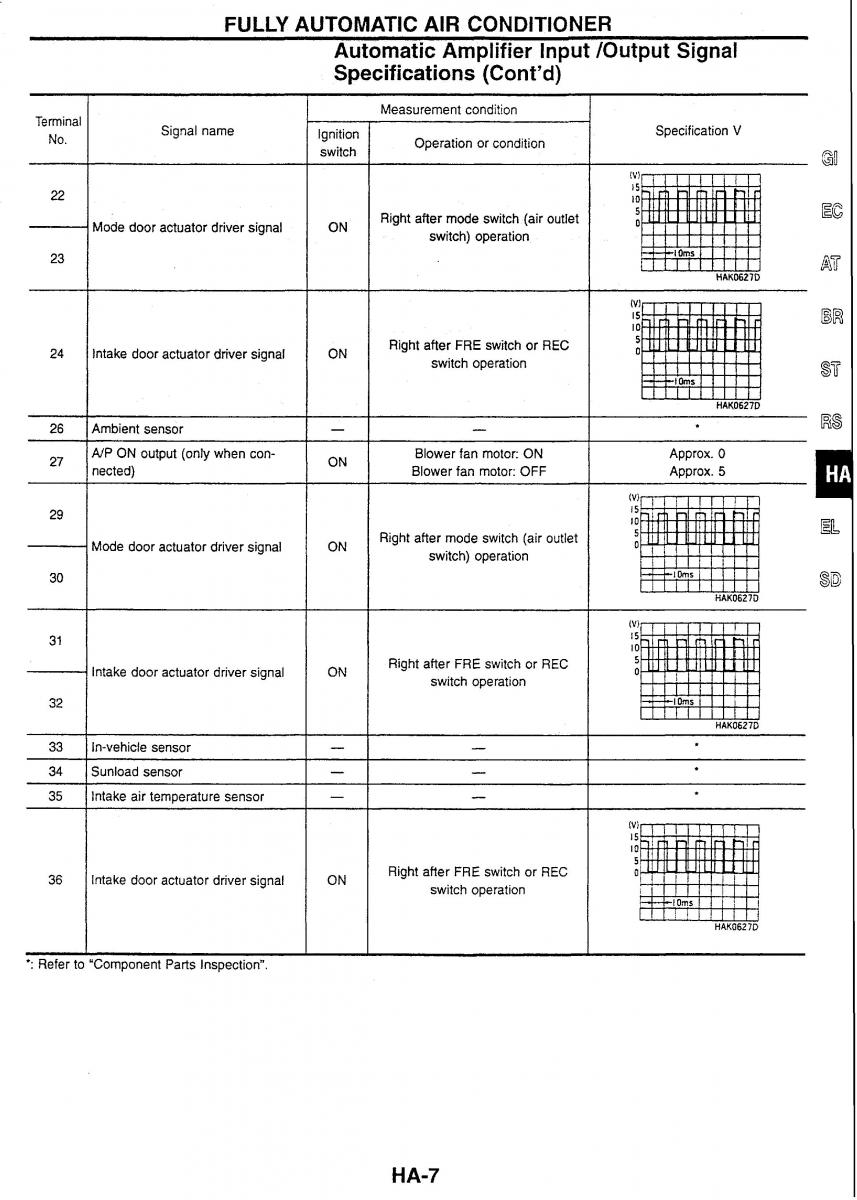

FULLY AUTOMATIC AIR CONDITIONER Automatic Amplifier Input /Output Signal Terminal Measurement condition No. Signal name Ignition Operation or condition Specification V switch Mode door actuator driver signal Right after mode switch (air outlet I switch) operation 24 lntake door actuator driver signal Right after FRE switch or REC switch operation I 26 I Ambient sensor A/P ON output (only when con- Blower fan motor: ON Approx. 0 '' / nected) Blower fan motor: OFF Approx. 5 Mode door actuator driver signal Right after mode switch (air outlet switch) operation -1 lntake door actuator driver signal Right after FRE switch or REC switch operation 33 1 In-vehicle sensor 34 I Sunload sensor 35 1 lntake air temperature sensor 36 lntake door actuator driver signal Right after FRE switch or REC switch operation *: Refer to "Component Parts Inspection".
