text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

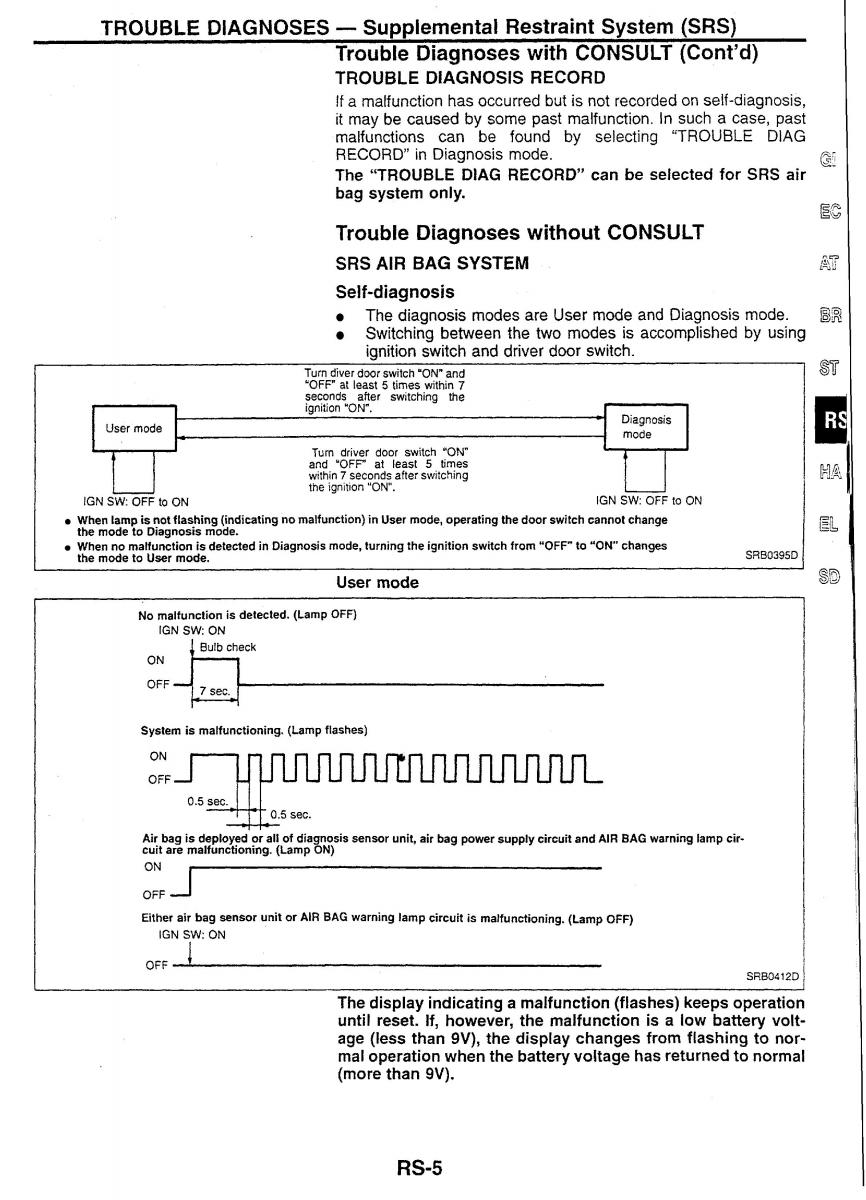

TROUBLE DIAGNOSES - Supplemental Restraint System (SRS) Trouble Diagnoses with CONSULT (Cont'd) TROUBLE DIAGNOSIS RECORD If a malfunction has occurred but is not recorded on seif-diagnosis, it may be caused by some past malfunction. In such a case, past malfunctions can be found by selecting "TROUBLE DlAG RECORD" in Diagnosis mode. The "TROUBLE DlAG RECORD" can be selected for SRS air bag system only. Trouble Diagnoses without CONSULT SRS AIR BAG SYSTEM Self-diagnosis The diagnosis modes are User mode and Diagnosis mode. Switching between the two modes is accomplished by using ignition switch and driver door switch. Turn diver door switch 'ON" and 'OFF" at least 5 times within 7 seconds after sw~tching the ignition "ON". - User mode Diagnosis - - mode k Turn driver door switch "ON" b A and "OFF at least 5, times within 7 seconds after sw~tching the ignition "ON". IGN SW: OFF to ON IGN SW: OFF to ON When lamp is not flashing (indicating no malfunction) in User mode, operating the door switch cannot change the mode to Diagnosis mode. When no malfunction is detected in Diagnosis mode, turning the ignition switch from "OFF" to "ON" changes SRB0395D the mode to User mode. User mode No malfunction is detected. (Lamp OFF) IGN SW: ON ON OFF- 7 sec. System is malfunctioning. (Lamp flashes) ON OFF 0.5 see. 0.5 sec. Air bag is deployed or all of diagnosis sensor unit, air bag power supply circuit and AIR BAG warning lamp cir- cuit are malfunctioning. (Lamp ON) ON OFF Either air bag sensor unit or AIR BAG warning lamp circuit is malfunctioning. (Lamp OFF) IGN SW: ON OFF + SRB0412D The display indicating a malfunction (flashes) keeps operation until reset. If, however, the malfunction is a low battery volt- age (less than 9V), the display changes from flashing to nor- mal operation when the battery voltage has returned to normal 9V). (more than
