text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

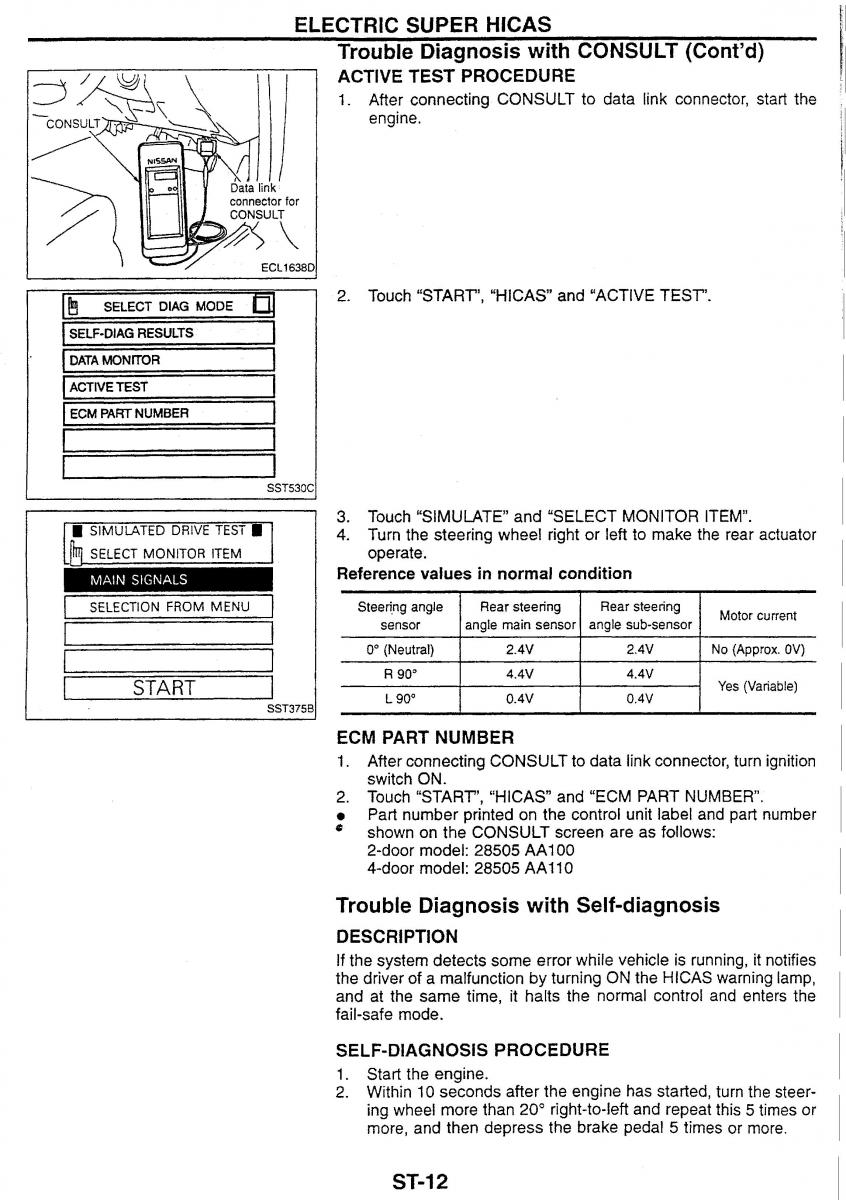

ELECTRIC SUPER HICAS Trouble Diagnosis with CONSULT (Cont'd) ACTIVE TEST PROCEDURE After connecting CONSULT to data link connector, start the engine. connector for '@g SELECT DlAG MODE Touch "START", "HICAS and "ACTIVE TEST". SELF-DIAG RESULTS i DATA MONITOR ACTIVE TEST ECM PART NUMBER u Touch 'SIMULATE" and "SELECT MONITOR ITEM". 1 I lhil SELECT MONITOR ITEM I 1 Turn the steering wheel right or left to make the rear actuator operate. Reference values in normal condition SELECTION FROM MENU Steering angle Rear steering Rear steering Motor current sensor angle main sensor angle sub-sensor I Il -- - 0" (Neutral) I 2.4V I 2.4V I No (Approx OV) -- I R 90" 4.4V 4.4V START I L 90" 0.4V 0.4V Yes (Variable) ECM PART NUMBER After connecting CONSULT to data link connector, turn ignition switch ON. Touch "START', "HICAS" and "ECM PART NUMBER7'. Part number printed on the control unit label and part number shown on the CONSULT screen are as follows: 2-door model: 28505 AAI 00 4-door model: 28505 AAll 0 Trouble Diagnosis with Self-diagnosis DESCRIPTION If the system detects some error while vehicle is running, it notifies the driver of a malfunction by turning ON the HICAS warning lamp, and at the same time, it halts the normal control and enters the fail-safe mode. SELF-DIAGNOSIS PROCEDURE 1. Start the engine. 2. Within 10 seconds after the engine has started, turn the steer- ing wheel more than 20" right-to-left and repeat this 5 times or more, and then depress the brake pedal 5 times or more.
