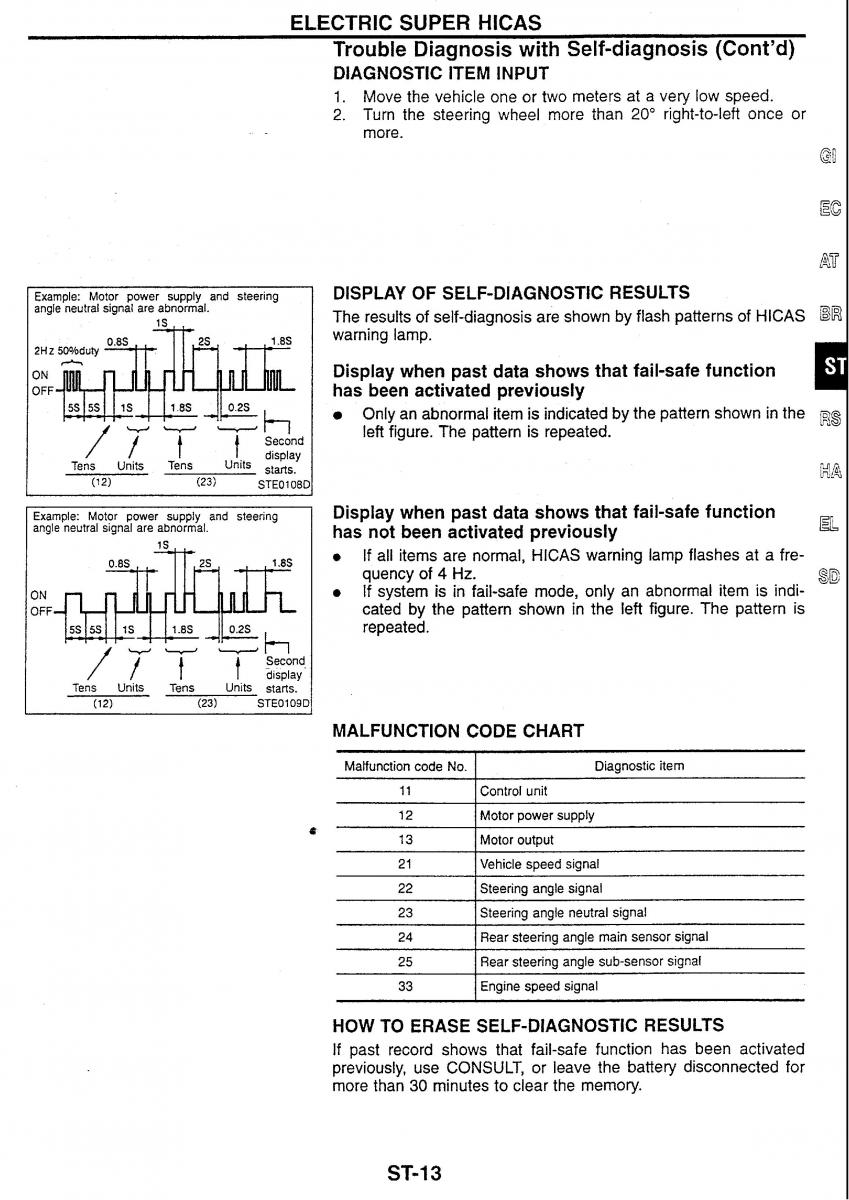

ELECTRIC SUPER HICAS Trouble Diagnosis with Self-diagnosis (Cont'd) DIAGNOSTIC ITEM INPUT 1. Move the vehicle one or two meters at a very low speed. 2. Turn the steering wheel more than 20" right-to-left once or more. Example: Motor power supply and steering DISPLAY OF SELF-DIAGNOSTIC RESULTS angle neutral signal are abnormal. The results of self-diagnosis are shown by flash patterns of HlCAS BR 1s , warning lamp. 2H z ON Display when past data shows that fail-safe function OFF has been activated previously Only an abnormal item is indicated by the pattern shown in the ~8 / r Second left figure. The pattern is repeated. / / I I display Tens Units Tens Units starts. Example: Motor power supply and steering Display when past data shows that fail-safe function angle neutral signal are abnormal. has not been activated previously EL 1s- , If all items are normal, HlCAS warning lamp flashes at a fre- 0.8s - ,2S , ,1.8S - A quency of 4 Hz. sD ON I-- '1 7, If system is in fail-safe mode, only an abnormal item is indi- OFF- -.-- - cated by the pattern shown in the left figure. The pattern is 5s 55 1s 1.8s v".2S repeated. I_ / -j- &lnd, display Tens Units Tens Units starts. / (12) (23) STE0109D MALFUNCTION CODE CHART Malfunction code No. 1 Diagnostic item 11 I Control unit 12 Motor power supply 13 Motor output 2 1 [ ~ze speed signal 22 I Steering angle signal -- 23 ]Steering angle neutral signal 24 I Rear steering angle main sensor signal 2 5 I Rear steering angle sub-sensor signal 33 I Engine speed signal HOW TO ERASE SELF-DIAGNOSTIC RESULTS If past record shows that fail-safe function has been activated previously, use CONSULT, or leave the battery disconnected for more than 30 minutes to clear the memory.
