text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

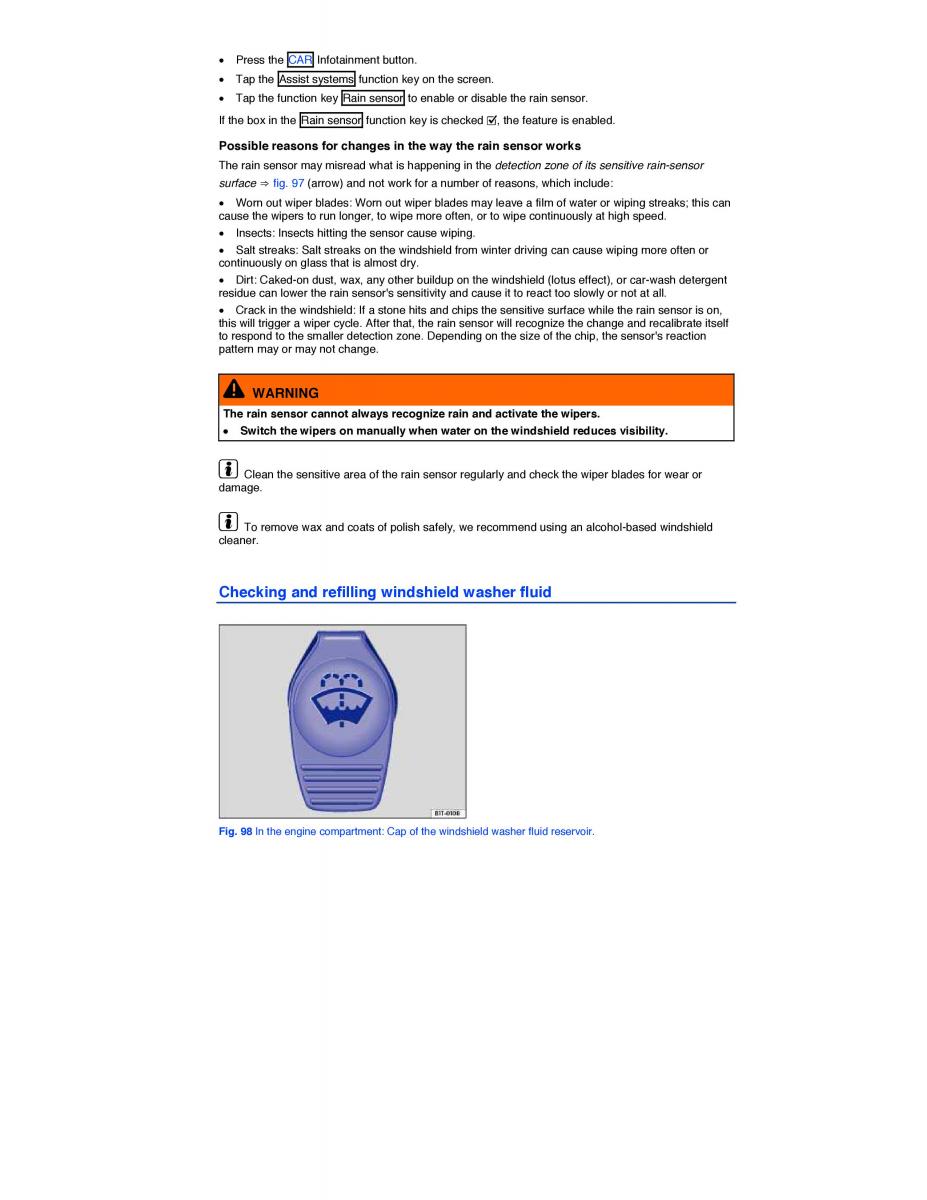

x Press theCAR Infotainment button. x Tap the Assist systems function key on the screen. x Tap the function key Rain sensor to enable or disable the rain sensor. If the box in the Rain sensor function key is checked =, the feature is enabled. Possible reasons for changes in the way the rain sensor works The rain sensor may misread what is happening in the detection zone of its sensitive rain-sensor surface ⇒ fig. 97 (arrow) and not work for a number of reasons, which include: x Worn out wiper blades: Worn out wiper blades may leave a film of water or wiping streaks; this can cause the wipers to run longer, to wipe more often, or to wipe continuously at high speed. x Insects: Insects hitting the sensor cause wiping. x Salt streaks: Salt streaks on the windshield from winter driving can cause wiping more often or continuously on glass that is almost dry. x Dirt: Caked-on dust, wax, any other buildup on the windshield (lotus effect), or car-wash detergent residue can lower the rain sensor's sensitivity and cause it to react too slowly or not at all. x Crack in the windshield: If a stone hits and chips the sensitive surface while the rain sensor is n,o this will trigger a wiper cycle. After that, the rain sensor will recognize the change and recalibrate itself to respond to the smaller detection zone. Depending on the size of the chip, the sensor's reaction pattern may or may not change. WARNING The rain sensor cannot always recognize rain and activate the wipers. x Switch the wipers on manually when water on the windshield reduces visibility. Clean the sensitive area of the rain sensor regularly and check the wiper blades for wear or damage. To remove wax and coats of polish safely, we recommend using an alcohol-based windshield cleaner. Checking and refilling windshield washer fluid Fig. 98 In the engine compartment: Cap of the windshield washer fluid reservoir.
