VW Touareg II 2 owners manual page 131

text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

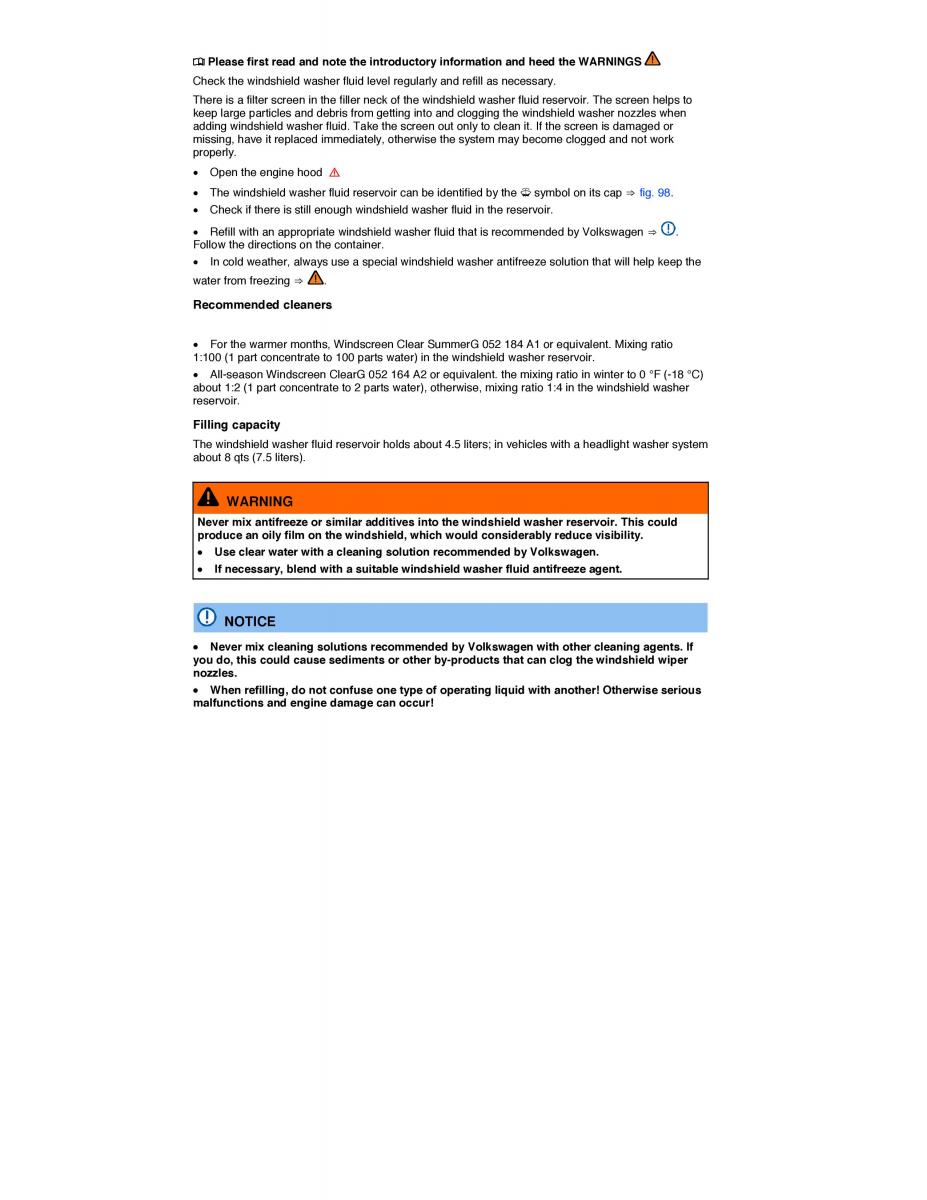

¤ Please first read and note the introductory information and heed the WARNINGS Check the windshield washer fluid level regularly and refill as necessary. There is a filter screen in the filler neck of the windshield washer fluid reservoir. The screen helps to keep large particles and debris from getting into and clogging the windshield washer nozzles when adding windshield washer fluid. Take the screen out only to clean it. If the screen is damaged or missing, have it replaced immediately, otherwise the system may become clogged and not work properly. x Open the engine hood x The windshield washer fluid reservoir can be identified by theY symbol on its cap ⇒ fig. 98. x Check if there is still enough windshield washer fluid in the reservoir. x Refill with an appropriate windshield washer fluid that is recommended by Volkswagen⇒ . Follow the directions on the container. x In cold weather, always use a special windshield washer antifreeze solution that will help kee tphe water from freezing ⇒ . Recommended cleaners x For the warmer months, Windscreen Clear SummerG 052 184 A1 or equivalent. Mixing ratio 1:100 (1 part concentrate to 100 parts water) in the windshield washer reservoir. x All-season Windscreen ClearG 052 164 A2 or equivalent. the mixing ratio in winter to 0 °F (-18 °C) about 1:2 (1 part concentrate to 2 parts water), otherwise, mixing ratio 1:4 in the windshield washer reservoir. Filling capacity The windshield washer fluid reservoir holds about 4.5 liters; in vehicles with a headlight washer system about 8 qts (7.5 liters). WARNING Never mix antifreeze or similar additives into the windshield washer reservoir. This could produce an oily film on the windshield, which would considerably reduce visibility. x Use clear water with a cleaning solution recommended by Volkswagen. x If necessary, blend with a suitable windshield washer fluid antifreeze agent. NOTICE x Never mix cleaning solutions recommended by Volkswagen with other cleaning agents. If you do, this could cause sediments or other by-products that can clog the windshield wiper nozzles. x When refilling, do not confse uone type of operating liquid with another! Otherwise serious malfunctions and engine damage can occur!
