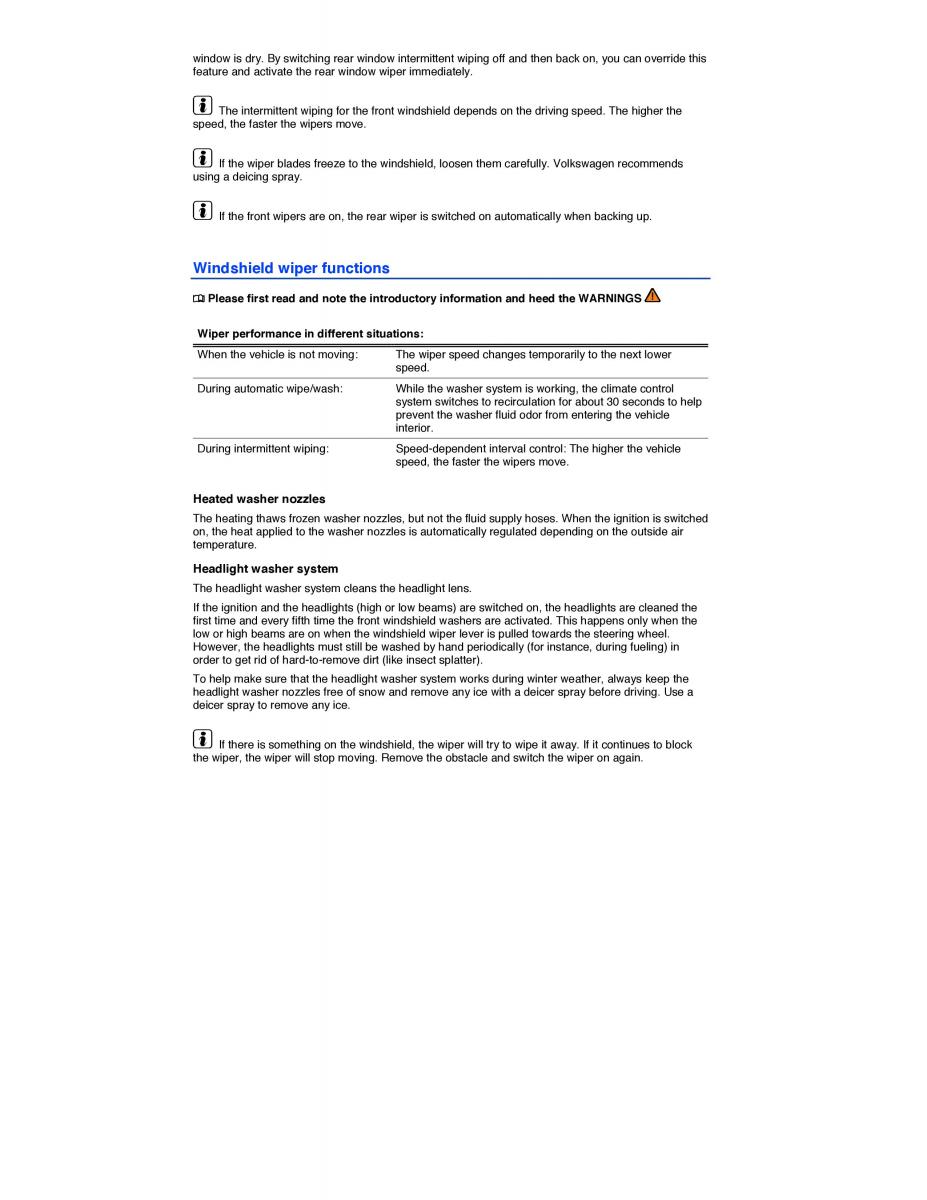

window is dry. By switching rear window intermittent wiping off and then back on, you can override this
feature and activate the rear window wiper immediately.
The intermittent wiping for the front windshield depends on the driving speed. The higher the
speed, the faster the wipers move.
If the wiper blades freeze to the windshield, loosen them carefully. Volkswagen recommends
using a deicing spray.
If the front wipers are on, the rear wiper is switched on automatically when backing up.
Windshield wiper functions
¤ Please first read and note the introductory information and heed the WARNINGS
Wiper performance in different situations:
When the vehicle is not moving: The wiper speed changes temporarily to the next lower
speed.
During automatic wipe/wash: While the washer system is working, the climate control
system switches to recirculation for about 30 seconds to help
prevent the washer fluid odor from entering the vehicle
interior.
During intermittent wiping: Speed-dependent interval control: The higher the vehicle
speed, the faster the wipers move.
Heated washer nozzles
The heating thaws frozen washer nozzles, but not the fluid supply hoses. When the ignition is switched
on, the heat applied to the washer nozzles is automatically regulated depending on the outside air
temperature.
Headlight washer system
The headlight washer system cleans the headlight lens.
If the ignition and the headlights (high or low beams) are switched on, the headlights are cleaned the
first time and every fifth time the front windshield washers are activated. This happens only when the
low or high beams are on when the windshield wiper lever is pulled towards the steering wheel.
However, the headlights must still be washed by hand periodically (for instance, during fueling) in
order to get rid of hard-to-remove dirt (like insect splatter).
To help make sure that the headlight washer system works during winter weather, always keep the
headlight washer nozzles free of snow and remove any ice with a deicer spray before driving. Use a
deicer spray to remove any ice.
If there is something on the windshield, the wiper will try to wipe it away. If it continues to block
the wiper, the wiper will stop moving. Remove the obstacle and switch the wiper on again.
