text version of content this owner's manual page from owners manual to the vehicle Fiat Barchetta, year of production 1995 - 2005:

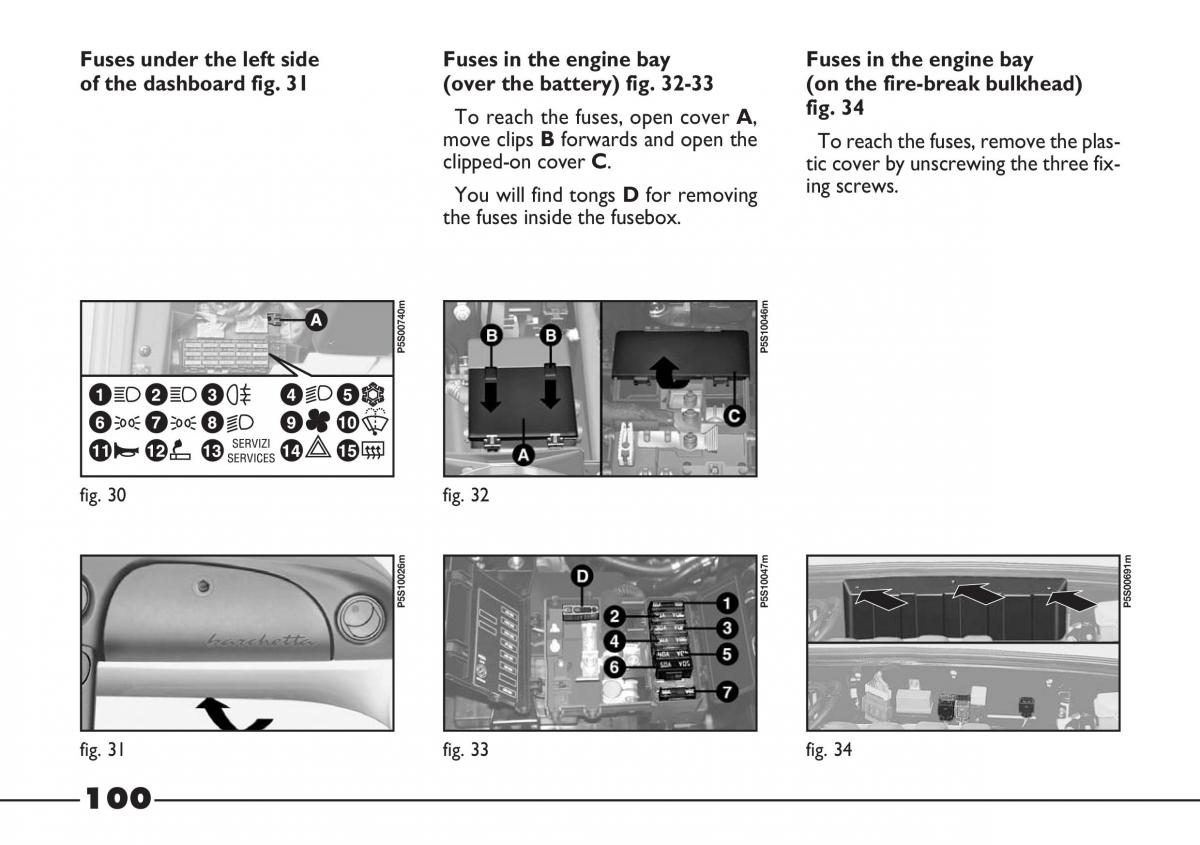

Fuses under the left side Fuses in the engine bay Fuses in the engine bay of the dashboard fig. 31 (over the battery) fig. 32-33 (on the fire-break bulkhead) fig. 34 To reach the fuses, open cover A, move clips B forwards and open the To reach the fuses, remove the plas- clipped-on cover C. tic cover by unscrewing the three fix- You will find tongs D for removing ing screws. the fuses inside the fusebox. P5S00740m P5S10046m fig. 30 fig. 32 P5S10026m P5S10047m P5S00691m fig. 31 fig. 33 fig. 34 100
