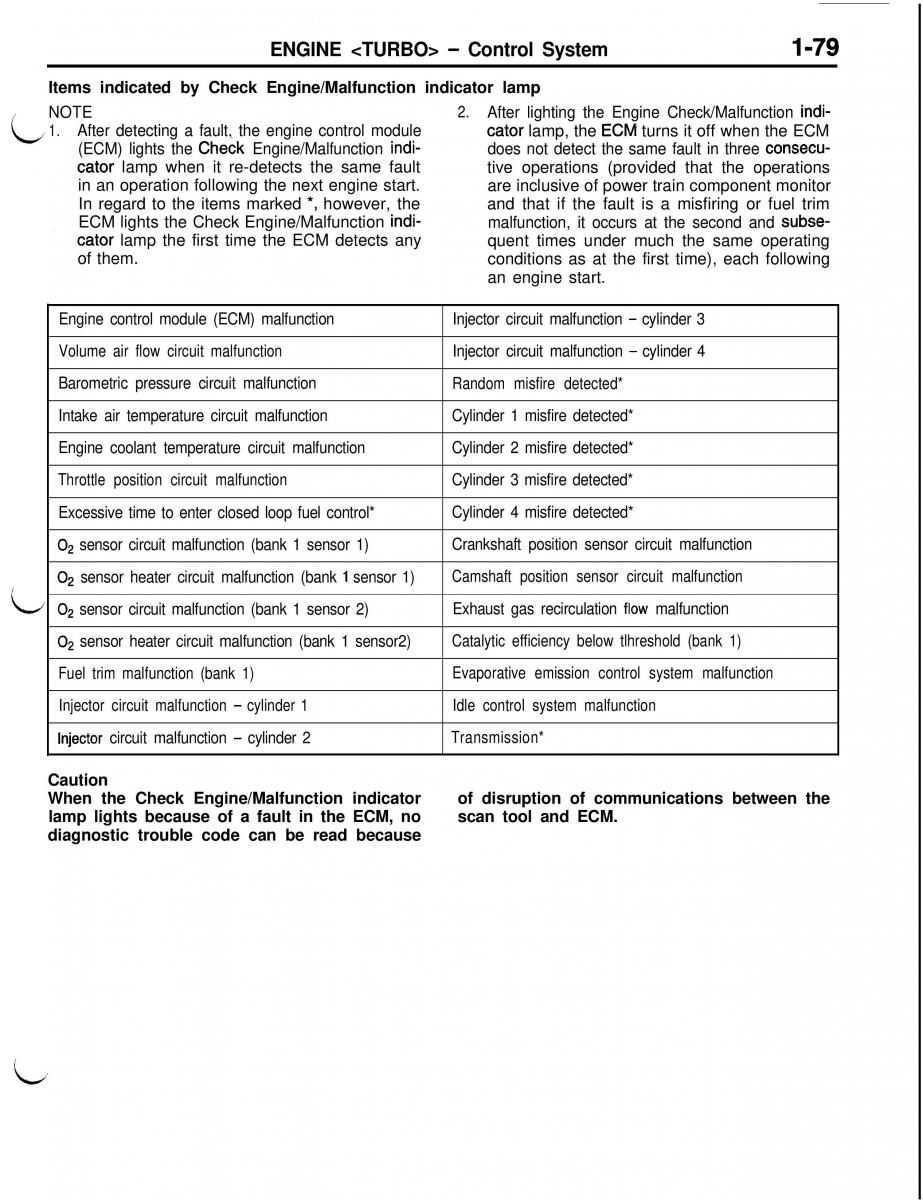

ENGINE - Control System l-79 Items indicated by Check Engine/Malfunction indicator lamp NOTE 2. After lighting the Engine Check/Malfunctionindi- 1.After detecting a fault, the engine control module L cator lamp, the ECfvI turns it off when the ECM (ECM) lights theCheck Engine/Malfunctionindi- does not detect the same fault in threeconsecu- cator lamp when it re-detects the same fault tive operations (provided that the operations in an operation following the next engine start. are inclusive of power train component monitor In regard to the items marked*, however, the and that if the fault is a misfiring or fuel trim ECM lights the Check Engine/Malfunction indi- malfunction, it occurs at the second andsubse- cator lamp the first time the ECM detects any quent times under much the same operating of them. conditions as at the first time), each following an engine start. Engine control module (ECM) malfunctionInjector circuit malfunction ‘- cylinder 3 Volume air flow circuit malfunctionInjector circuit malfunction .- cylinder 4 Barometric pressure circuit malfunctionRandom misfire detected* Intake air temperature circuit malfunctionCylinder 1 misfire detected* Engine coolant temperature circuit malfunctionCylinder 2 misfire detected* Throttle position circuit malfunctionCylinder 3 misfire detected* Excessive time to enter closed loop fuel control*Cylinder 4 misfire detected* Crankshaft position sensor circuit malfunction O2 sensor circuit malfunction (bank 1 sensor 1) Camshaft position sensor circuit malfunction O2 sensor heater circuit malfunction (bank1 sensor 1) / L Exhaust gas recirculationfllow malfunction O2 sensor circuit malfunction (bank 1 sensor 2) Catalytic efficiency below tlhreshold (bank 1) 02 sensor heater circuit malfunction (bank 1 sensor2) Fuel trim malfunction (bank 1) Evaporative emission control system malfunction Injector circuit malfunction- cylinder 1 Idle control system malfunction injector circuit malfunction- cylinder 2Transmission* Caution When the Check Engine/Malfunction indicatorof disruption of communications between the lamp lights because of a fault in the ECM, noscan tool and ECM. diagnostic trouble code can be read because
