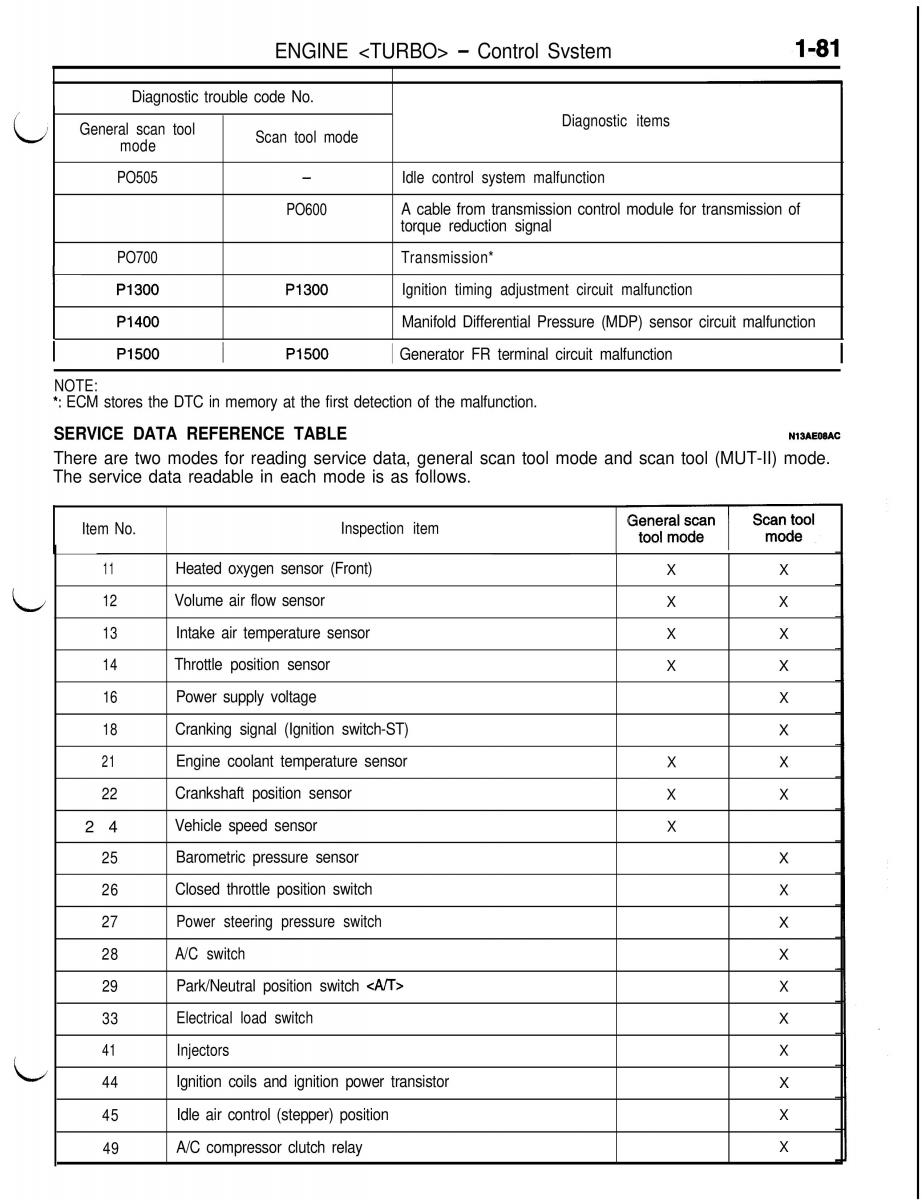

text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Eclipse, year of production 1995 - 1999:

ENGINE - Control Svstem / Diagnostic trouble code No. General scan tool Scan tool mode Diagnostic items ii mode PO505 - Idle control system malfunction PO600 A cable from transmission control module for transmission of torque reduction signal PO700 Transmission* P1300 P1300 Ignition timing adjustment circuit malfunction P1400 Manifold Differential Pressure (MDP) sensor circuit malfunction 1 Generator FR terminal circuit malfunction NOTE: *: ECM stores the DTC in memory at the first detection of the malfunction. SERVICE DATA REFERENCE TABLE N13AEWAC There are two modes for reading service data, general scan tool mode and scan tool (MUT-II) mode. The service data readable in each mode is as follows. Item No. Inspection item 11 Heated oxygen sensor (Front) X X L 12 Volume air flow sensor X X 13 Intake air temperature sensor X X 14 Throttle position sensor X X 16 Power supply voltage X 18 Cranking signal (Ignition switch-ST) X 21 Engine coolant temperature sensor X X 22 Crankshaft position sensor X X 24 Vehicle speed sensor X 25 Barometric pressure sensor X 26 Closed throttle position switch X 27 Power steering pressure switch X 28 A/C switch X 29 Park/Neutral position switch X 33 Electrical load switch X L 41 Injectors X 44 Ignition coils and ignition power transistor X 45 Idle air control (stepper) position X 49 A/C compressor clutch relay X
