text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147 GTA, year of production 2000 - 2010:

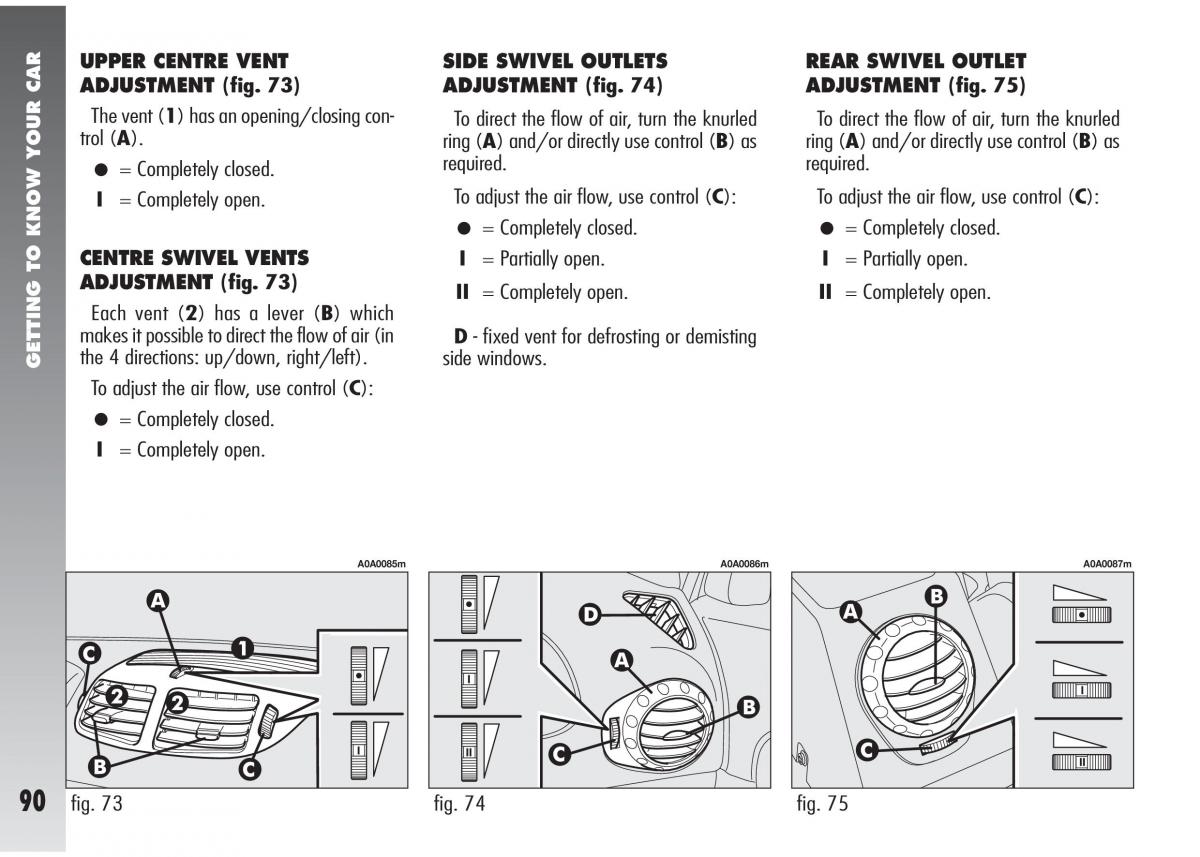

UPPER CENTRE VENT SIDE SWIVEL OUTLETS REAR SWIVEL OUTLET ADJUSTMENT (fig. 73) ADJUSTMENT (fig. 74) ADJUSTMENT (fig. 75) The vent (1) has an opening/closing con- To direct the flow of air, turn the knurled To direct the flow of air, turn the knurled trol (A). ring (A) and/or directly use control (B) as ring (A) and/or directly use control (B) as •=Completely closed. required. required. I =Completely open. To adjust the air flow, use control (C): To adjust the air flow, use control (C): •=Completely closed. •=Completely closed. CENTRE SWIVEL VENTS I =Partially open. I =Partially open. ADJUSTMENT (fig. 73) II =Completely open. II =Completely open. Each vent (2) has a lever (B) which makes it possible to direct the flow of air (in D- fixed vent for defrosting or demisting the 4 directions: up/down, right/left). side windows. GETTING TO KNOW YOUR CAR To adjust the air flow, use control (C): •=Completely closed. I =Completely open. A0A0085m A0A0086m A0A0087m 90 fig. 73 fig. 74 fig. 75
