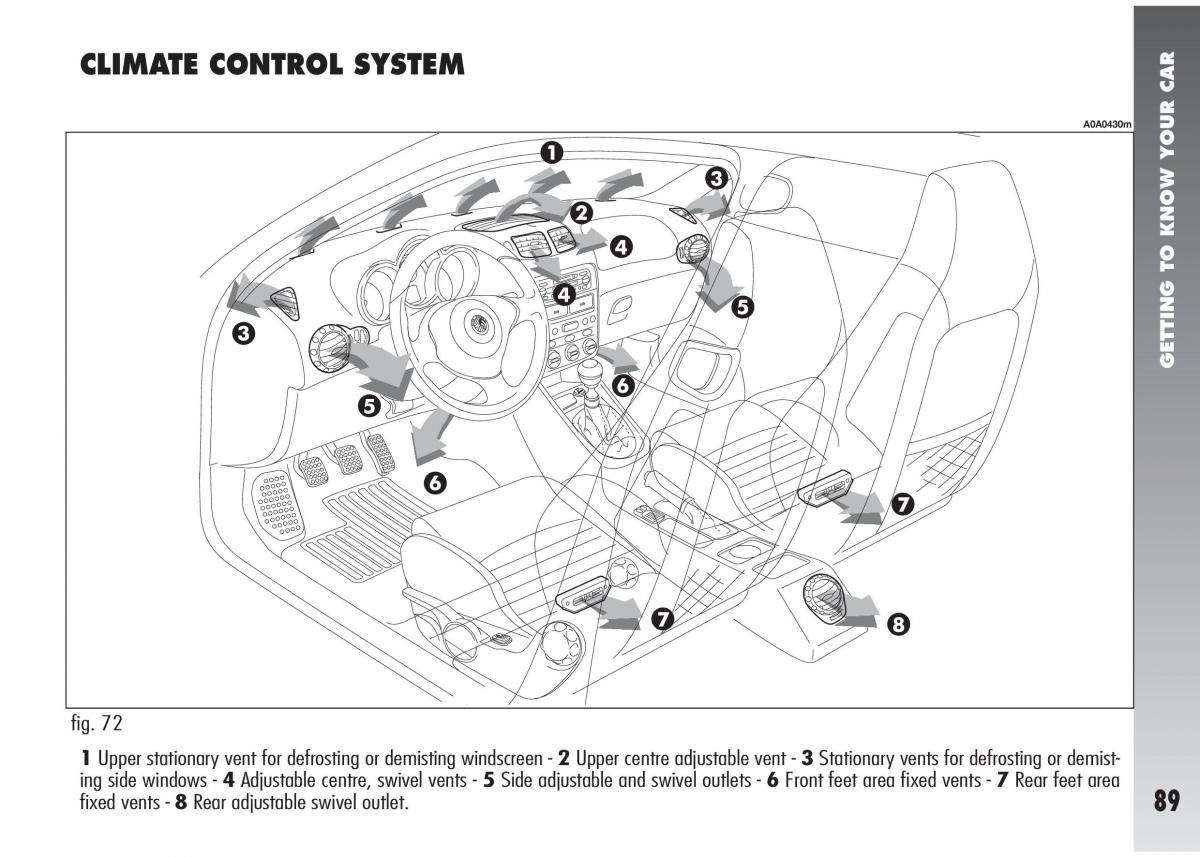

CLIMATE CONTROL SYSTEM
A0A0430m
GETTING TO KNOW YOUR CAR
fig. 72
1Upper stationary vent for defrosting or demisting windscreen - 2Upper centre adjustable vent - 3Stationary vents for defrosting or demist-
ing side windows - 4 Adjustable centre, swivel vents - 5Side adjustable and swivel outlets - 6Front feet area fixed vents - 7Rear feet area
fixed vents - 8 Rear adjustable swivel outlet. 89
