text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147 GTA, year of production 2000 - 2010:

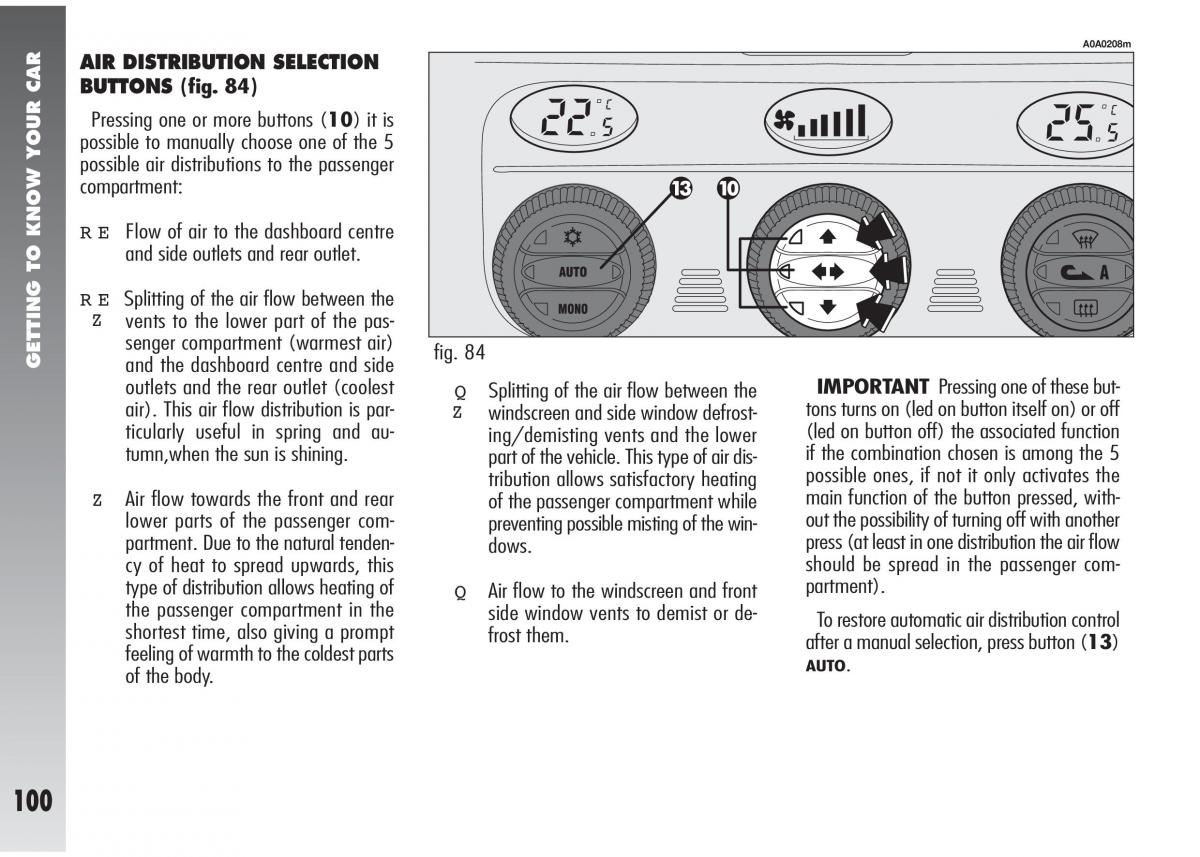

A0A0208m AIR DISTRIBUTION SELECTION BUTTONS (fig. 84) Pressing one or more buttons (10) it is possible to manually choose one of the 5 possible air distributions to the passenger compartment: REFlow of air to the dashboard centre and side outlets and rear outlet. RESplitting of the air flow between the Z vents to the lower part of the pas- senger compartment (warmest air) fig. 84 GETTING TO KNOW YOUR CARand the dashboard centre and side outlets and the rear outlet (coolest IMPORTANT Pressing one of these but- Q Splitting of the air flow between the tons turns on (led on button itself on) or off air). This air flow distribution is par- Z windscreen and side window defrost- (led on button off) the associated function ticularly useful in spring and au- ing/demisting vents and the lower tumn,when the sun is shining. part of the vehicle. This type of air dis-if the combination chosen is among the 5 tribution allows satisfactory heating possible ones, if not it only activates the Z Air flow towards the front and rear main function of the button pressed, with- of the passenger compartment while lower parts of the passenger com- out the possibility of turning off with another preventing possible misting of the win- partment. Due to the natural tenden- dows. press (at least in one distribution the air flow cy of heat to spread upwards, this should be spread in the passenger com- type of distribution allows heating of Q Air flow to the windscreen and front partment). the passenger compartment in the side window vents to demist or de- shortest time, also giving a prompt To restore automatic air distribution control frost them. after a manual selection, press button (13) feeling of warmth to the coldest parts AUTO. of the body. 100
