text version of content this owner's manual page from owners manual to the vehicle Fiat Barchetta, year of production 1995 - 2005:

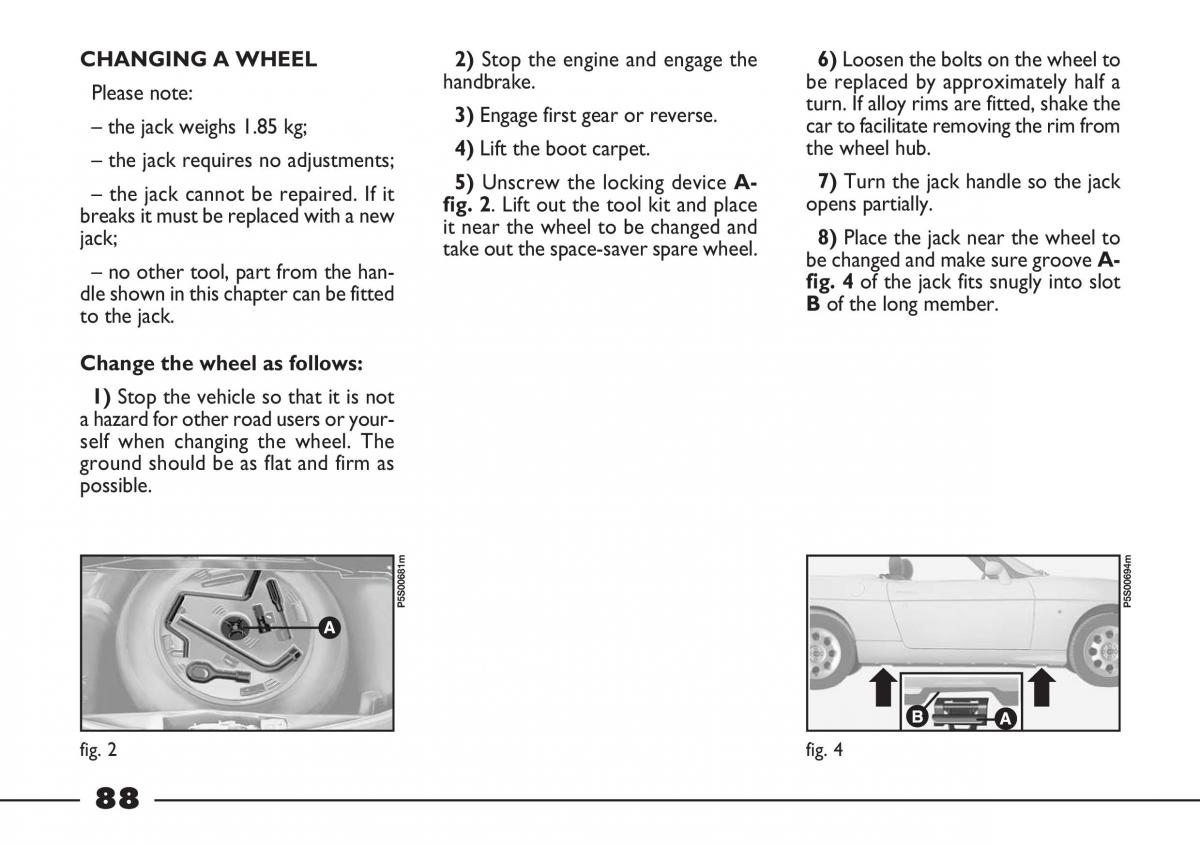

CHANGING A WHEEL 2) Stop the engine and engage the6)Loosen the bolts on the wheel to Please note: handbrake. be replaced by approximately half a 3) Engage first gear or reverse. turn. If alloy rims are fitted, shake the – the jack weighs 1.85 kg; car to facilitate removing the rim from 4) Lift the boot carpet. the wheel hub. – the jack requires no adjustments; 7) Turn the jack handle so the jack 5) Unscrew the locking device A- – the jack cannot be repaired. If it opens partially. breaks it must be replaced with a new fig. 2. Lift out the tool kit and place it near the wheel to be changed and jack; take out the space-saver spare wheel. 8) Place the jack near the wheel to – no other tool, part from the han- be changed and make sure groove A- dle shown in this chapter can be fitted fig. 4 of the jack fits snugly into slot to the jack. Bof the long member. Change the wheel as follows: 1) Stop the vehicle so that it is not a hazard for other road users or your- self when changing the wheel. The ground should be as flat and firm as possible. P5S00681m P5S00694m fig. 2 fig. 4 88
