owners manual Skoda Yeti

all ratings: 0 average rating: 5

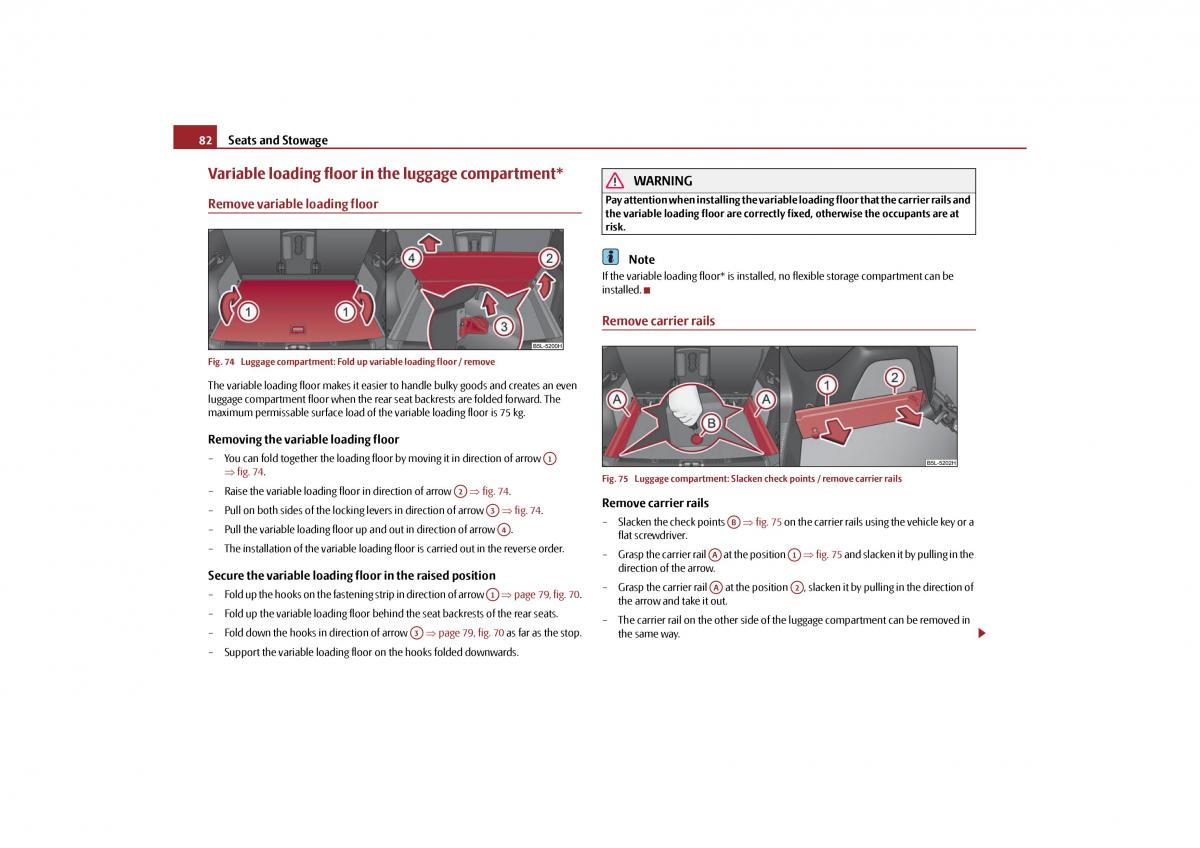

s2ug.6.book Page 82 Friday, April 9, 2010 2:24 PM 82 Seats and Stowage Variable loading floor in the luggage compartment* WARNING Remove variable loading floor Pay attention when installing the variable loading floor that the carrier rails and the variable loading floor are correctly fixed, otherwise the occupants are at risk. Note If the variable loading floor* is installed, no flexible storage compartment can be installed. Remove carrier rails Fig. 74 Luggage compartment: Fold up variable loading floor / remove The variable loading floor makes it easier to handle bulky goods and creates an even luggage compartment floor when the rear seat backrests are folded forward. The maximum permissable surface load of the variable loading floor is 75 kg. Removing the variable loading floor – You can fold together the loading floor by moving it in direction of arrow A 1 fig.74. Fig. 75 Luggage compartment: Slacken check points / remove carrier rails – Raise the variable loading floor in direction of arrow 2  fig. 74. A – Pull on both sides of the locking levers in direction of arrow 3  fig. 74. Remove carrier rails A – Slacken the check points A B  fig. 75 on the carrier rails using the vehicle key or a – Pull the variable loading floor up and out in direction of arrow A 4 . flat screwdriver. – The installation of the variable loading floor is carried out in the reverse order. – Grasp the carrier rail A A at the position A 1  fig. 75 and slacken it by pulling in the Secure the variable loading floor in the raised position direction of the arrow. – Grasp the carrier rail A A at the position A 2 , slacken it by pulling in the direction of – Fold up the hooks on the fastening strip in direction of arrow A 1 page79, fig.70. the arrow and take it out. – Fold up the variable loading floor behind the seat backrests of the rear seats. – The carrier rail on the other side of the luggage compartment can be removed in – Fold down the hooks in direction of arrow A 3  page 79, fig. 70 as far as the stop. the same way. – Support the variable loading floor on the hooks folded downwards.
