owners manual Skoda Yeti

all ratings: 0 average rating: 5

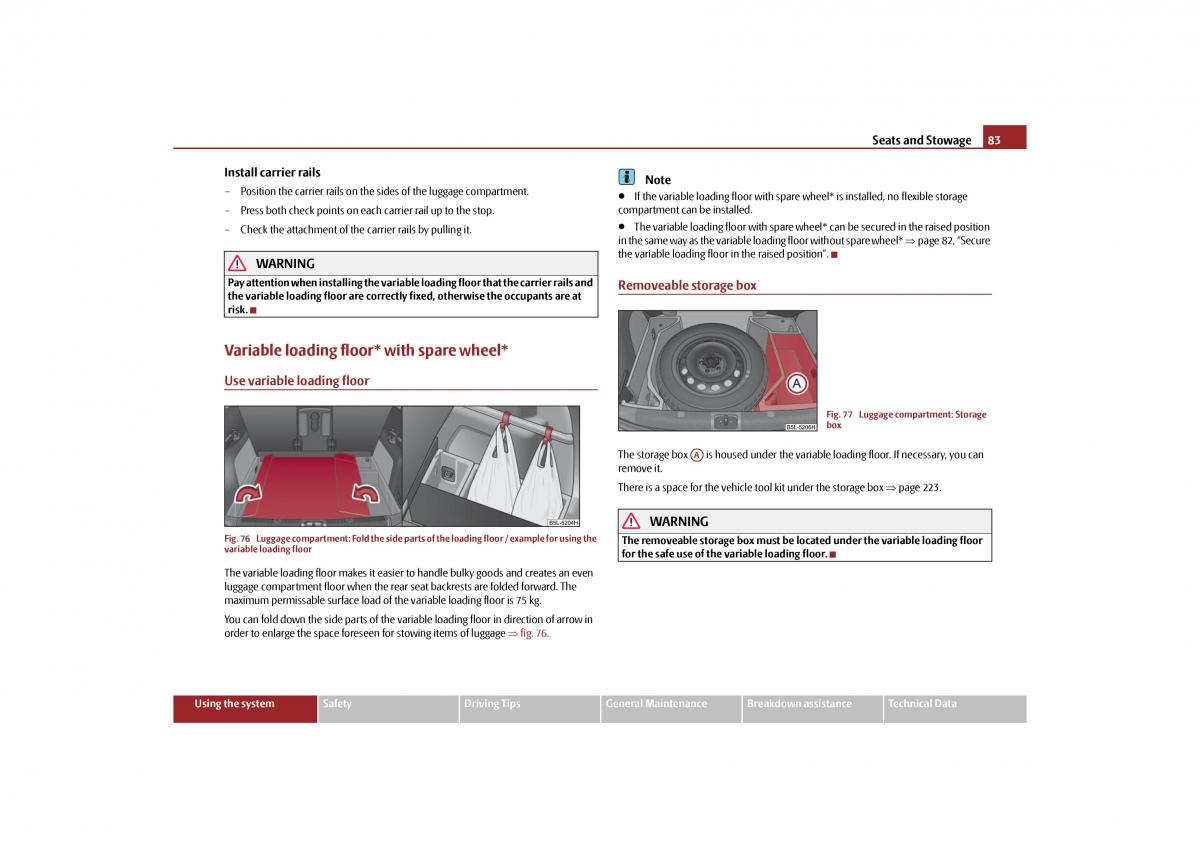

s2ug.6.book Page 83 Friday, April 9, 2010 2:24 PM Seats and Stowage83 Install carrier rails Note – Position the carrier rails on the sides of the luggage compartment. If the variable loading floor with spare wheel* is installed, no flexible storage – Press both check points on each carrier rail up to the stop.compartment can be installed. – Check the attachment of the carrier rails by pulling it. The variable loading floor with spare wheel* can be secured in the raised position in the same way as the variable loading floor without spare wheel* page82, “Secure WARNING the variable loading floor in the raised position”. Pay attention when installing the variable loading floor that the carrier rails and Removeable storage box the variable loading floor are correctly fixed, otherwise the occupants are at risk. Variable loading floor* with spare wheel* Use variable loading floor Fig. 77 Luggage compartment: Storage box The storage box A A is housed under the variable loading floor. If necessary, you can remove it. There is a space for the vehicle tool kit under the storage box  page 223. WARNING Fig. 76 Luggage compartment: Fold the side parts of the loading floor / example for using the The removeable storage box must be located under the variable loading floor variable loading floor for the safe use of the variable loading floor. The variable loading floor makes it easier to handle bulky goods and creates an even luggage compartment floor when the rear seat backrests are folded forward. The maximum permissable surface load of the variable loading floor is 75 kg. You can fold down the side parts of the variable loading floor in direction of arrow in order to enlarge the space foreseen for stowing items of luggage  fig. 76. Using the systemSafety Driving Tips General MaintenanceBreakdown assistanceTechnical Data
