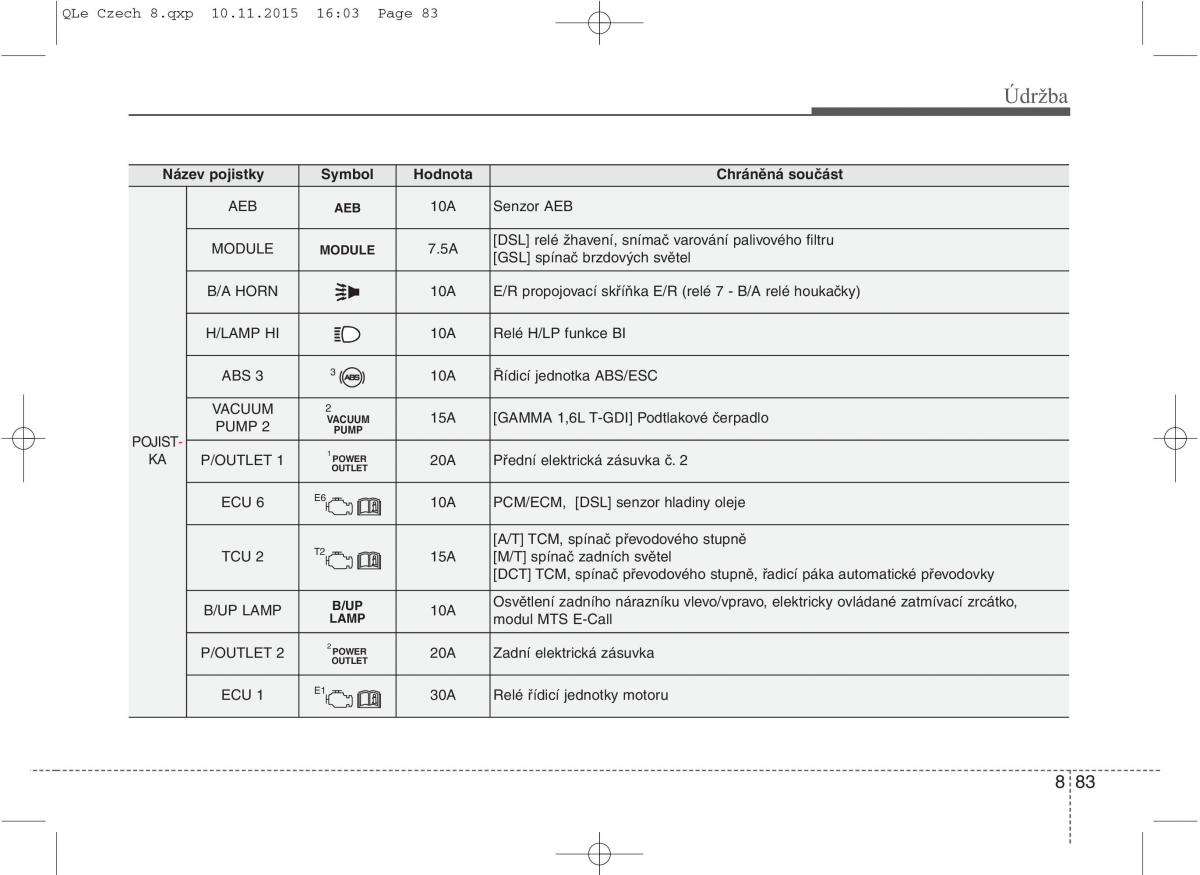

QLe Czech 8.qxp 10.11.2015 16:03 Page 83
Údržba
Název pojistky Symbol Hodnota Chráněná součást
AEB AEB 10A Senzor AEB
MODULE 7.5A [DSL] relé žhavení, snímač varování palivového filtru
MODULE [GSL] spínač brzdových světel
B/A HORN 10A E/R propojovací skříňka E/R (relé 7 - B/A relé houkačky)
H/LAMP HI 10A Relé H/LP funkce BI
ABS 3 3 10A Řídicí jednotka ABS/ESC
VACUUM 2 15A [GAMMA 1,6L T-GDI] Podtlakové čerpadlo
PUMP 2 VACUUM
PUMP
POJIST -
1
KA P/OUTLET 1 POWER 20A Přední elektrická zásuvka č. 2
OUTLET
ECU 6 E6 10A PCM/ECM, [DSL] senzor hladiny oleje
[A/T] TCM, spínač převodového stupně
TCU 2 T2 15A [M/T] spínač zadních světel
[DCT] TCM, spínač převodového stupně, řadicí páka automatické převodovky
B/UP LAMP B/UP 10A Osvětlení zadního nárazníku vlevo/vpravo, elektricky ovládané zatmívací zrcátko,
LAMP modul MTS E-Call
2
P/OUTLET 2 POWER 20A Zadní elektrická zásuvka
OUTLET
ECU 1 E1 30A Relé řídicí jednotky motoru
883
