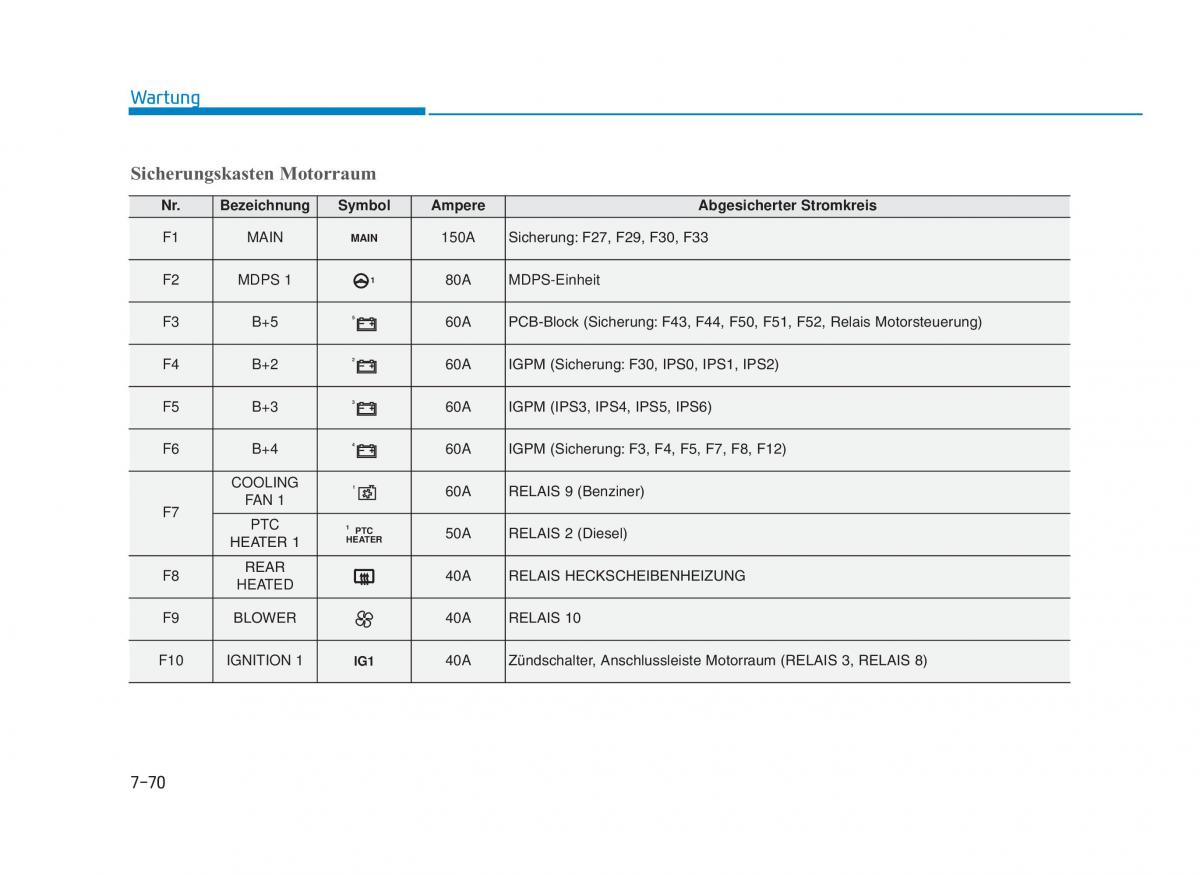

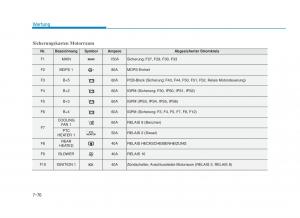

PDe GER 7.qxp 17.04.2017 17:28 Page 70
Wartung
Sicherungskasten Motorraum
Nr. Bezeichnung Symbol Ampere Abgesicherter Stromkreis
F1 MAIN MAIN 150A Sicherung:F27, F29, F30, F33
F2 MDPS 1 1 80A MDPS-Einheit
F3 B+5 5 60A k PCB-Bloc(Sicherung:F43, F44, F50, F51, F52, Relais Motorsteuerung)
F4 B+2 2 60A IGPM (Sicherung:F30, IPS0, IPS1, IPS2)
F5 B+3 3 60A IGPM (IPS3, IPS4, IPS5, IPS6)
F6 B+4 4 60A IGPM (Sicherung:F3, F4, F5, F7, F8, F12)
COOLING 1 60A RELAIS 9 (Benziner)
F7 FAN 1
PTC 1 PTC 50A RELAIS 2 (Diesel)
TER 1HEA HEATER
F8 REAR 40A RELAIS HECKSCHEIBENHEIZUNG
HEATED
F9 WERBLO 40A RELAIS 10
F10 IGNITION 1 IG1 40A , Anschlussleiste Zündschalteraum Motorr(RELAIS 3, RELAIS 8)
7-70
