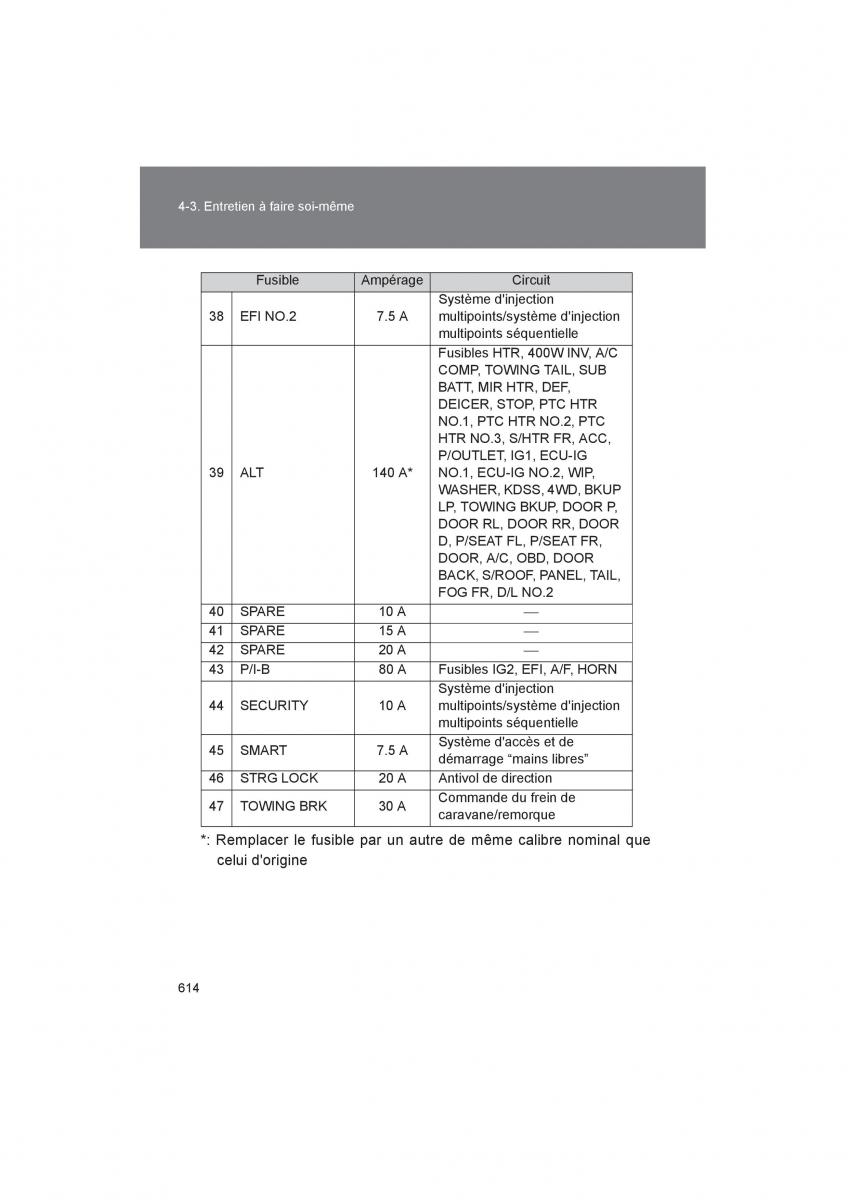

4-3. Entretien à faire soi-même
Fusible Ampérage Circuit
Système d'injection
38 EFI NO.2 7.5 A multipoints/système d'injection
multipoints séquentielle
Fusibles HTR, 400W INV, A/C
COMP, TOWING TAIL, SUB
BATT, MIR HTR, DEF,
DEICER, STOP, PTC HTR
NO.1, PTC HTR NO.2, PTC
HTR NO.3, S/HTR FR, ACC,
P/OUTLET, IG1, ECU-IG
39 ALT 140 A* NO.1, ECU-IG NO.2, WIP,
WASHER, KDSS, 4WD, BKUP
LP, TOWING BKUP, DOOR P,
DOOR RL, DOOR RR, DOOR
D, P/SEAT FL, P/SEAT FR,
DOOR, A/C, OBD, DOOR
BACK, S/ROOF, PANEL, TAIL,
FOG FR, D/L NO.2
40 SPARE 10 A
41 SPARE 15 A
42 SPARE 20 A
43 P/I-B 80 A Fusibles IG2, EFI, A/F, HORN
Système d'injection
44 SECURITY 10 A multipoints/système d'injection
multipoints séquentielle
45 SMART 7.5 A Système d'accès et de
démarrage “mains libres”
46 STRG LOCK 20 A Antivol de direction
47 TOWING BRK 30 A Commande du frein de
caravane/remorque
*: Remplacer le fusible par un autre de même calibre nominal que
celui d'origine
