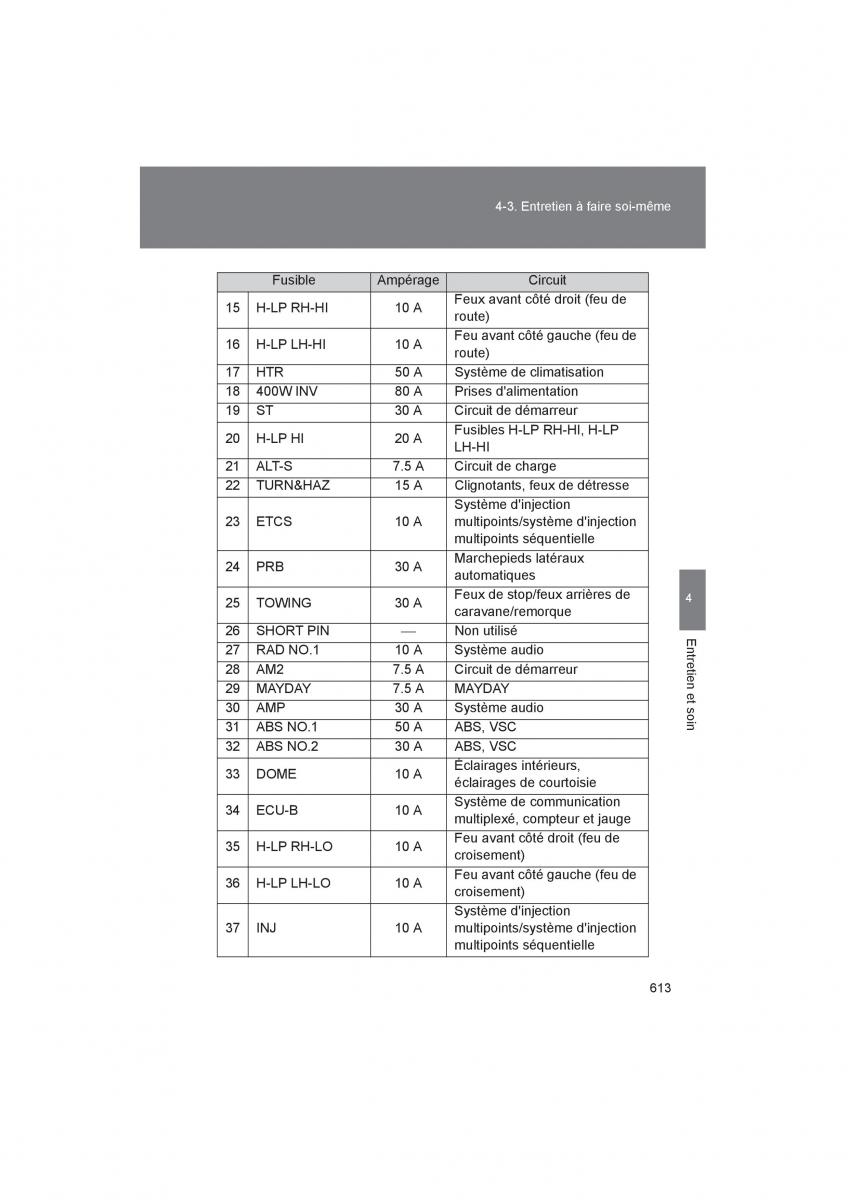

4-3. Entretien à faire soi-même
Fusible Ampérage Circuit
15 H-LP RH-HI 10 A Feux avant côté droit (feu de
route)
16 H-LP LH-HI 10 A Feu avant côté gauche (feu de
route)
17 HTR 50 A Système de climatisation
18 400W INV 80 A Prises d'alimentation
19 ST 30 A Circuit de démarreur
20 H-LP HI 20 A Fusibles H-LP RH-HI, H-LP
LH-HI
21 ALT-S 7.5 A Circuit de charge
22 TURN&HAZ 15 A Clignotants, feux de détresse
Système d'injection
23 ETCS 10 A multipoints/système d'injection
multipoints séquentielle
24 PRB 30 A Marchepieds latéraux
automatiques
25 TOWING 30 A Feux de stop/feux arrières de 4
caravane/remorque
26 SHORT PIN Non utilisé Ent
27 RAD NO.1 10 A Système audio r
28 AM2 7.5 A Circuit de démarreur eti
29 MAYDAY 7.5 A MAYDAY en et
30 AMP 30 A Système audio s
o
i
31 ABS NO.1 50 A ABS, VSC n
32 ABS NO.2 30 A ABS, VSC
33 DOME 10 A Éclairages intérieurs,
éclairages de courtoisie
34 ECU-B 10 A Système de communication
multiplexé, compteur et jauge
35 H-LP RH-LO 10 A Feu avant côté droit (feu de
croisement)
36 H-LP LH-LO 10 A Feu avant côté gauche (feu de
croisement)
Système d'injection
37 INJ 10 A multipoints/système d'injection
multipoints séquentielle
613
4RUNNER_D
