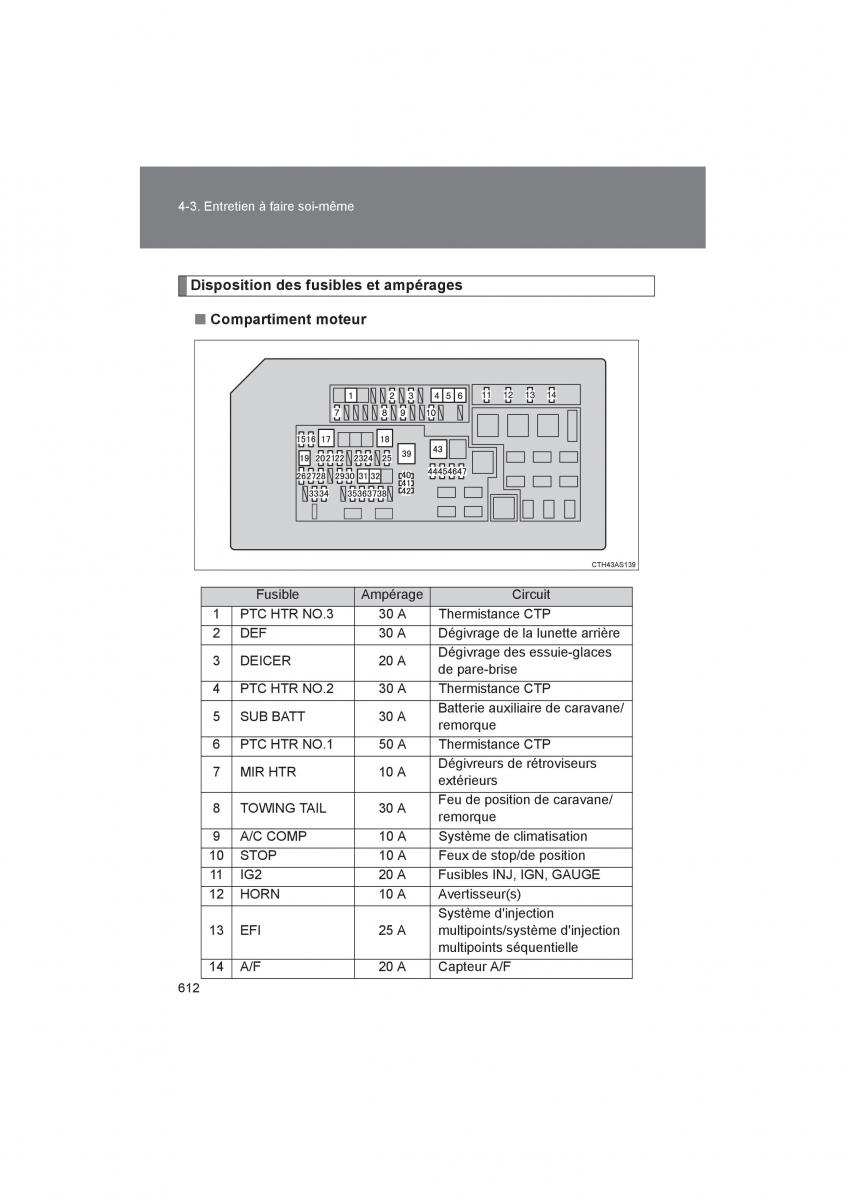

4-3. Entretien à faire soi-même
Disposition des fusibles et ampérages
■Compartiment moteur
CTH43AS139
Fusible Ampérage Circuit
1 PTC HTR NO.3 30 A Thermistance CTP
2 DEF 30 A Dégivrage de la lunette arrière
3 DEICER 20 A Dégivrage des essuie-glaces
de pare-brise
4 PTC HTR NO.2 30 A Thermistance CTP
5 SUB BATT 30 A Batterie auxiliaire de caravane/
remorque
6 PTC HTR NO.1 50 A Thermistance CTP
7 MIR HTR 10 A Dégivreurs de rétroviseurs
extérieurs
8 TOWING TAIL 30 A Feu de position de caravane/
remorque
9 A/C COMP 10 A Système de climatisation
10 STOP 10 A Feux de stop/de position
11 IG2 20 A Fusibles INJ, IGN, GAUGE
12 HORN 10 A Avertisseur(s)
Système d'injection
13 EFI 25 A multipoints/système d'injection
multipoints séquentielle
14 A/F 20 A Capteur A/F
612
4RUNNER_D
