owners manual Toyota Avensis
owners manual Toyota Avensis - year of production: 2015 - Toyota Avensis IV 4 owners manual EN
Document: pdf (41.57 MB) 648 pages
all ratings: 0 average rating: 5
text version of content this owner's manual page from owners manual to the vehicle Toyota Avensis, year of production 2015:

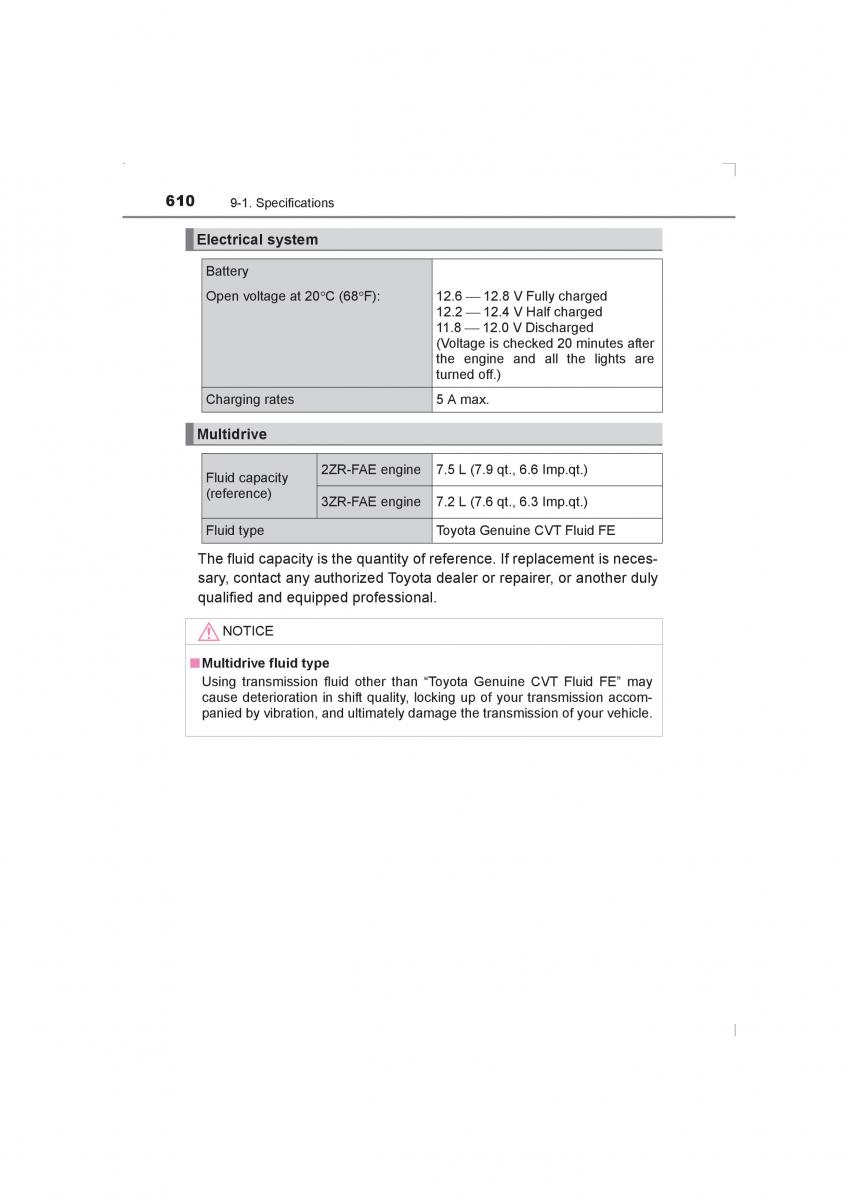

sec_09-01.fm Page 610 Friday, February 20, 2015 3:48 PM
610 9-1. Specifications
Electrical system
Battery
Open voltage at 20°C (68°F):12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11.8 12.0 V Discharged
(Voltage is checked 20 minutes after
the engine and all the lights are
turned off.)
Charging rates 5 A max.
Multidrive
Fluid capacity 2ZR-FAE engine7.5 L (7.9 qt., 6.6 Imp.qt.)
(reference) 3ZR-FAE engine7.2 L (7.6 qt., 6.3 Imp.qt.)
Fluid type Toyota Genuine CVT Fluid FE
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
NOTICE
■Multidrive fluid type
Using transmission fluid other than “Toyota Genuine CVT Fluid FE” may
cause deterioration in shift quality, locking up of your transmission accom-
panied by vibration, and ultimately dam age the transmission of your vehicle.
AVENSIS_OM_OM20C20E_(EE)
