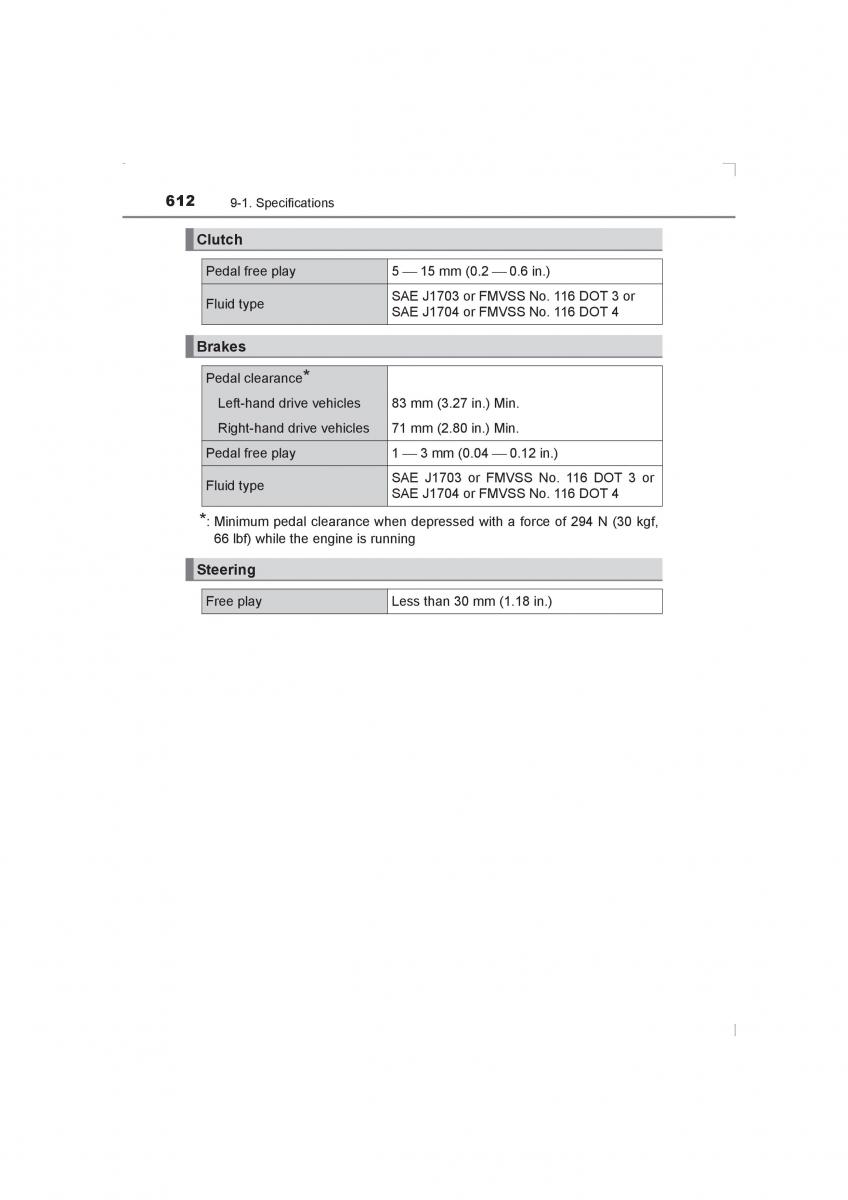

AVENSIS_OM_OM20C20E_(EE).book Page 612 Thursday, January 29, 2015 1:47 PM
612 9-1. Specifications
Clutch
Pedal free play 5 15 mm (0.2 0.6 in.)
Fluid type SAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Brakes
Pedal clearance*
Left-hand drive vehicles83 mm (3.27 in.) Min.
Right-hand drive vehicles71 mm (2.80 in.) Min.
Pedal free play 1 3 mm (0.04 0.12 in.)
Fluid type SAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
*: Minimum pedal clearance when depressed with a force of 294 N (30 kgf,
66 lbf) while the engine is running
Steering
Free play Less than 30 mm (1.18 in.)
