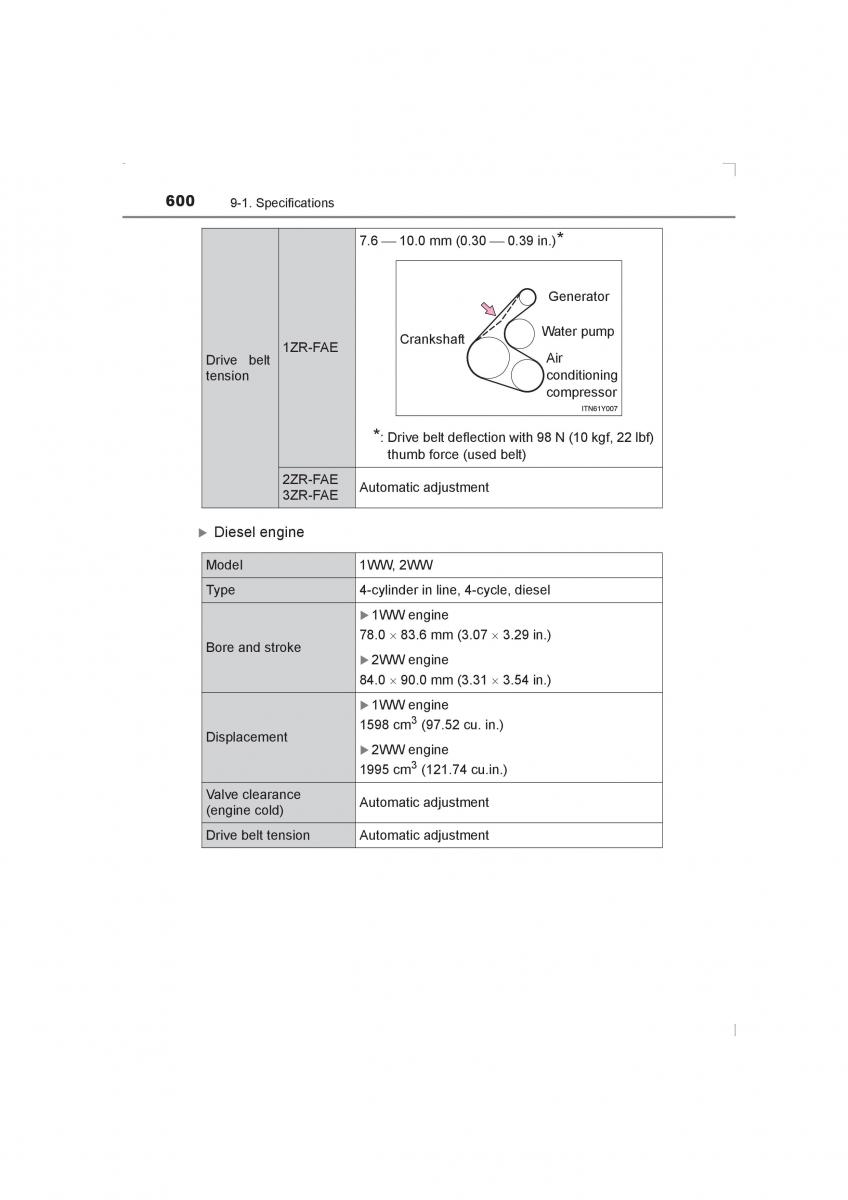

AVENSIS_OM_OM20C20E_(EE).book Page 600 Thursday, January 29, 2015 1:47 PM
600 9-1. Specifications
7.6 10.0 mm (0.30 0.39 in.)*
Generator
Crankshaft Water pump
1ZR-FAE Air
Drive belt
tension conditioning
compressor
*: Drive belt deflection with 98 N (10 kgf, 22 lbf)
thumb force (used belt)
2ZR-FAE Automatic adjustment
3ZR-FAE
X Diesel engine
Model 1WW, 2WW
Type 4-cylinder in line, 4-cycle, diesel
X1WW engine
Bore and stroke 78.0 × 83.6 mm (3.07 × 3.29 in.)
X2WW engine
84.0 × 90.0 mm (3.31 × 3.54 in.)
X1WW engine
3
Displacement 1598 cm (97.52 cu. in.)
X2WW engine
3
1995 cm (121.74 cu.in.)
Valve clearance Automatic adjustment
(engine cold)
Drive belt tension Automatic adjustment
